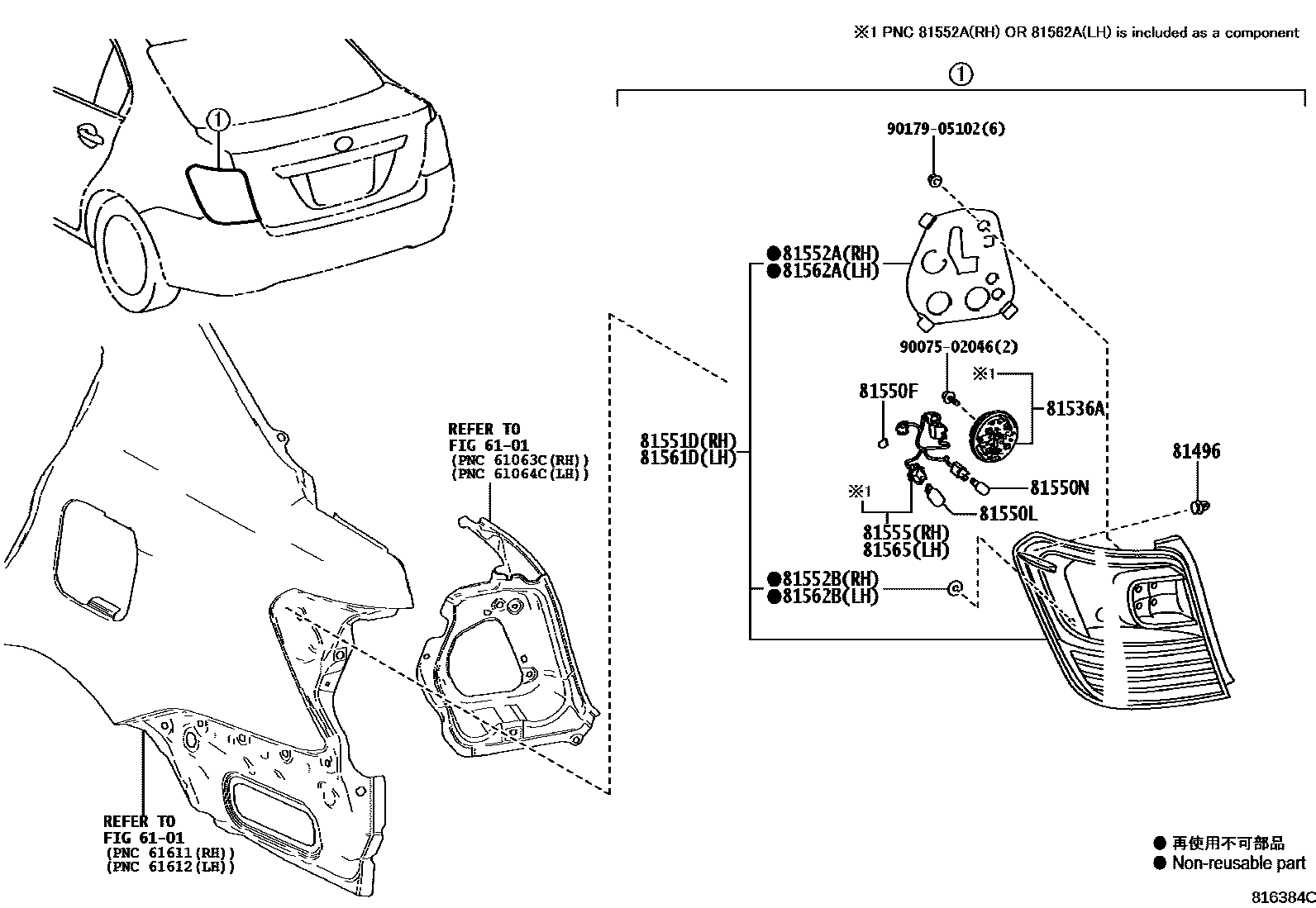

Toyota COROLLA/AXIO — REAR COMBINATION LAMP
6101SIDE MEMBER
81496GUIDE, REAR COMBINATION LAMP
81536ALED, REAR COMBINATION LAMP
81550FBULB, TAILLAMP
12V 5W
12V 5W
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81552BPACKING, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81562BPACKING, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
9007502046
main90075-02046
9017905102
main90179-05102
16 parts on this diagram · 4 diagrams in section
REAR COMBINATION LAMP for Toyota COROLLA/AXIO
This section contains 23 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota COROLLA/AXIO. Key components include: SIDE MEMBER, GUIDE, REAR COMBINATION LAMP, LED, REAR COMBINATION LAMP, BULB, TAILLAMP, BULB, TAIL & STOP LAMP.
