Toyota COROLLA/AXIO — PARTIAL ENGINE ASSEMBLY

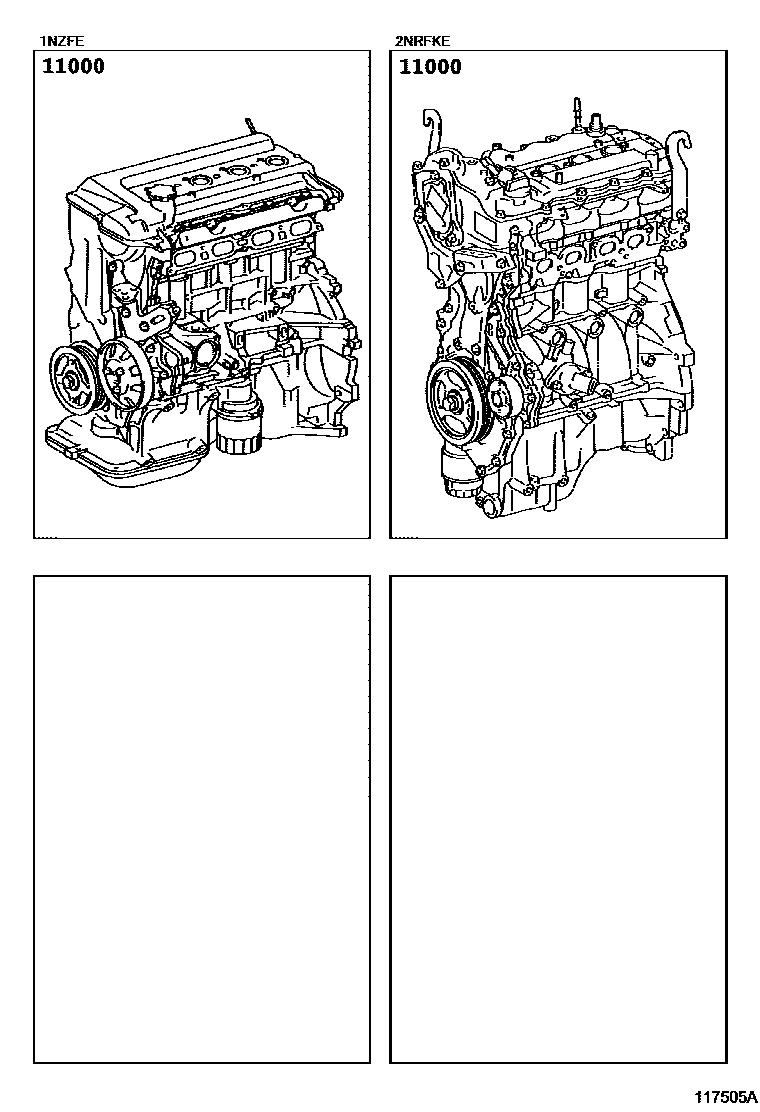

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-21851i201503-201710

main19000-21D30i201206-201208

main19000-21D50i201208-201503

main19000-47450i201503-201505

main19000-47451i201505-201710

main19000-47490i201809-201908

REFER TO PNC 11310

1 parts on this diagram · 1 diagram in section
