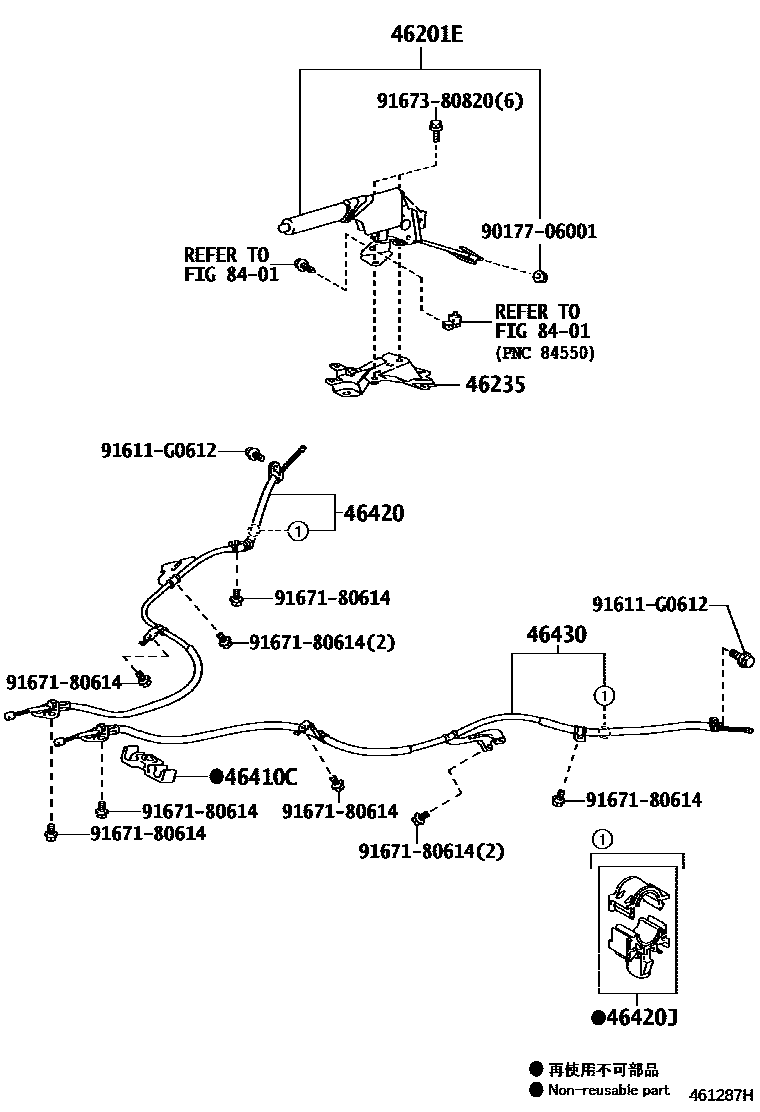

Toyota COROLLA/AXIO — PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12540-C0i201204-201503

BLACK,TRIM2#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-52040i201204-201503

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-52030i201204-201503

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12780i201710-201908

main46420-12790i201503-201710

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030×2i201204-201503

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12670i201212-201503

main46430-12680i201503-201710

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017706001

main90177-06001

91611G0612

main91611-G0612

9167180614

main91671-80614

9167380820

main91673-80820

11 parts on this diagram · 1 diagram in section

PARKING BRAKE & CABLE for Toyota COROLLA/AXIO

This section contains 11 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota COROLLA/AXIO. Key components include: LEVER SUB-ASSY, PARKING BRAKE, BRACKET, PARKING BRAKE LEVER SUPPORT, CLAMP(FOR PARKING BRAKE FRONT CABLE), CABLE ASSY, PARKING BRAKE, NO.2, CLAMP, NO.3(FOR PARKING BRAKE CABLE).
