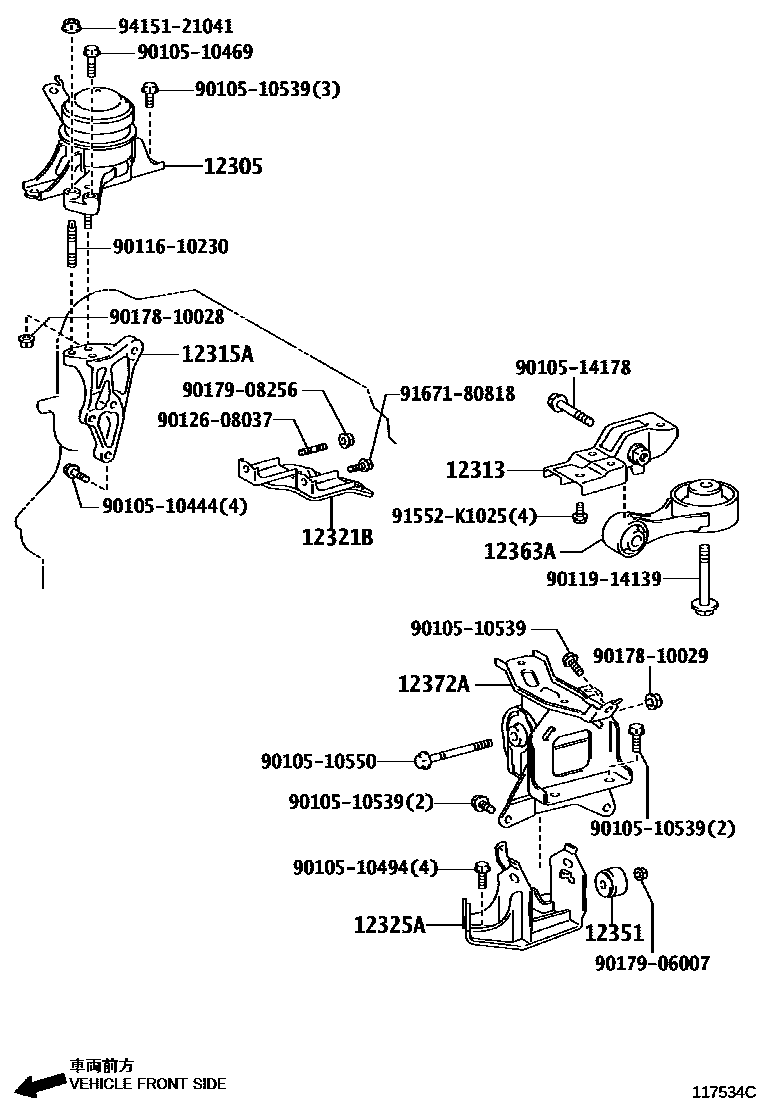

Toyota COROLLA/AXIO — MOUNTING

0001 1 0002 1 0003 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21200i1NZFE..NZE161201710-201908

main12305-21520i1NZFE..NZE161..CVT201206-201503

main12305-47041i2NRFKE..NRE161201503-201710

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-21040i1NZFE..NZE161..5F201204-201503

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-21044i1NZFE..NZE161201204-201503

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-12080i1NZFE..NZE161..CVT201206-201503

main43409-52020i1NZFE..NZE161201710-201908

main43498-12070i2NRFKE..NRE161201503-201710

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-21170i1NZFE..NZE161..CVT201206-201503

main12325-21230i1NZFE..NZE161201710-201908

main12325-47130i2NRFKE..NRE161201710-201908

12351DAMPER, ENGINE MOUNTING

main12351-21090i1NZFE..NZE161201710-201908

12363AROD, ENGINE MOVING CONTROL

main12363-21040i1NZFE..NZE161..5F201204-201503

main12363-21150i1NZFE..NZE161..CVT201206-201404

main12363-21151i2NRFKE..NRE161201710-201908

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-21310i1NZFE..NZE161..CVT201206-201503

main12372-21320i1NZFE..NZE161201503-201710

main12372-47160i2NRFKE..NRE161201710-201908

9010510444

main90105-10444

9010510469

main90105-10469

9010510494

main90105-10494

9010510539

main90105-10539

9010510550

main90105-10550

9010514178

main90105-14178

9011610230

main90116-10230

9011914139

main90119-14139

9012608037

main90126-08037

9017810028

main90178-10028

9017810029

main90178-10029

9017906007

main90179-06007

9017908256

main90179-08256

91552K1025

main91552-K1025

9167180818

main91671-80818

9415121041

main94151-21041

24 parts on this diagram · 3 diagrams in section
