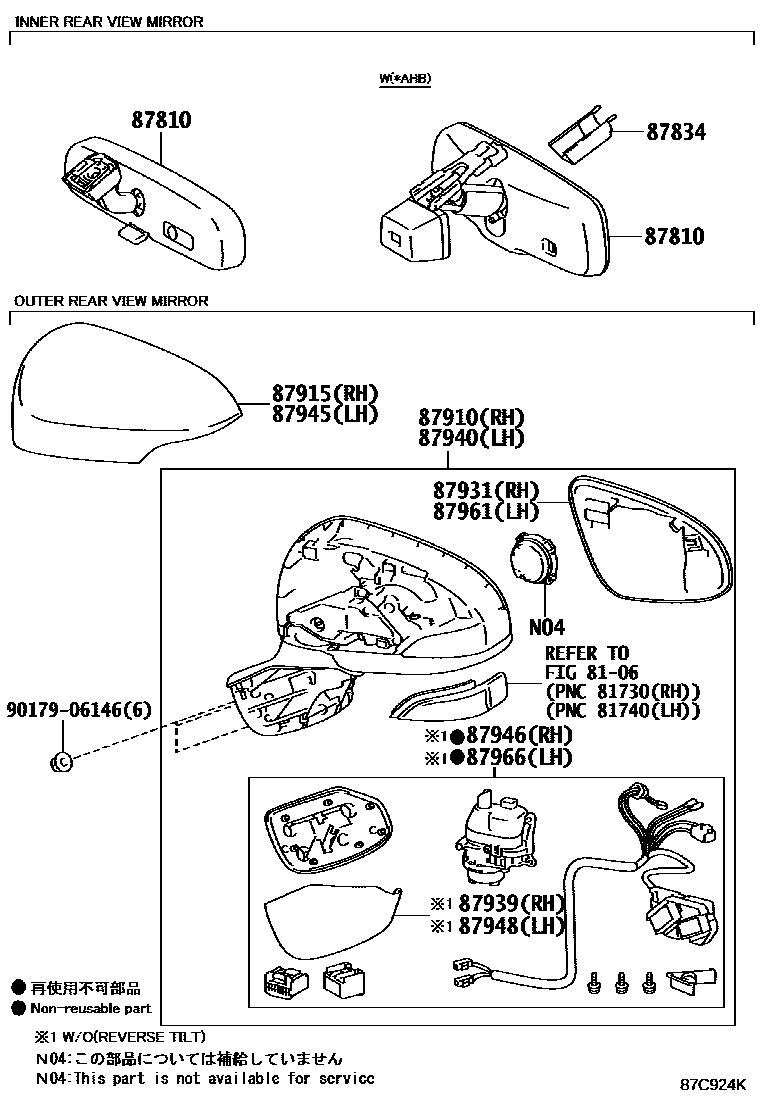

Toyota COROLLA/AXIO — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
MELLOW SILVER ME.,1J5
BLACK MC.,209
BLACKISH RED MC.,3R0
SUPER RED 5,3P0
COOL BORDEAUX GF.,3T9
BRONZE M.M.,4T3
ORANGE ME.,4R8
VINTAGE BROWN PEARL CS.,4X4
DK.BLUE MC.,8S6
BLUE ME.,8T7
DK.VIOLET M.M.,9AF
AVANT-GARDE BRONZE ME.,4V8
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
MELLOW SILVER ME.,1J5
BLACK MC.,209
BLACKISH RED MC.,3R0
SUPER RED 5,3P0
COOL BORDEAUX GF.,3T9
BRONZE M.M.,4T3
ORANGE ME.,4R8
VINTAGE BROWN PEARL CS.,4X4
DK.BLUE MC.,8S6
BLUE ME.,8T7
DK.VIOLET M.M.,9AF
AVANT-GARDE BRONZE ME.,4V8
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
9017906146
main90179-06146
14 parts on this diagram · 1 diagram in section
