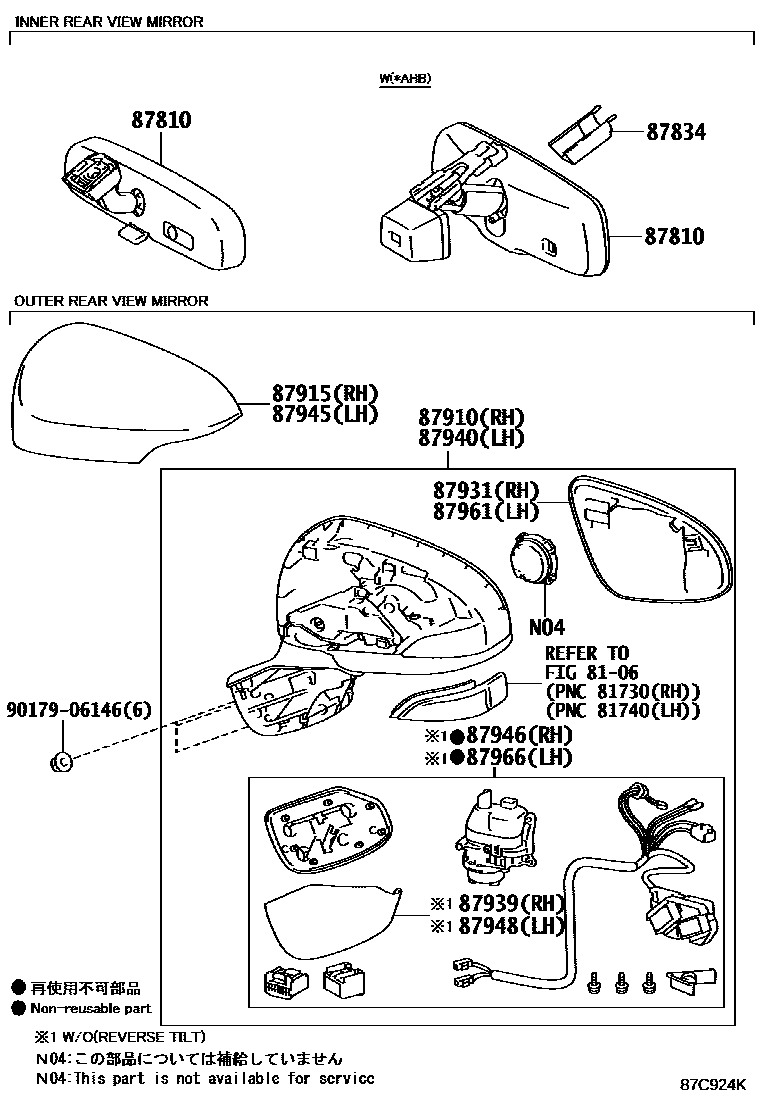

Toyota COROLLA/AXIO — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W850i201212-201503

main87810-0WQ40i201710-201908

main87810-52041i201204-201908

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-04010i201212-201503

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-12J80i201204-201908

NO PAINT REQ.

main87910-12J90i201212-201503

NO PAINT REQ.

main87910-12K00i201503-201710

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-52170-A0i201204-201908

SUPER WHITE 2,040

main87915-52170-A1i201212-201908

WHITE PEARL CS.,070

main87915-52170-B0i201204-201908

SILVER ME.,1F7

main87915-52170-B3i201212-201710

MELLOW SILVER ME.,1J5

main87915-52170-C0i201204-201908

BLACK MC.,209

main87915-52170-D0i201212-201503

BLACKISH RED MC.,3R0

main87915-52170-D1i201204-201710

SUPER RED 5,3P0

main87915-52170-D3i201710-201908

COOL BORDEAUX GF.,3T9

main87915-52170-E1i201204-201503

BRONZE M.M.,4T3

main87915-52170-E4i201503-201908

ORANGE ME.,4R8

main87915-52170-E7i201503-201908

VINTAGE BROWN PEARL CS.,4X4

main87915-52170-J0i201212-201710

DK.BLUE MC.,8S6

main87915-52170-J1i201204-201908

BLUE ME.,8T7

main87915-52170-K0i201204-201503

DK.VIOLET M.M.,9AF

main87915-52170-L2i201710-201908

AVANT-GARDE BRONZE ME.,4V8

87931OUTER MIRROR, RH

main87931-12J90i201212-201710

main87931-52D70i201204-201908

87939COVER, OUTER MIRROR HOLE, RH

main87939-12J80i201503-201908

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12J80i201204-201908

NO PAINT REQ.

main87940-12J90i201212-201503

NO PAINT REQ.

main87940-12K00i201503-201710

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-52170-A0i201204-201908

SUPER WHITE 2,040

main87945-52170-A1i201212-201908

WHITE PEARL CS.,070

main87945-52170-B0i201204-201908

SILVER ME.,1F7

main87945-52170-B3i201212-201710

MELLOW SILVER ME.,1J5

main87945-52170-C0i201204-201908

BLACK MC.,209

main87945-52170-D0i201212-201503

BLACKISH RED MC.,3R0

main87945-52170-D1i201204-201710

SUPER RED 5,3P0

main87945-52170-D3i201710-201908

COOL BORDEAUX GF.,3T9

main87945-52170-E1i201204-201503

BRONZE M.M.,4T3

main87945-52170-E4i201503-201908

ORANGE ME.,4R8

main87945-52170-E7i201503-201908

VINTAGE BROWN PEARL CS.,4X4

main87945-52170-J0i201212-201710

DK.BLUE MC.,8S6

main87945-52170-J1i201204-201908

BLUE ME.,8T7

main87945-52170-K0i201204-201503

DK.VIOLET M.M.,9AF

main87945-52170-L2i201710-201908

AVANT-GARDE BRONZE ME.,4V8

87946RETRACTOR, OUTER MIRROR, RH

main87946-12J80i201204-201908

main87946-12J90i201212-201503

main87946-12K00i201503-201710

87948COVER, OUTER MIRROR HOLE, LH

main87948-12J80i201503-201908

87961MIRROR OUTER, LH

main87961-12J90i201212-201710

main87961-52D50i201204-201908

87966RETRACTOR, OUTER MIRROR, LH

main87966-12J80i201204-201908

main87966-12J90i201212-201503

main87966-12K00i201503-201710

9017906146

main90179-06146

14 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA/AXIO

This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota COROLLA/AXIO. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
