Toyota COROLLA/AXIO — METER

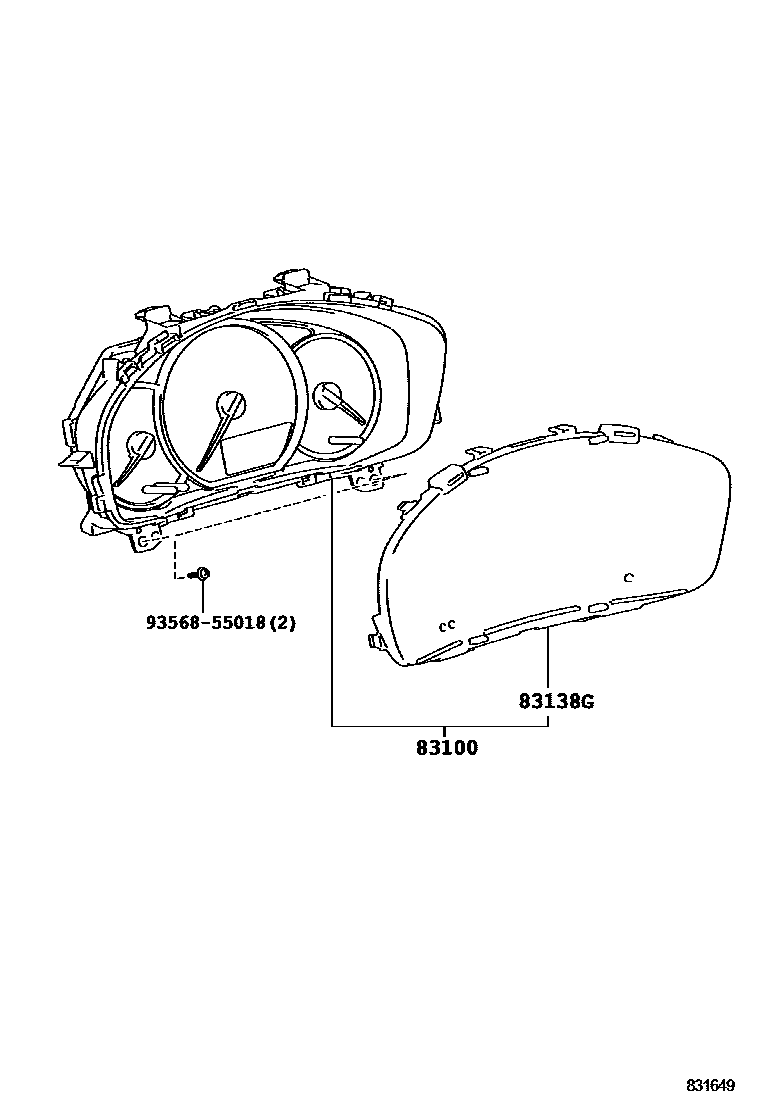

Parts diagram
83100METER ASSY, COMBINATION
main83800-12W50i201212-201307
DENSO
main83800-12W70i201212-201307
DENSO
main83800-12W71i201308-201503
DENSO
main83800-12W80i201204-201307
DENSO
main83800-12W81i201308-201503
DENSO
main83800-12Z30i201503-201710
DENSO
main83800-1AL50i201710-201908
DENSO
sub83800-1AL51
83138GGLASS, COMBINATION METER
main83852-12W50i201204-201503
9356855018
main93568-55018

3 parts on this diagram · 1 diagram in section
