Toyota COROLLA/AXIO — MAT & CARPET

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-52160i201710-201908

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-12160i201503-201710

main55215-52101i201503-201710

main55215-52150i201206-201503

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-12040i201710-201908

58442FCOVER, JACK

main58442-52060i201503-201710

58510DCARPET ASSY, FLOOR, FRONT

main58510-12J50-B0i201206-201405

GRAY,TRIM2#

main58510-12J51-B0i201405-201503

GRAY,TRIM2#

main58510-12J70-B0i201212-201405

GRAY,TRIM2#

main58510-12J71-B0i201405-201503

GRAY,TRIM2#

main58510-12K30-B0i201204-201405

GRAY,TRIM2#

main58510-12K31-B0i201405-201503

GRAY,TRIM2#

main58510-12P10-B0i201710-201908

GRAY,TRIM2#

main58510-12P20-B0i201503-201710

GRAY,TRIM2#

58511HMAT, FLOOR, FRONT RH

main58511-12710i201710-201908

58512HMAT, FLOOR, FRONT LH

main58512-12290i201503-201710

58514GMAT, FLOOR, REAR RH

main58513-12290i201204-201503

58515FMAT, FLOOR, REAR LH

main58514-12610i201204-201503

58521BHOOK, FLOOR CARPET

main58521-52050×6i201204-201503

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2i201503-201710

58530LCLIP, FLOOR CARPET, CENTER

main90467-07049-23i201610-201710

BLACK

main90467-07049-C0i201503-201610

BLACK

58540DCARPET ASSY, FLOOR, REAR

main58540-12710-B0i201204-201404

GRAY,TRIM2#

main58540-12711-B0i201503-201710

GRAY,TRIM2#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-52020-C0i201204-201304

BLACK,TRIM2#

main58569-52021-C0i201305-201503

BLACK,TRIM2#

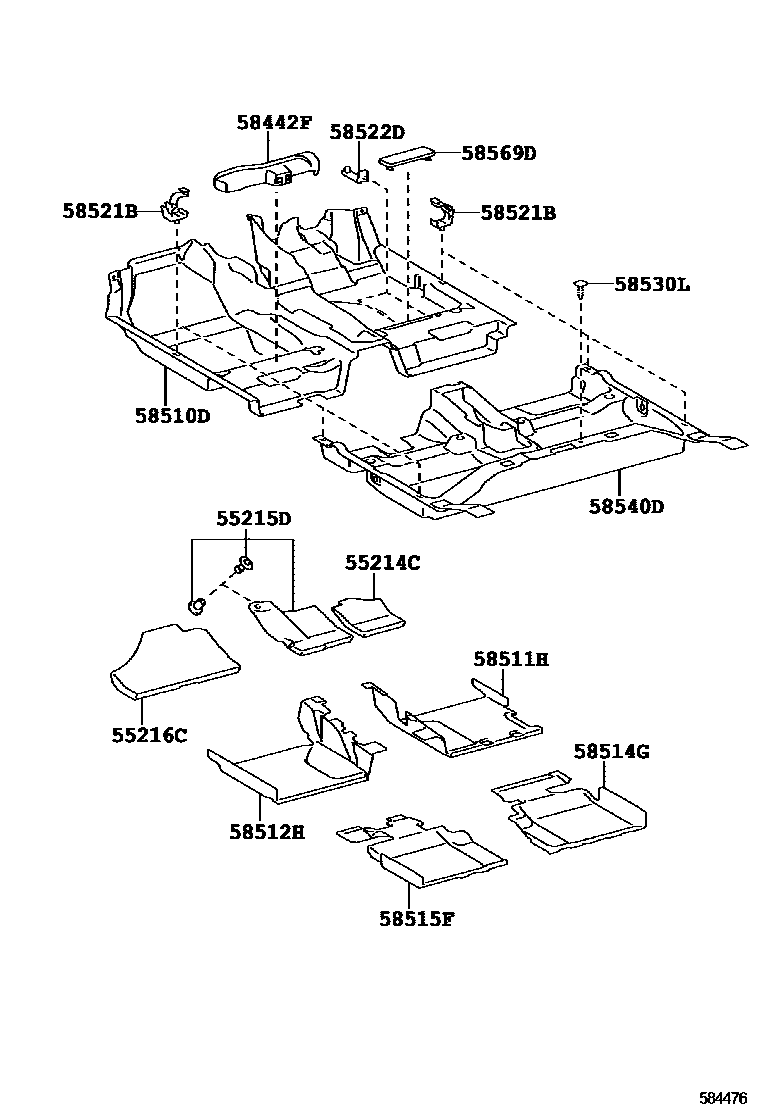

14 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota COROLLA/AXIO

This section contains 14 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA/AXIO. Key components include: PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, PAD, DASH PANEL INSULATOR, NO.4, COVER, JACK, CARPET ASSY, FLOOR, FRONT.
