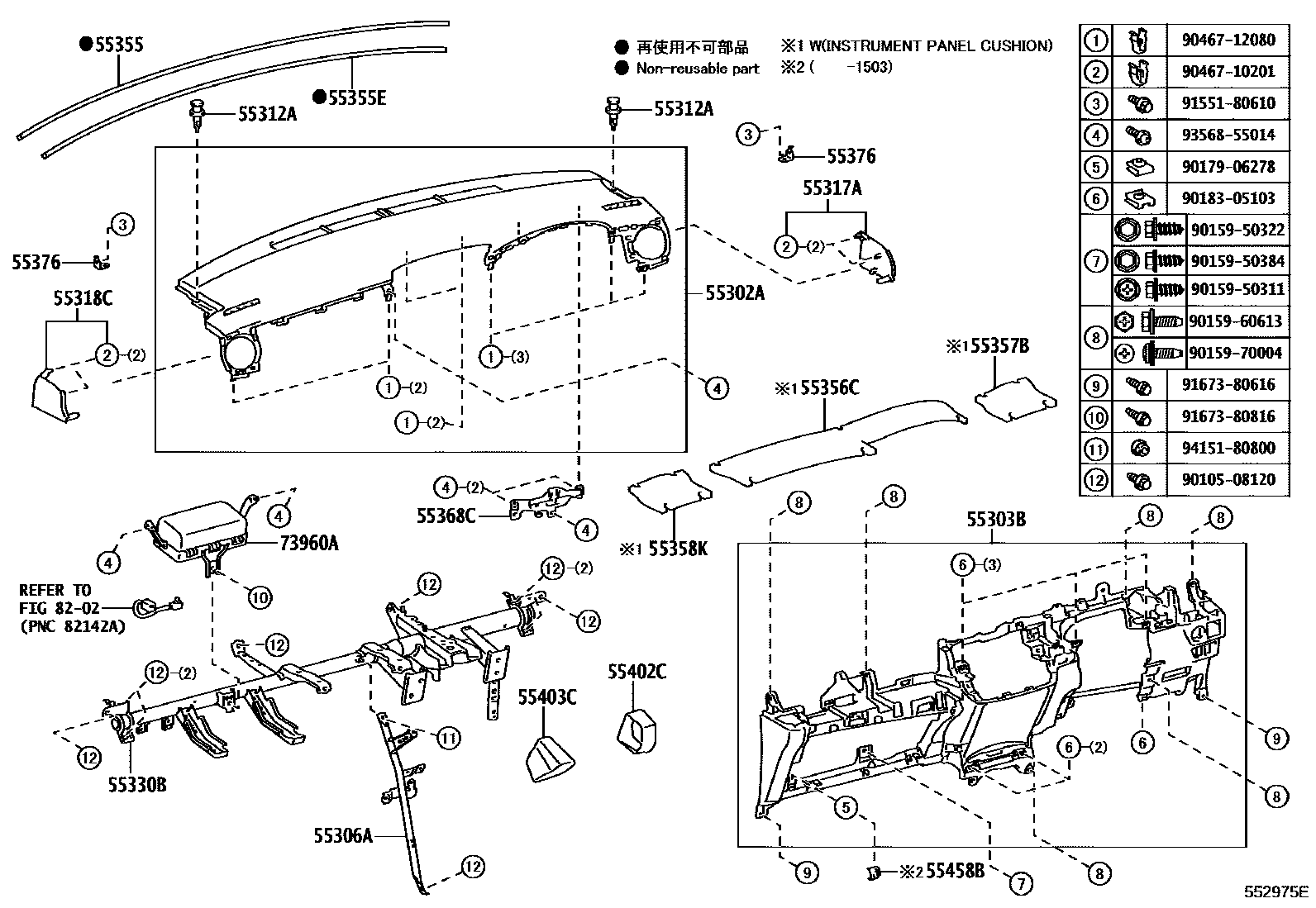

Toyota COROLLA/AXIO — INSTRUMENT PANEL & GLOVE COMPARTMENT

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12250-C0i201204-201503

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12470-C0i201204-201503

BLACK,TRIM2#

main55303-12490-C0i201503-201710

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12520i201204-201503

55312ACLIP, INSTRUMENT PANEL

main52161-16010×2i201204-201503

55317APANEL, INSTRUMENT SIDE, RH

main55317-12140-C0i201204-201503

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-12150-C0i201204-201503

BLACK,TRIM2#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12480i201204-201305

main55330-12550i201305-201503

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12090i201204-201503

8 X 8 X 1230

main55355-12240i201504-201710

8 X 8 X 1230

55355ECUSHION, INSTRUMENT PANEL

main55355-12190i201204-201503

8 X 8 X 1133

main55355-12250i201710-201908

8 X 8 X 1163

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12130i201212-201503

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55358-12120i201212-201503

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-12120i201212-201503

55368CBRACKET, METER MOUNTING

main55368-12110i201204-201503

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-12160×2i201204-201503

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-12060i201204-201503

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-12100i201204-201503

55458BCOVER, INSTRUMENT, LWR

main55458-12050-C0i201204-201503

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12190i201204-201503

main73960-12191i201807-201908

main73960-12460i201804-201806

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

9015950311

main90159-50311

9015950322

main90159-50322

9015950384

main90159-50384

9015960613

main90159-60613

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046710201

main90467-10201

9046712080

main90467-12080

9155180610

main91551-80610

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

34 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota COROLLA/AXIO

This section contains 62 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota COROLLA/AXIO. Key components include: DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1, PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, UPPER, PANEL SUB-ASSY, INSTRUMENT, LOWER.
