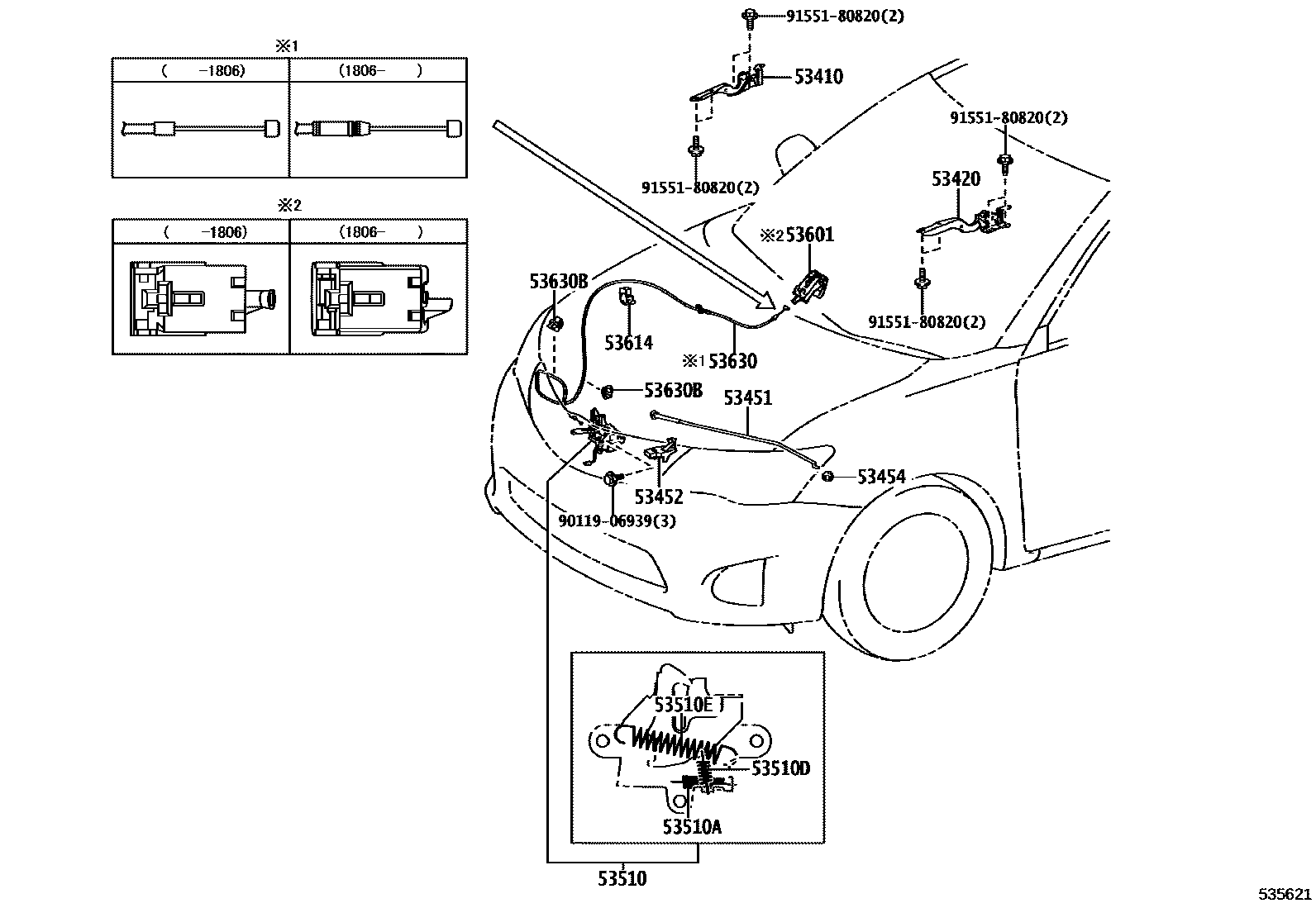

Toyota COROLLA/AXIO — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12620i201503-201710

53420HINGE ASSY, HOOD, LH

main53420-12610i201204-201503

53451ROD, HOOD SUPPORT

main53440-12200i201204-201503

main53440-12210i201503-201710

53452HOLDER, HOOD STAY

main53452-12110i201503-201710

53454CLIP, HOOD SUPPORT ROD

main53454-52040i201204-201503

53510LOCK ASSY, HOOD

main53510-12B50i201204-201503

main53510-12B70i201503-201710

main53510-12B80i201710-201908

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052i201710-201908

WD=0.9,CW=20.75

main90506-09055i201204-201503

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063i201204-201503

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077i201204-201503

WD=1.6,CW=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0i201806-201908

BLACK,TRIM2#

main53601-52010-C0i201204-201503

BLACK,TRIM2#

main53601-52010-C1i201710-201806

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-1E370i201710-201908

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52160i201204-201503

main53630-52161i201806-201908

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×2i201204-201503

9011906939

main90119-06939

9155180820

main91551-80820

15 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota COROLLA/AXIO

This section contains 15 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota COROLLA/AXIO. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, HOLDER, HOOD STAY, CLIP, HOOD SUPPORT ROD.
