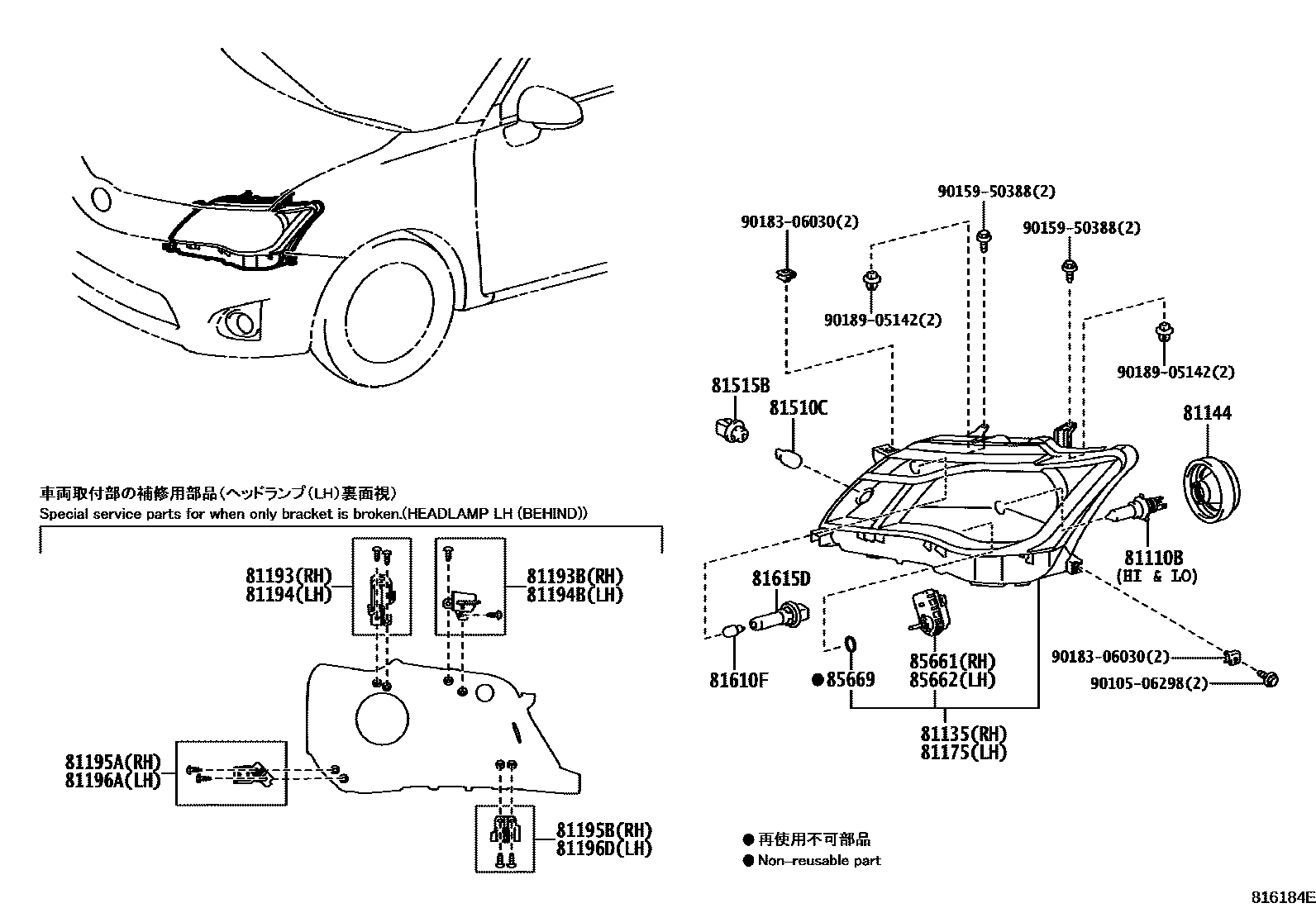

Toyota COROLLA/AXIO — HEADLAMP

0001 1 0002 1 0003 1 0004 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iNRE161,NZE161..5D201503-201710

12V65W(SAE),60W(ECE)

main90981-13058×2iNZE161..N201204-201503

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-12J00iNZE161..N201204-201503

main81130-12J70iNRE161,NZE161..5D201710-201908

main81140-12J80iNRE161..4D201503-201710

main81145-12J10iNZE161..E201212-201503

81144COVER, HEADLAMP, NO.1

main90075-65002×2iNZE161..N201204-201503

81175UNIT ASSY, HEADLAMP, LH

main81070-12J80iNRE161..4D201503-201710

main81170-12J00iNZE161..N201204-201503

main81170-12J70iNRE161,NZE161..5D201503-201710

main81185-12J10iNZE161..E201212-201503

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12100iNZE161..N201204-201503

main81193-12130iNRE161,NZE161..5D201503-201710

main81193-12170iNZE161..E201212-201503

main81193-12210iNRE161..4D201503-201710

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81197-12120iNRE161,NZE161..5D201710-201908

main81197-12140iNZE161..N201204-201503

main81197-12150iNZE161..E201212-201503

main81197-12180iNRE161..4D201710-201908

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12120iNRE161,NZE161..5D201710-201908

main81194-12140iNZE161..N201204-201503

main81194-12170iNZE161..E201212-201503

main81194-12210iNRE161..4D201503-201710

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81198-12100iNRE161,NZE161..5D201503-201710

main81198-12150iNZE161..N201204-201503

main81198-12160iNZE161..E201212-201503

main81198-12180iNRE161..4D201710-201908

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12180iNRE161,NZE161..5D201503-201710

main81195-12200iNZE161..N201204-201503

main81195-12220iNZE161..E201212-201503

main81195-12290iNRE161..4D201503-201710

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-12210iNZE161201204-201503

main81195-12280iNRE161,NZE161..5D201710-201908

main81195-12300iNRE161..4D201503-201710

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12180iNRE161,NZE161..5D201710-201908

main81196-12200iNZE161..N201204-201503

main81196-12220iNZE161..E201212-201503

main81196-12290iNRE161..4D201503-201710

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-12210iNZE161201204-201503

main81196-12280iNRE161,NZE161..5D201503-201710

main81196-12300iNRE161..4D201503-201710

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNZE161201204-201503

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNZE161201204-201503

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069×2iNRE161,NZE161201503-201710

12V 5W

main99132-12050×2iNZE161201204-201503

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iNZE161201204-201503

main90075-60089×2iNRE161,NZE161201503-201710

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iNZE161..N201204-201503

main85661-12020iNRE161..4D201503-201710

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iNZE161..N201204-201503

main85661-12020iNRE161..4D201503-201710

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iNRE161,NZE161201710-201908

9010506298

main90105-06298

9015950388

main90159-50388

9018306030

main90183-06030

9018905142

main90189-05142

23 parts on this diagram · 4 diagrams in section
