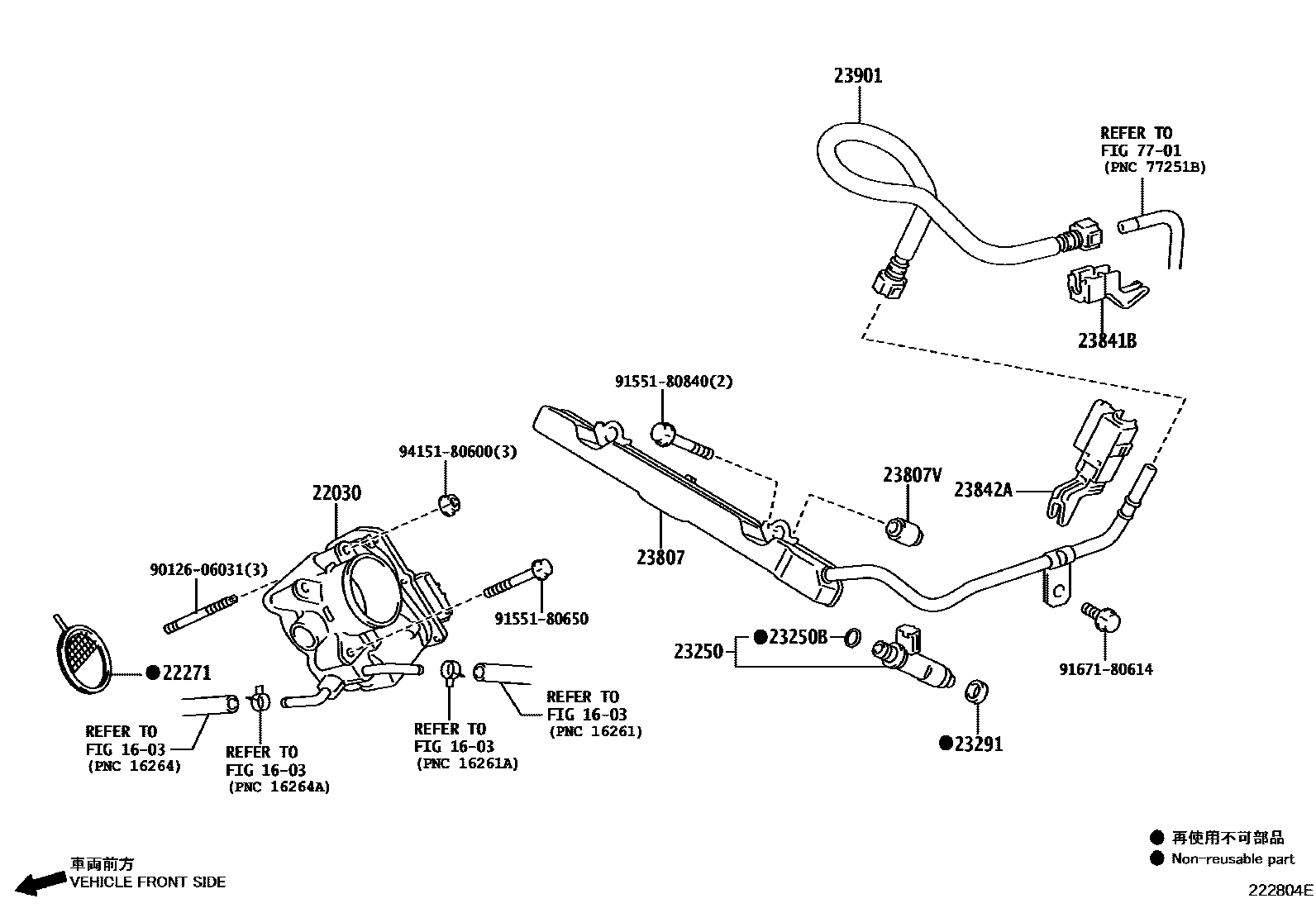

Toyota COROLLA/AXIO — FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NZE161..5F201204-201503

main22030-21040i1NZFE..NZE161..CVT201206-201503

main22030-47060i2NRFKE..NRE161201710-201908

MARK=22030-47060

main22030-47090i2NRFKE..NRE161201710-201908

MARK=22030-47090

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NZE161201503-201710

main22271-47050i2NRFKE..NRE161201710-201908

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFE..NZE161..5F201204-201503

sub23209-21120

main23209-21100×4i1NZFE..NZE161..CVT201206-201503

sub23209-21130

main23209-49245×4i2NRFKE..NRE161201710-201908

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1NZFE,2NRFKE..NRE161,NZE161201710-201908

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NZFE..NZE161201204-201503

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21030i1NZFE..NZE161201204-201410

main23807-21031i1NZFE..NZE161201411-201503

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE..NZE161201503-201710

main23891-47030×2i2NRFKE..NRE161201503-201710

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFE..NZE161201204-201503

main23841-37090i2NRFKE..NRE161201710-201908

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i1NZFE..NZE161201204-201210

main23841-21050i2NRFKE..NRE161201503-201710

main23841-37090i1NZFE..NZE161201710-201908

23901TUBE SUB-ASSY, FUEL

main23901-21110i1NZFE..NZE161201204-201503

main23901-47080i2NRFKE..NRE161201503-201710

7701

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

17 parts on this diagram · 2 diagrams in section
