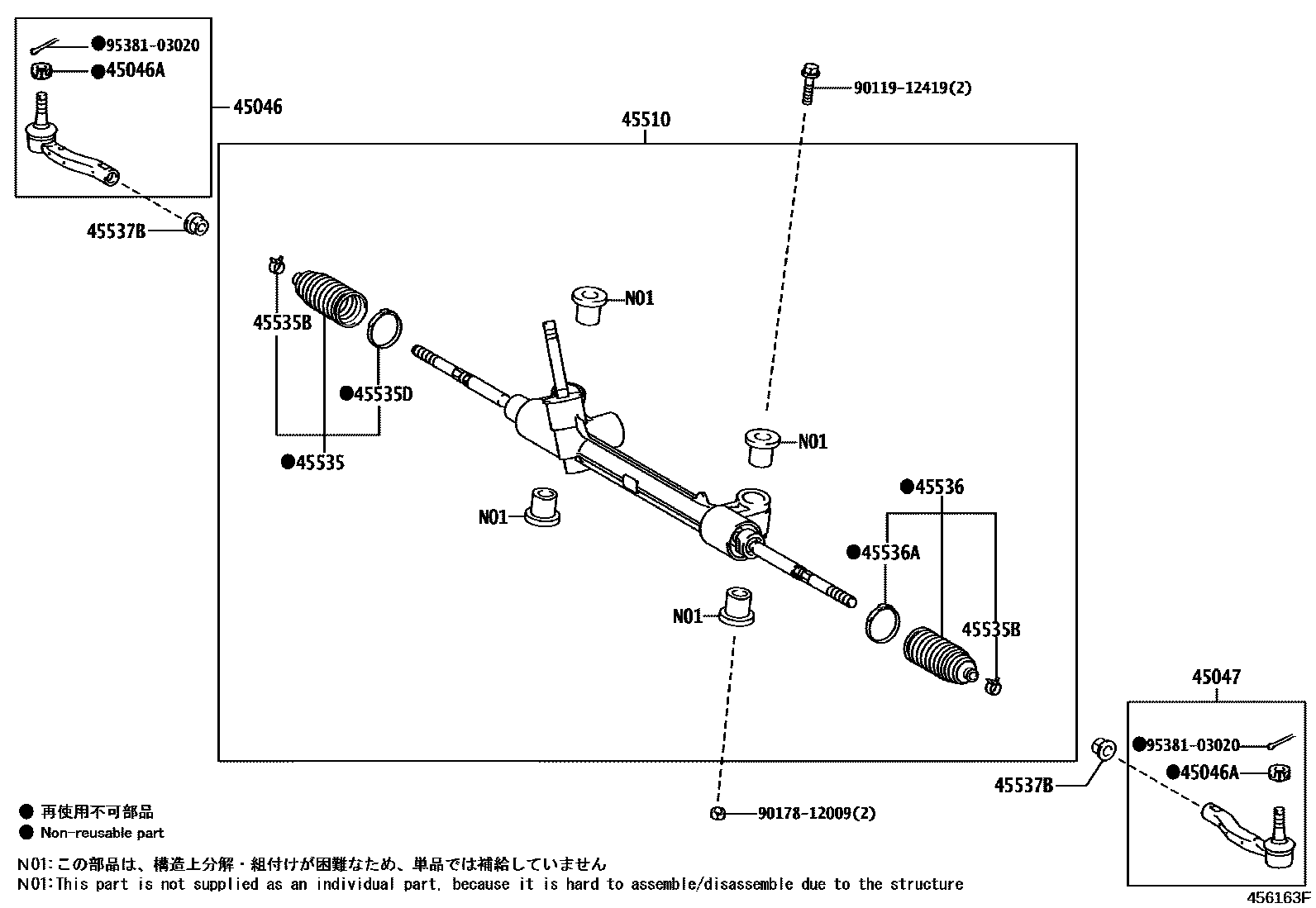

Toyota COROLLA/AXIO — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-59195i201204-201208

main45046-59255i201208-201503

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i201204-201503

45047END SUB-ASSY, TIE ROD, LH

main45047-59135i201204-201208

main45047-59165i201208-201503

45510GEAR ASSY, STEERING

main45510-52300i201204-201211

main45510-52301i201212-201503

45535BOOT, STEERING RACK, NO.1

main45535-59035i201204-201503

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2i201204-201503

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010i201204-201503

45536BOOT, STEERING RACK, NO.2

main45535-59035i201204-201503

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010i201204-201503

45537BNUT, RACK END LOCK

main90179-14019×2i201204-201503

9011912419

main90119-12419

9017812009

main90178-12009

9538103020

main95381-03020

13 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota COROLLA/AXIO

This section contains 13 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA/AXIO. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
