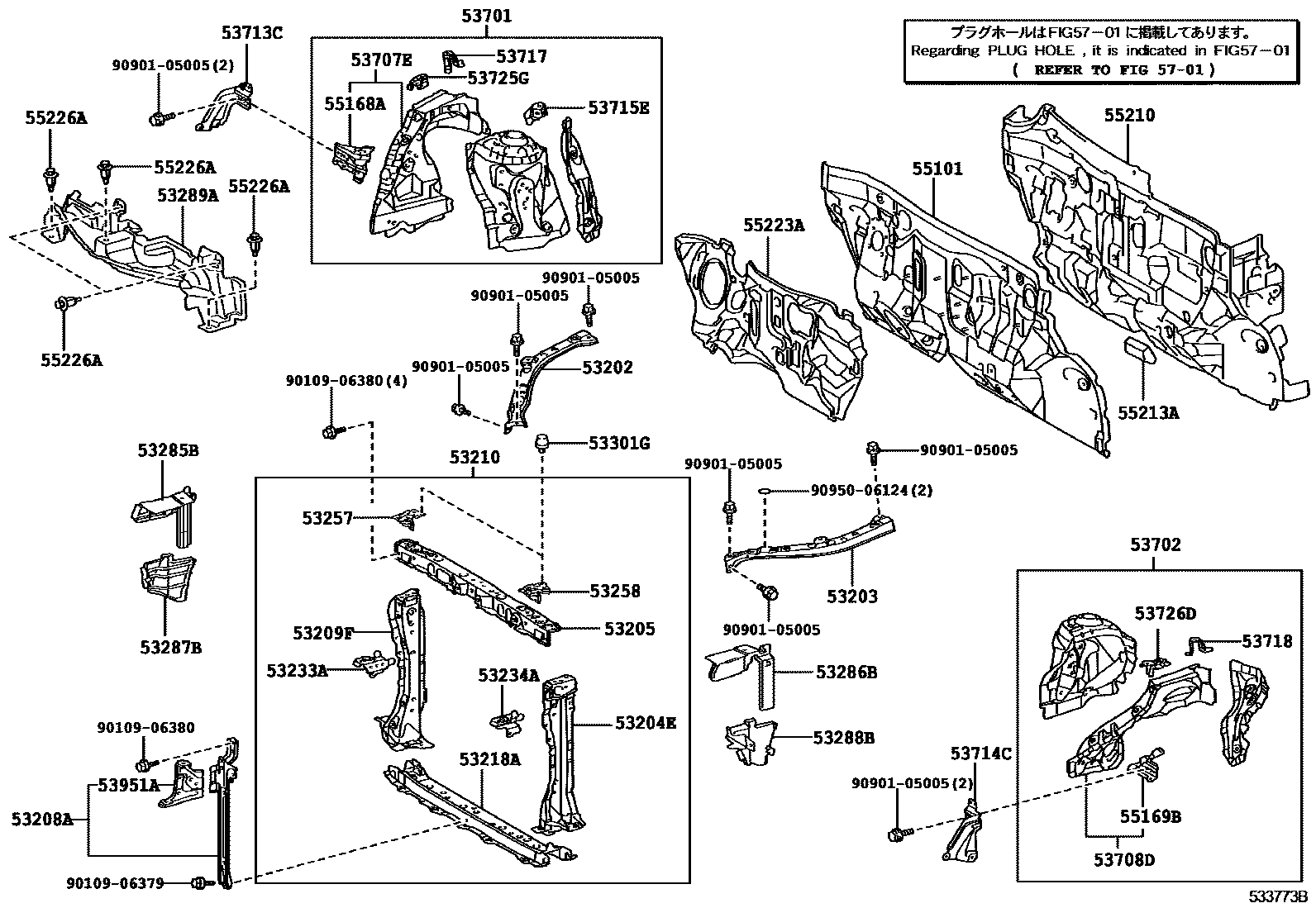

Toyota COROLLA/AXIO — FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH
53210SUPPORT ASSY, RADIATOR
53218ASUPPORT, RADIATOR, LOWER
53233ABRACKET, HEADLAMP, NO.1 RH
53234ABRACKET, HEADLAMP, NO.1 LH
53257BRACKET, FRONT END PANEL MOUNTING, RH
53258BRACKET, FRONT END PANEL MOUNTING, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53289ACOVER, RADIATOR SUPPORT OPENING
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53725GAPRON, FRONT FENDER NO.2 SIDE, RH
53726DAPRON, FRONT FENDER NO.2 SIDE, LH
53951ASUPPORT, FRONT END PANEL, UPPER
55101PANEL SUB-ASSY, DASH
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55213APAD, DASH PANEL SILENCER
55223AINSULATOR, DASH PANEL, OUTER
55226ACLIP
5701
9010906379
main90109-06379
9010906380
main90109-06380
9090105005
main90901-05005
9095006124
main90950-06124
42 parts on this diagram · 2 diagrams in section
