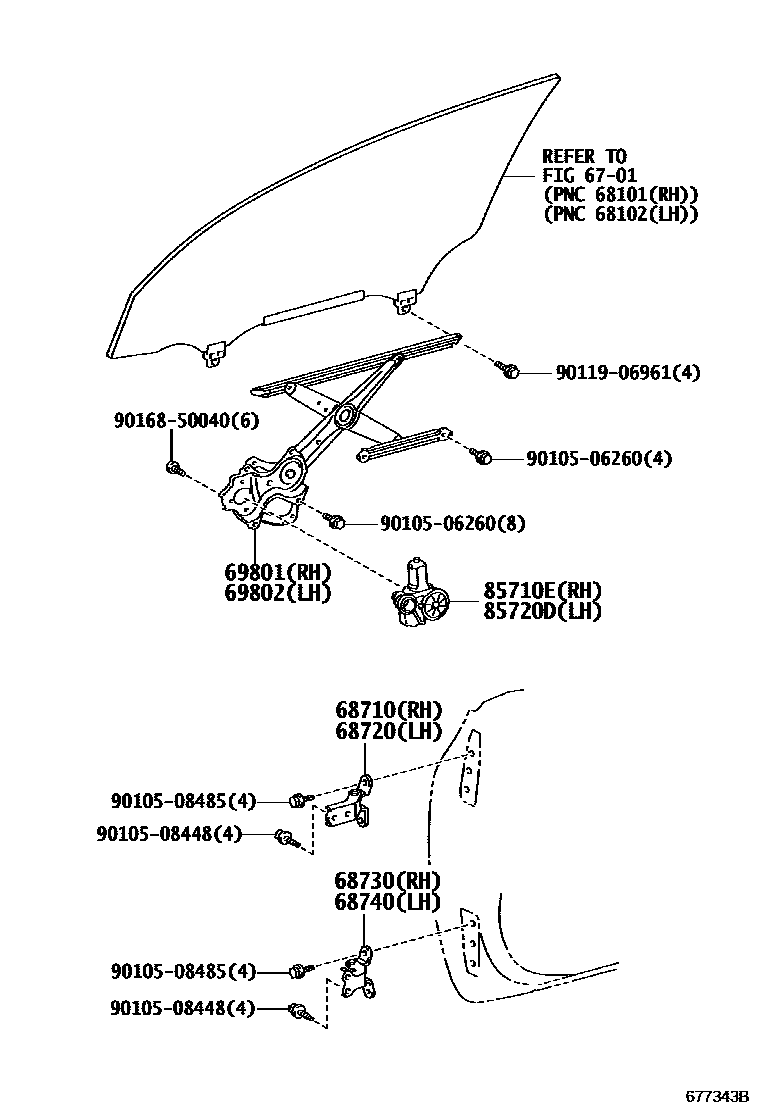

Toyota COROLLA/AXIO — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iNZE161201204-201503

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iNZE161201204-201503

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iNZE161201204-201503

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iNZE161201204-201503

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12260iNZE161201204-201503

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12260iNZE161201204-201503

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12490iNZE161201204-201503

main85710-60310iNRE161,NZE161201503-201710

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12490iNZE161201204-201503

main85720-60310iNRE161,NZE161201503-201710

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
