Toyota COROLLA/AXIO — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
COOL BORDEAUX GF.,3T9
ORANGE ME.,4R8
BLUE ME.,8T7
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
BLACKISH RED MC.,3R0
COOL BORDEAUX GF.,3T9
BRONZE M.M.,4T3
ORANGE ME.,4R8
VINTAGE BROWN PEARL CS.,4X4
AVANT-GARDE BRONZE ME.,4V8
DK.BLUE MC.,8S6
BLUE ME.,8T7
DK.VIOLET M.M.,9AF
MELLOW SILVER ME.,1J5
SMART ENTRY-WITH,SUPER WHITE 2,040
SMART ENTRY-WITH,WHITE PEARL CS.,070
SMART ENTRY-WITH,SILVER ME.,1F7
SMART ENTRY-WITH,MELLOW SILVER ME.,1J5
SMART ENTRY-WITH,BLACK MC.,209
SMART ENTRY-WITH,BLACKISH RED MC.,3R0
SMART ENTRY-WITH,VINTAGE BROWN PEARL CS.,4X4
SMART ENTRY-WITH,DK.BLUE MC.,8S6
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER),BRONZE M.M.,4T3
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER),DK.VIOLET M.M.,9AF
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
WHITE PEARL CS.,070,DRIVER SIDE
SUPER WHITE 2,040,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
BLACK MC.,209,DRIVER SIDE
SUPER RED 5,3P0,DRIVER SIDE
BLACKISH RED MC.,3R0,DRIVER SIDE
COOL BORDEAUX GF.,3T9,DRIVER SIDE
BRONZE M.M.,4T3,DRIVER SIDE
ORANGE ME.,4R8,DRIVER SIDE
VINTAGE BROWN PEARL CS.,4X4,DRIVER SIDE
AVANT-GARDE BRONZE ME.,4V8,DRIVER SIDE
DK.BLUE MC.,8S6,DRIVER SIDE
BLUE ME.,8T7,DRIVER SIDE
DK.VIOLET M.M.,9AF,DRIVER SIDE
MELLOW SILVER ME.,1J5,DRIVER SIDE
SUPER WHITE 2,040,DRIVER SIDE
WHITE PEARL CS.,070,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
MELLOW SILVER ME.,1J5,DRIVER SIDE
BLACK MC.,209,DRIVER SIDE
BLACKISH RED MC.,3R0,DRIVER SIDE
VINTAGE BROWN PEARL CS.,4X4,DRIVER SIDE
DK.BLUE MC.,8S6,DRIVER SIDE
SUPER WHITE 2,040,PASSENGER SIDE
WHITE PEARL CS.,070,PASSENGER SIDE
SILVER ME.,1F7,PASSENGER SIDE
MELLOW SILVER ME.,1J5,PASSENGER SIDE
BLACK MC.,209,PASSENGER SIDE
BLACKISH RED MC.,3R0,PASSENGER SIDE
VINTAGE BROWN PEARL CS.,4X4,PASSENGER SIDE
DK.BLUE MC.,8S6,PASSENGER SIDE
SUPER WHITE 2,040,PASSENGER SIDE
WHITE PEARL CS.,070,PASSENGER SIDE
SILVER ME.,1F7,PASSENGER SIDE
BLACK MC.,209,PASSENGER SIDE
SUPER RED 5,3P0,PASSENGER SIDE
BLACKISH RED MC.,3R0,PASSENGER SIDE
COOL BORDEAUX GF.,3T9,PASSENGER SIDE
BRONZE M.M.,4T3,PASSENGER SIDE
ORANGE ME.,4R8,PASSENGER SIDE
VINTAGE BROWN PEARL CS.,4X4,PASSENGER SIDE
AVANT-GARDE BRONZE ME.,4V8,PASSENGER SIDE
DK.BLUE MC.,8S6,PASSENGER SIDE
BLUE ME.,8T7,PASSENGER SIDE
DK.VIOLET M.M.,9AF,PASSENGER SIDE
MELLOW SILVER ME.,1J5,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
COOL BORDEAUX GF.,3T9
ORANGE ME.,4R8
BLUE ME.,8T7
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
BLACKISH RED MC.,3R0
COOL BORDEAUX GF.,3T9
BRONZE M.M.,4T3
ORANGE ME.,4R8
VINTAGE BROWN PEARL CS.,4X4
AVANT-GARDE BRONZE ME.,4V8
DK.BLUE MC.,8S6
BLUE ME.,8T7
DK.VIOLET M.M.,9AF
MELLOW SILVER ME.,1J5
SMART ENTRY-WITH,SUPER WHITE 2,040
SMART ENTRY-WITH,WHITE PEARL CS.,070
SMART ENTRY-WITH,SILVER ME.,1F7
SMART ENTRY-WITH,MELLOW SILVER ME.,1J5
SMART ENTRY-WITH,BLACK MC.,209
SMART ENTRY-WITH,BLACKISH RED MC.,3R0
SMART ENTRY-WITH,VINTAGE BROWN PEARL CS.,4X4
SMART ENTRY-WITH,DK.BLUE MC.,8S6
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER),BRONZE M.M.,4T3
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER),DK.VIOLET M.M.,9AF
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM2#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM2#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003

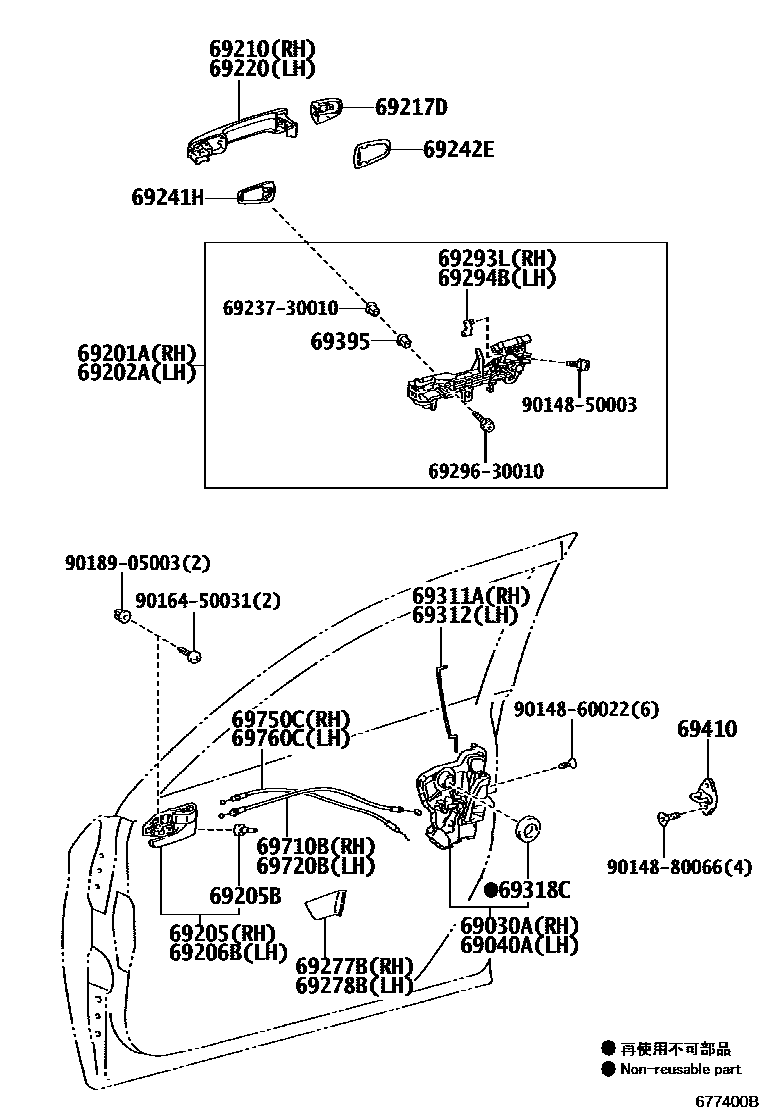

32 parts on this diagram · 1 diagram in section
