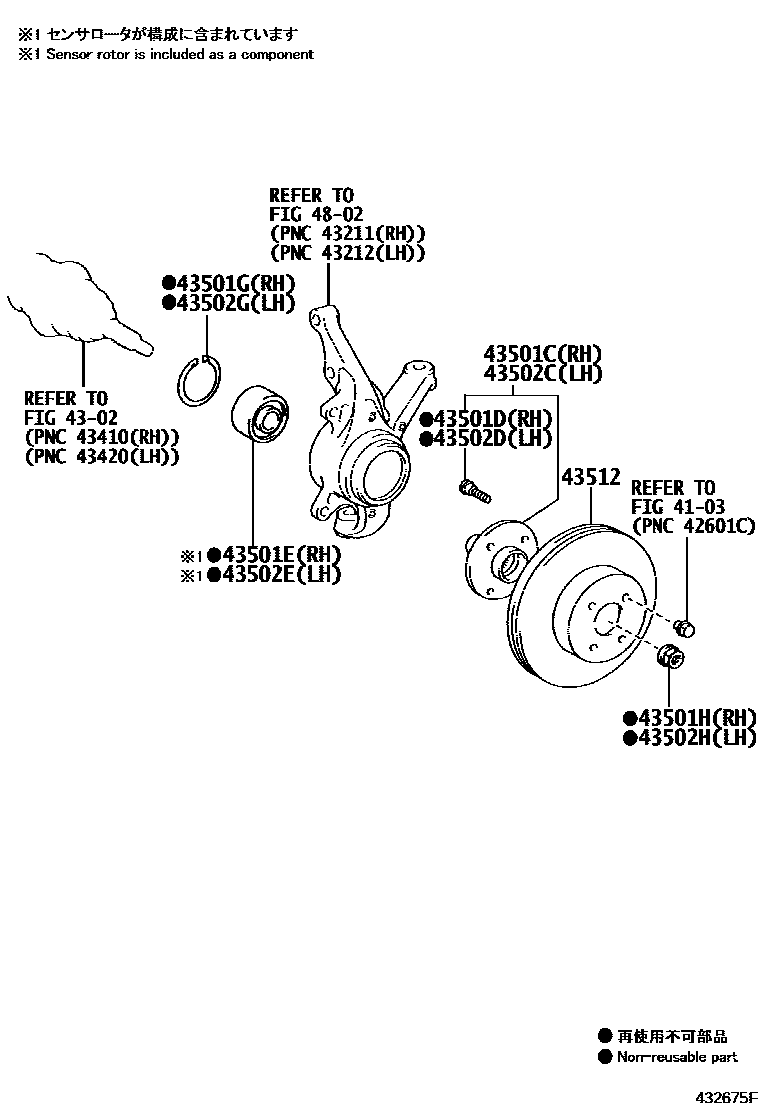

Toyota COROLLA/AXIO — FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52030i201204-201908

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049i201204-201908

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079i201204-201612

main90369-40009i201701-201908

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003i201204-201908

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201204-201908

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52030i201204-201908

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049i201204-201908

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079i201204-201612

main90369-40009i201701-201908

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003i201204-201908

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201204-201908

43512DISC, FRONT

main43512-52120i201212-201908

main43512-52130i201204-201908

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

14 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA/AXIO

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA/AXIO. Key components include: DISC WHEEL & WHEEL CAP, FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
