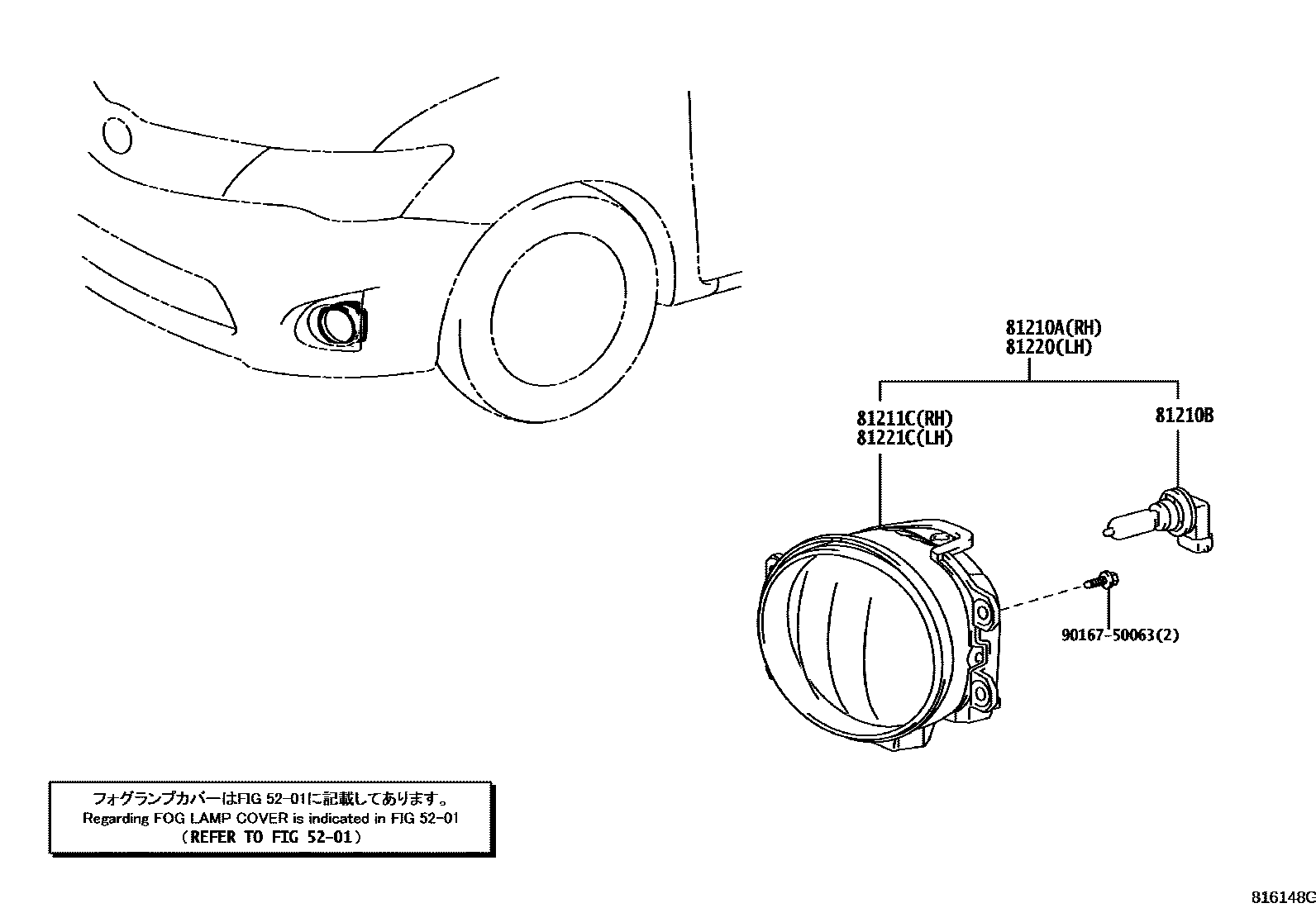

Toyota COROLLA/AXIO — FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-12230i201212-201409

FRONT FOG LAMP-WITH(DOP)

main81210-47010i201410-201503

FRONT FOG LAMP-WITH(DOP)

81210BBULB, FOG LAMP

main90981-13090×2i201212-201503

12V 19W,FRONT FOG LAMP-WITH(DOP)

81211CLAMP UNIT, FOG LAMP, RH

main81211-12230i201212-201409

FRONT FOG LAMP-WITH(DOP)

main81211-47010i201410-201503

FRONT FOG LAMP-WITH(DOP)

81220LAMP ASSY, FOG, LH

main81220-12230i201212-201409

FRONT FOG LAMP-WITH(DOP)

main81220-47010i201410-201503

FRONT FOG LAMP-WITH(DOP)

81221CLAMP UNIT, FOG LAMP, LH

main81221-12230i201212-201409

FRONT FOG LAMP-WITH(DOP)

main81221-47010i201410-201503

FRONT FOG LAMP-WITH(DOP)

9016750063

main90167-50063

7 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota COROLLA/AXIO

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota COROLLA/AXIO. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, LAMP ASSY, FOG, LH.
