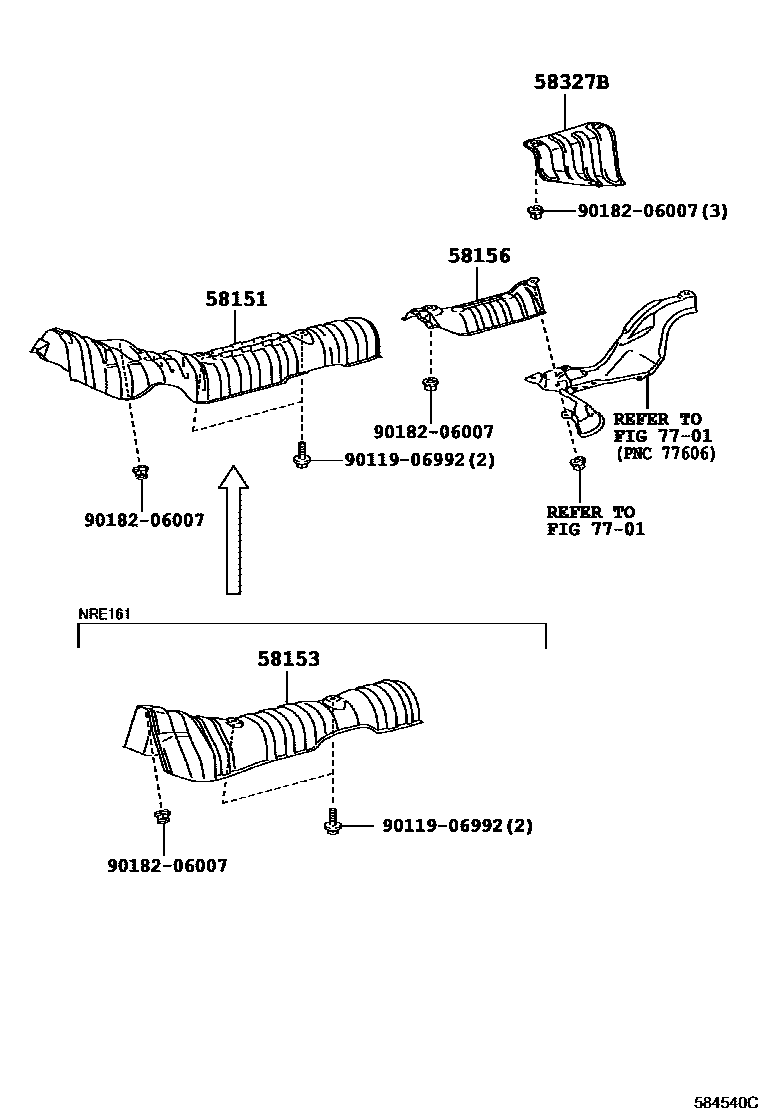

Toyota COROLLA/AXIO — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52062i201204-201908

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52091i201503-201908

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52020i201204-201908

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52121i201204-201908

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906992

main90119-06992

9018206007

main90182-06007

7 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota COROLLA/AXIO

This section contains 7 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota COROLLA/AXIO. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.4, INSULATOR, MAIN MUFFLER HEAT, FUEL TANK & TUBE.
