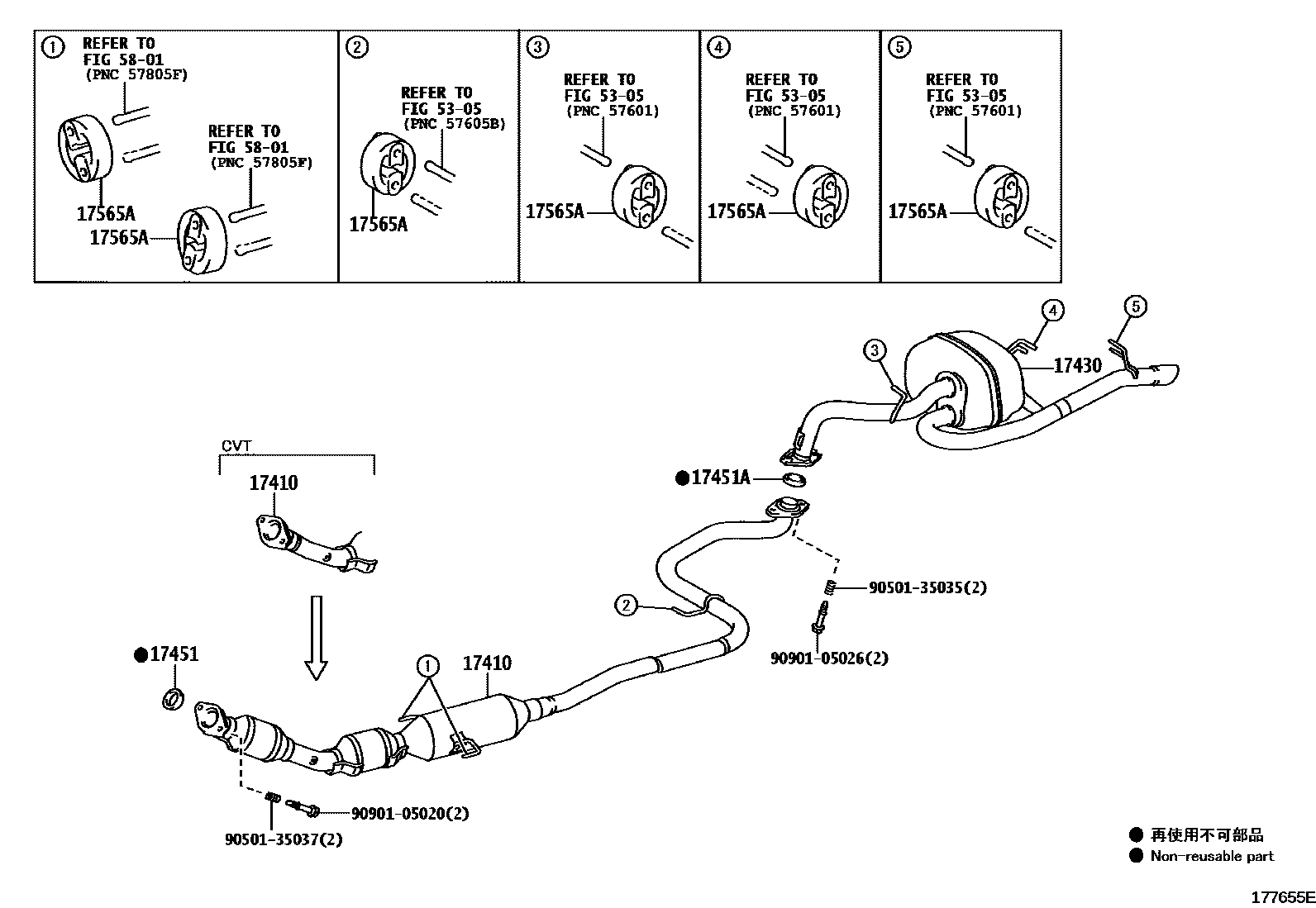

Toyota COROLLA/AXIO — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
5305FLOOR SIDE MEMBER
5801FLOOR PAN & LOWER BACK PANEL
9050135035
main90501-35035
9050135037
main90501-35037
9090105020
main90901-05020
9090105026
main90901-05026
11 parts on this diagram · 2 diagrams in section
EXHAUST PIPE for Toyota COROLLA/AXIO
This section contains 11 genuine Toyota parts for the EXHAUST PIPE system of the Toyota COROLLA/AXIO. Key components include: PIPE ASSY, EXHAUST, FRONT, PIPE ASSY, EXHAUST, TAIL, GASKET, EXHAUST PIPE, GASKET, EXHAUST PIPE, NO.2, SUPPORT, EXHAUST PIPE, NO.4.
