Toyota COROLLA/AXIO — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

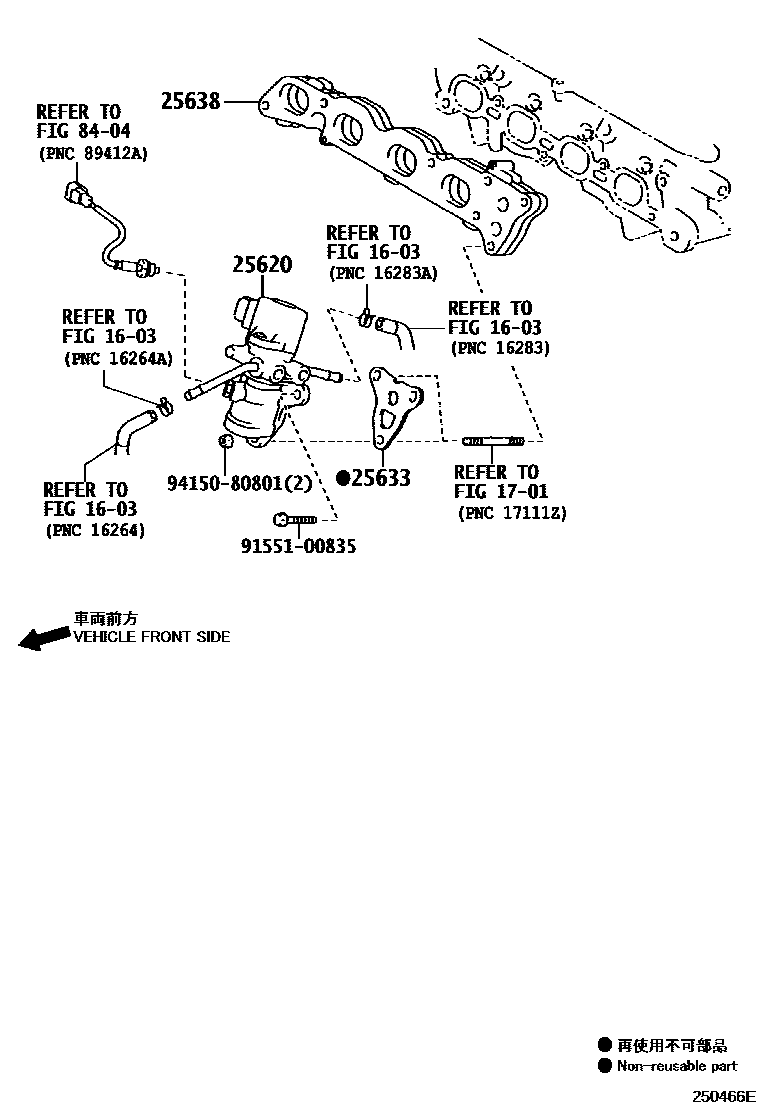

25620VALVE ASSY, EGR

main25620-21010i1NZFE..NZE161201204-201908

main25620-21030i1NZFE..NZE161..CVT201206-201503

main25620-47030i2NRFKE..NRE161201503-201906

main25620-47060i2NRFKE..NRE161201907-201908

25633GASKET, EGR VALVE

main25633-21020i1NZFE..NZE161201204-201908

main25633-47020i2NRFKE..NRE161201503-201908

25638CHAMBER, EGR DELIVERY

main25638-21020i1NZFE..NZE161201204-201908

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9155100835

main91551-00835

9415080801

main94150-80801

8 parts on this diagram · 2 diagrams in section
