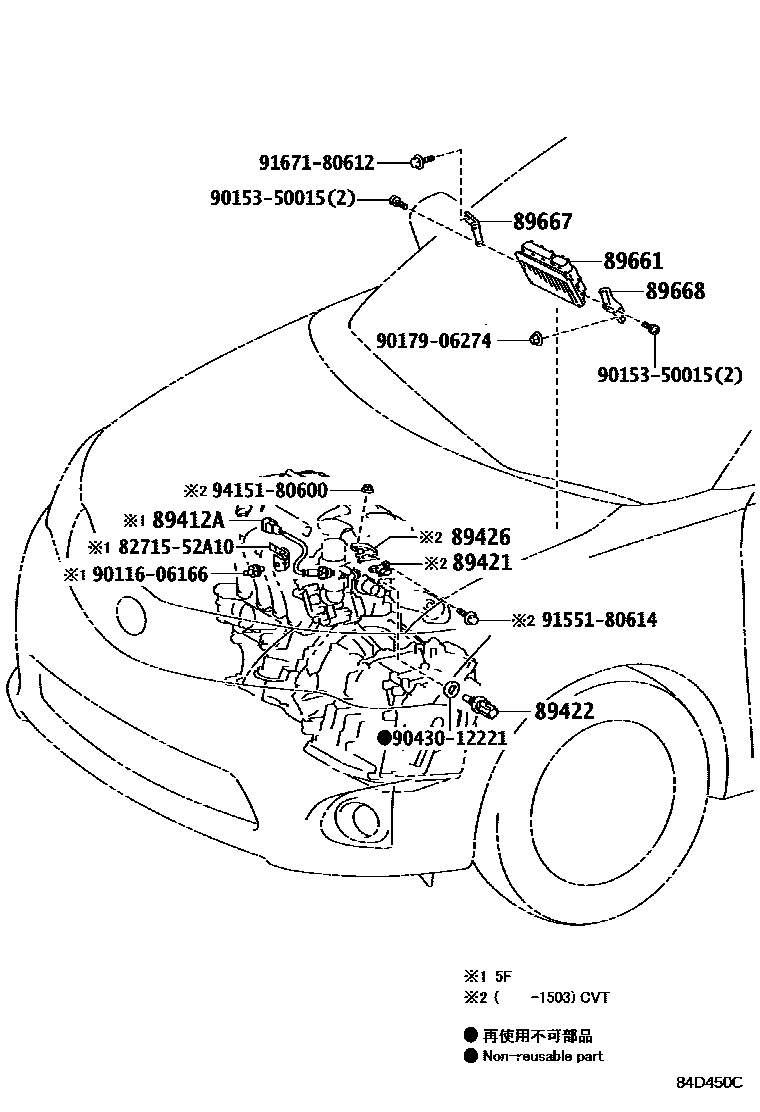

Toyota COROLLA/AXIO — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-35020iNZE161201503-201710

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNZE161..CVT201206-201503

main89421-47010iNRE161201503-201710

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNZE161201204-201503

89426BRACKET, VACUUM SENSOR

main89426-12260iNZE161..CVT201206-201503

89661COMPUTER, ENGINE CONTROL

main89661-12S50iNRE161201503-201710

main89661-12S60iNZE161201710-201908

FUJITSU TEN

main89661-12S90iNZE161..CVT201206-201211

main89661-12S91iNZE161..CVT201212-201503

main89661-12T10iNZE161..5F201204-201503

main89661-1AA30iNRE161201710-201908

FUJITSU TEN

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52340iNZE161201204-201503

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52350iNZE161201204-201503

8271552A10BRACKET,WIRING HARNESS CLAMP

main82715-52A10

9011606166

main90116-06166

9015350015

main90153-50015

9017906274

main90179-06274

9043012221

main90430-12221

9155180614

main91551-80614

9167180612

main91671-80612

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
