Toyota COROLLA/AXIO — DECK BOARD & DECK TRIM COVER
58411ABOARD, DECK, NO.1
DARK GRAY,TRIM2#
58412ABOARD, DECK, NO.2
DARK GRAY,TRIM2#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58731CCAP, REAR ABSORBER
BLACK,TRIM2#
58732CCAP, REAR ABSORBER
BLACK,TRIM2#
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64726BCLIP, DECK REAR TRIM
BLACK
BLACK
64726ERETAINER, DECK TRIM REAR COVER
64730CBOARD, DECK TRIM SIDE, RH
DARK GRAY,TRIM2#
DARK GRAY,TRIM2#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64740CPANEL ASSY, DECK TRIM SIDE, LH
DARK GRAY,TRIM2#
DARK GRAY,TRIM2#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM2#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM2#
64910JCOVER ASSY, TONNEAU
BLACK,TRIM2#
64995BOX, DECK FLOOR, RH
BLACK,TRIM2#
64997BOX, DECK FLOOR, LH
BLACK,TRIM2#
BLACK,TRIM2#
66310HHOOK ASSY, ROPE
BLACK,TRIM2#
66310JHOOK ASSY, ROPE
BLACK,TRIM2#
72057ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
BLACK,TRIM2#
72058CLEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
BLACK,TRIM2#
72272CCLAMP, SEAT TRACK CONTROL CABLE
72597CBEZEL, RECLINING REMOTE CONTROL LEVER, RH
BLACK,TRIM2#
72598BBEZEL, RECLINING REMOTE CONTROL LEVER, LH
BLACK,TRIM2#
72704ECABLE, REAR SEAT RECLINING CONTROL
9010506277
main90105-06277
9011906368
main90119-06368
9011906840
main90119-06840
9015960008
main90159-60008
9018906228
main90189-06228
9356014010
main93560-14010

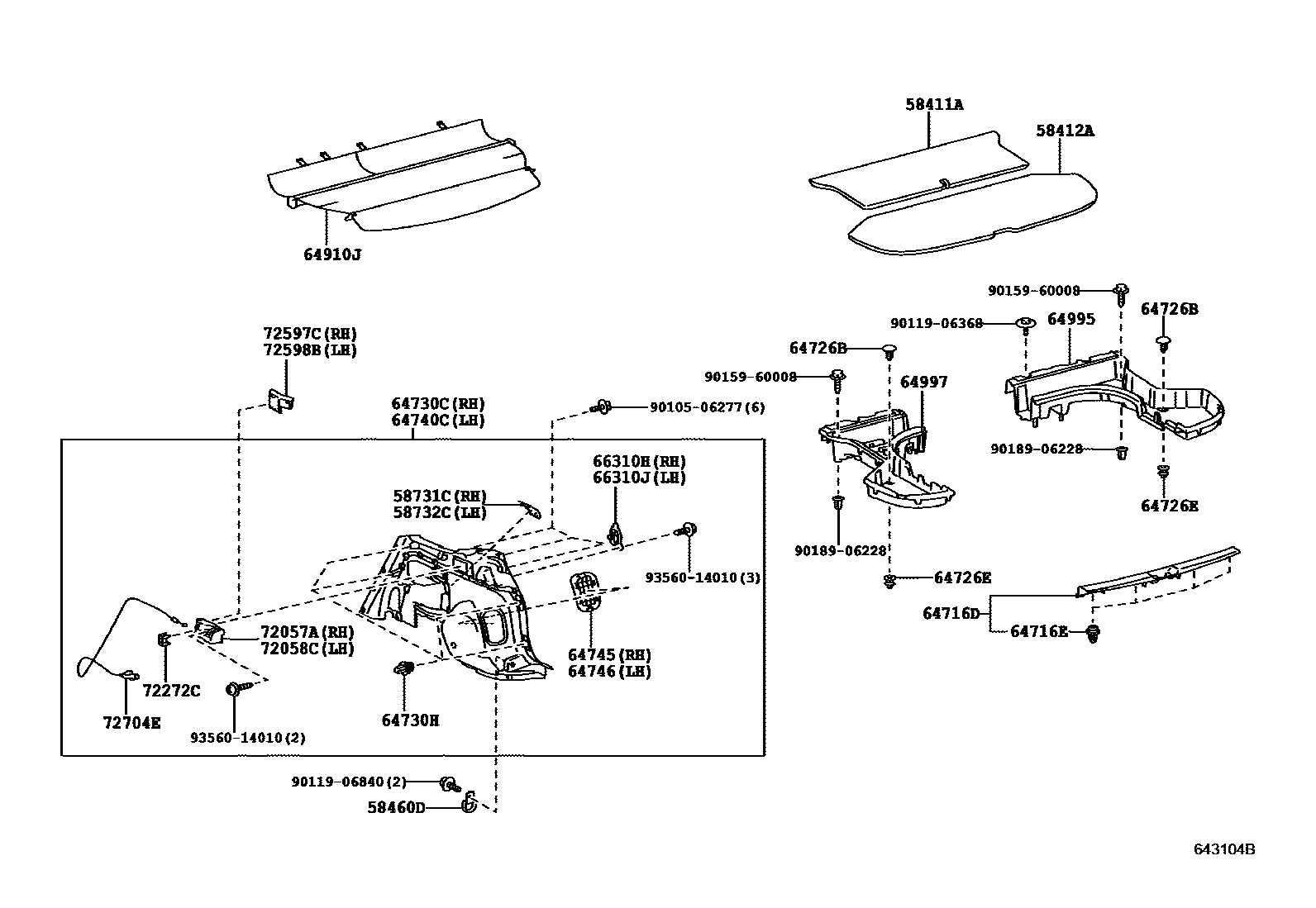

31 parts on this diagram · 1 diagram in section
DECK BOARD & DECK TRIM COVER for Toyota COROLLA/AXIO
This section contains 31 genuine Toyota parts for the DECK BOARD & DECK TRIM COVER system of the Toyota COROLLA/AXIO. Key components include: BOARD, DECK, NO.1, BOARD, DECK, NO.2, STRIKER ASSY, LUGGAGE HOLD BELT, CAP, REAR ABSORBER.
