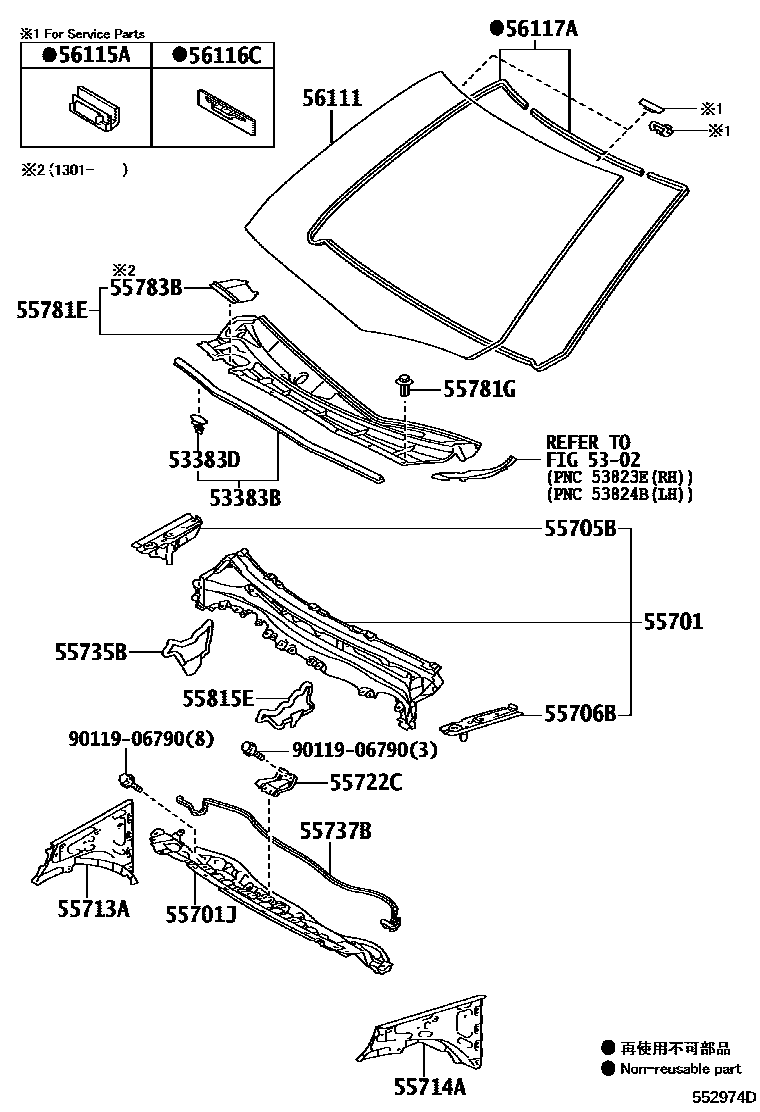

Toyota COROLLA/AXIO — COWL PANEL & WINDSHIELD GLASS
5302
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55701PANEL SUB-ASSY, COWL
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55722CBRACE, COWL TOP TO COWL, INNER
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
9011906790
main90119-06790
21 parts on this diagram · 4 diagrams in section
