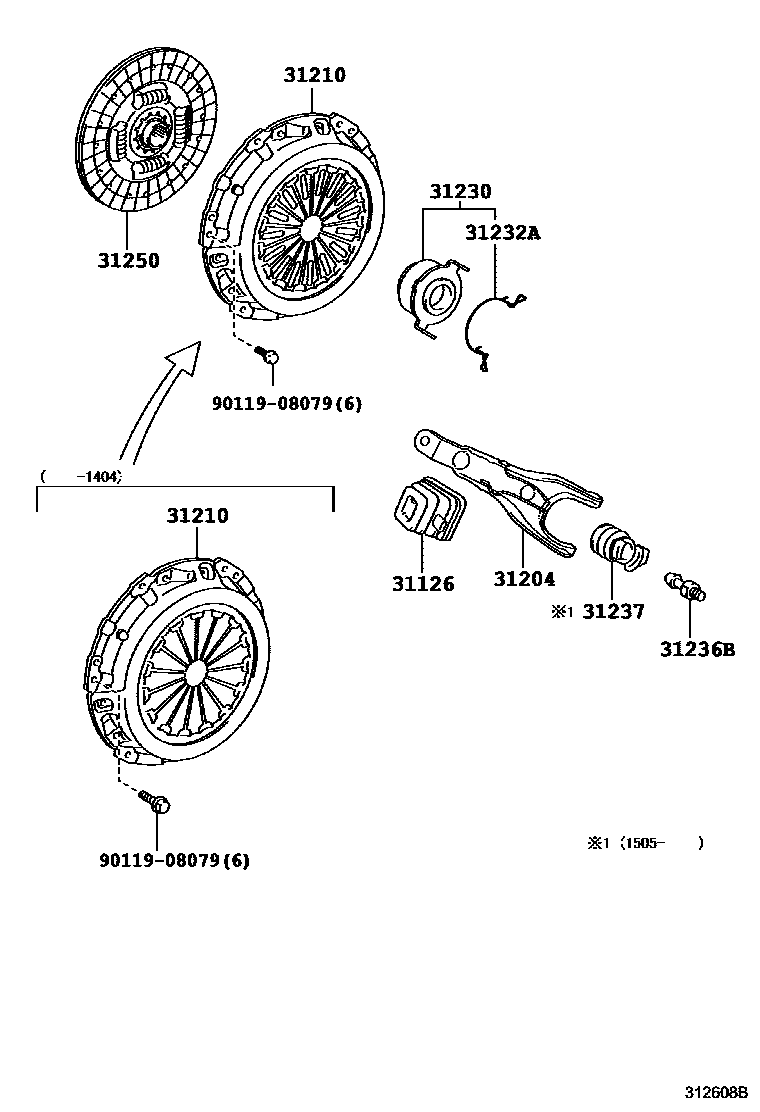

Toyota COROLLA/AXIO — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNZE161..5F201204-201503

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNZE161..5F201204-201503

31210COVER ASSY, CLUTCH

main31210-52053iNZE161..5F201204-201404

main31210-52180iNZE161..5F201404-201503

31230BEARING ASSY, CLUTCH RELEASE

main31230-12181iNZE161..5F201204-201503

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNZE161..5F201204-201503

31236BSUPPORT, RELEASE FORK

main31236-12020iNZE161..5F201204-201503

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-52010iNZE161201505-201710

31250DISC ASSY, CLUTCH

main31250-52050iNZE161..5F201204-201503

9011908079

main90119-08079

9 parts on this diagram · 1 diagram in section
