Toyota COROLLA/AXIO — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-52130i201503-201710

74410CARRIER ASSY, BATTERY

main74410-52051i201204-201503

74431TRAY, BATTERY

main74431-52111i201503-201710

main74431-52121i201710-201908

74451BBOLT, BATTERY CLAMP

main74451-52070i201204-201205

main74451-52071i201710-201908

9011908C15

main90119-08C15

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section

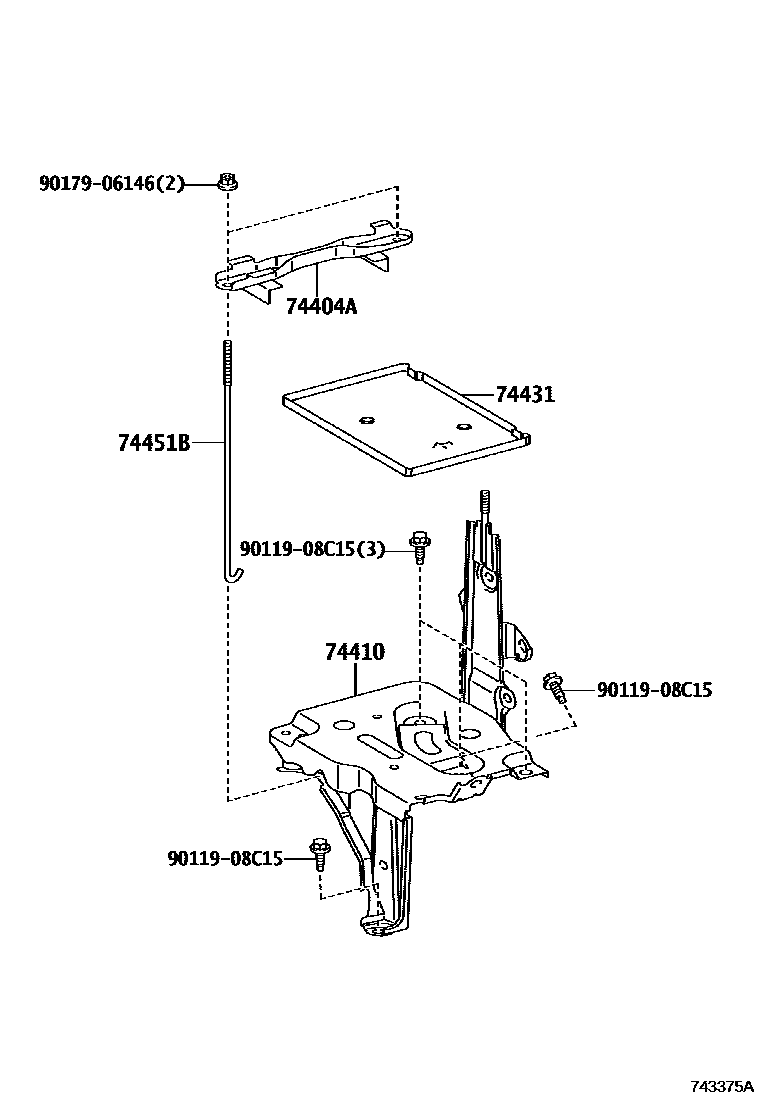

BATTERY CARRIER for Toyota COROLLA/AXIO

This section contains 6 genuine Toyota parts for the BATTERY CARRIER system of the Toyota COROLLA/AXIO. Key components include: CLAMP SUB-ASSY, BATTERY, CARRIER ASSY, BATTERY, TRAY, BATTERY, BOLT, BATTERY CLAMP.
