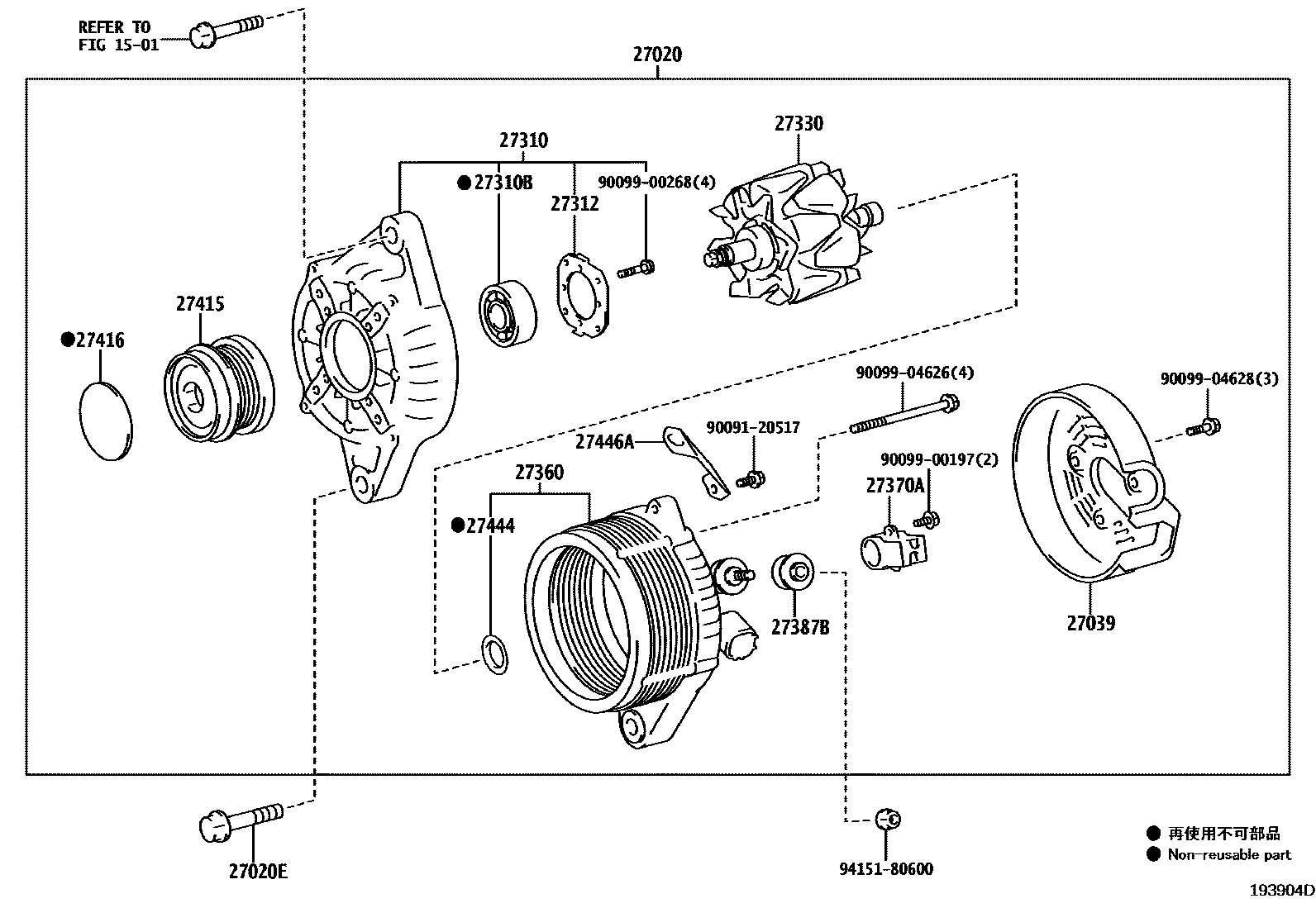

Toyota COROLLA/AXIO — ALTERNATOR

0001 112V 80A 0002 112V 80A 0004 112V 100A

1501

27020ALTERNATOR ASSY

main27060-21180i1NZFE..NZE161..CVT201206-201503

12V 80A

sub27060-21181

main27060-21200i1NZFE..NZE161201503-201710

12V 80A

sub27060-21201

main27060-47270i2NRFKE..NRE161201503-201710

12V 100A

main27060-47290i2NRFKE..NRE161201710-201908

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1NZFE..NZE161201710-201908

27039COVER, ALTERNATOR REAR END

main27039-47310i1NZFE..NZE161201204-201503

main27039-47330i2NRFKE..NRE161201503-201710

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-21210i1NZFE..NZE161201204-201503

sub27310-21211

main27310-47330i2NRFKE..NRE161201503-201710

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i2NRFKE..NRE161201503-201710

main90099-10227i1NZFE..NZE161201503-201710

27312PLATE, RETAINER

main27312-72100i1NZFE,2NRFKE..NRE161,NZE161201710-201908

27330ROTOR ASSY, ALTERNATOR

main27330-47310i1NZFE..NZE161201710-201908

main27330-47330i2NRFKE..NRE161201503-201710

27360COIL ASSY, ALTERNATOR

main27360-21210i1NZFE..NZE161201503-201710

sub27360-21211

sub27039-21211

main27360-47411i2NRFKE..NRE161201710-201908

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i1NZFE,2NRFKE..NRE161,NZE161201503-201710

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2NRFKE..NRE161201503-201710

main27387-47310i1NZFE..NZE161201503-201710

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0M010i1NZFE..NZE161..CVT201206-201305

main27415-0M011i1NZFE..NZE161..CVT201306-201503

main27415-0Y061i2NRFKE..NRE161201503-201710

main27415-47070i2NRFKE..NRE161201710-201908

MARK = YD

27416CAP, ALTERNATOR PULLEY

main27416-0W050i1NZFE..NZE161..CVT201206-201503

main27416-47010i2NRFKE..NRE161201710-201908

MARK = YD

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i1NZFE..NZE161201204-201503

27446ACLAMP

main27446-21020i1NZFE..NZE161201204-201503

9009120517

main90091-20517

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904628

main90099-04628

9415180600

main94151-80600

21 parts on this diagram · 3 diagrams in section
