Toyota COROLLA/AXIO — AIR PURIFIER OR ION GENERATOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main87201-12650i201212-201503

88051BGENERATOR SUB-ASSY, ION, NO.1

main88051-52020i201212-201503

9356855014

main93568-55014

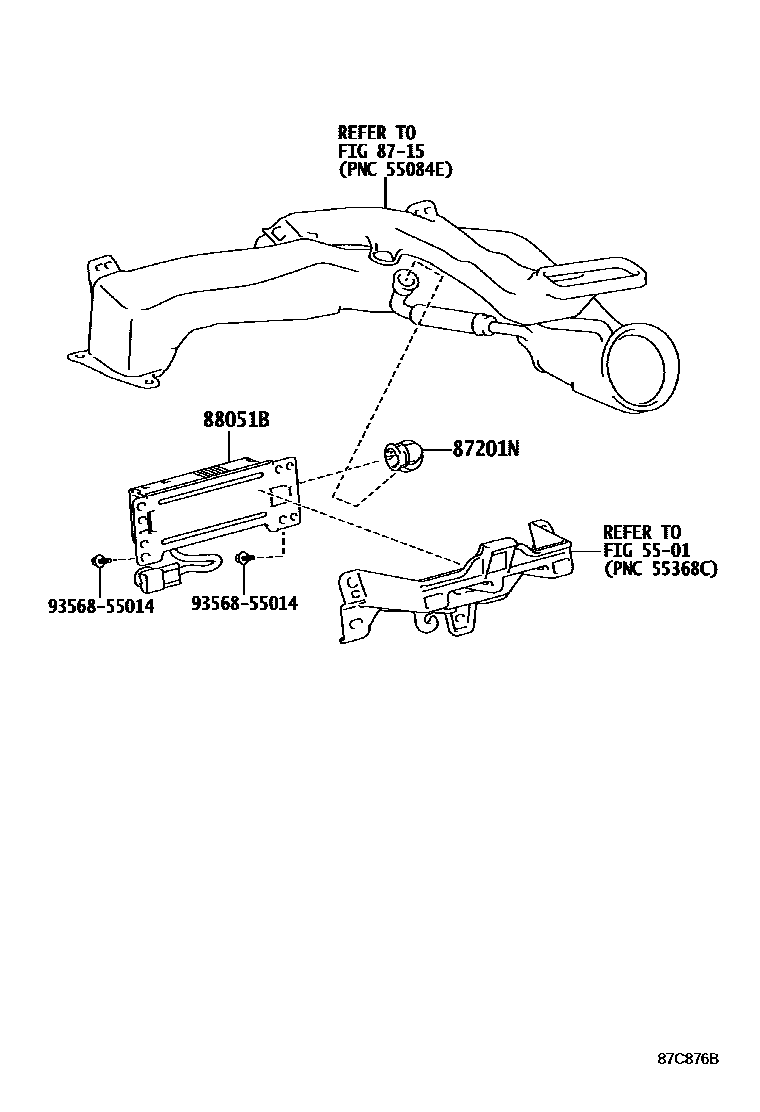

5 parts on this diagram · 1 diagram in section

AIR PURIFIER OR ION GENERATOR for Toyota COROLLA/AXIO

This section contains 5 genuine Toyota parts for the AIR PURIFIER OR ION GENERATOR system of the Toyota COROLLA/AXIO. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT, DUCT SUB-ASSY, AIR, GENERATOR SUB-ASSY, ION, NO.1.
