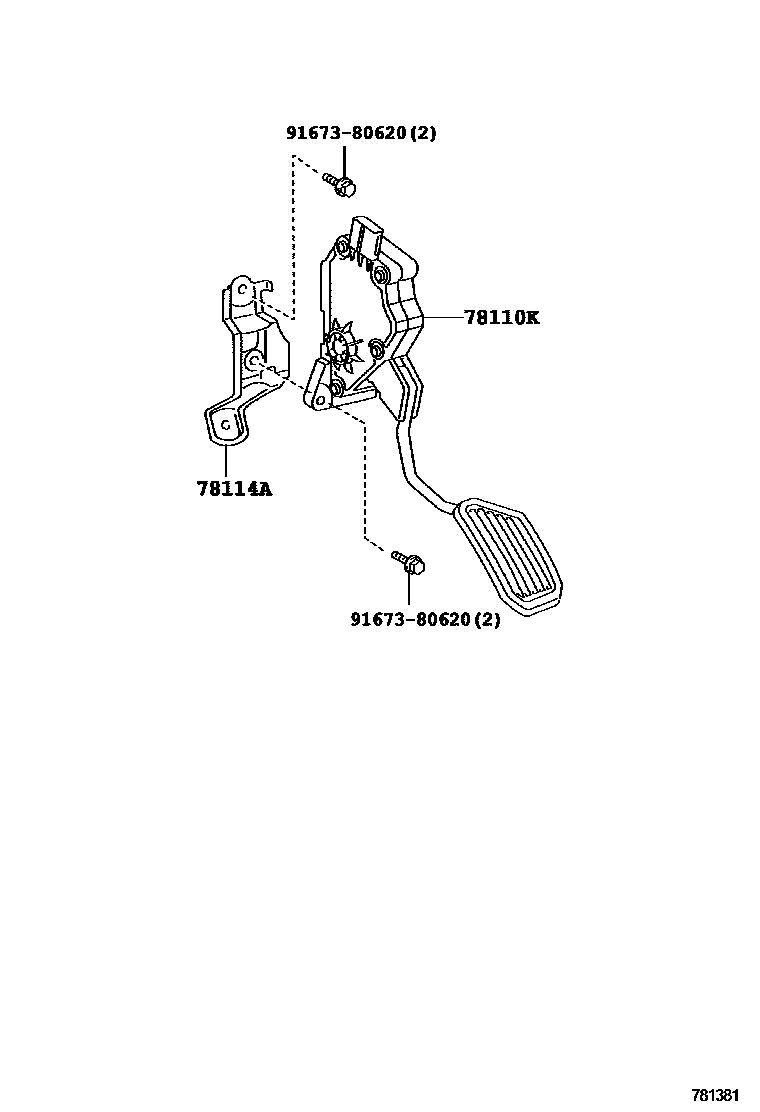

Toyota COROLLA/AXIO — ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-52033iNZE161201204-201212

main78110-52100iNZE161201301-201503

sub78110-52210

main78110-52110iNRE161,NZE161201503-201601

main78110-52220iNRE161,NZE161201602-201710

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-52020iNZE161201204-201503

9167380620

main91673-80620

3 parts on this diagram · 1 diagram in section
