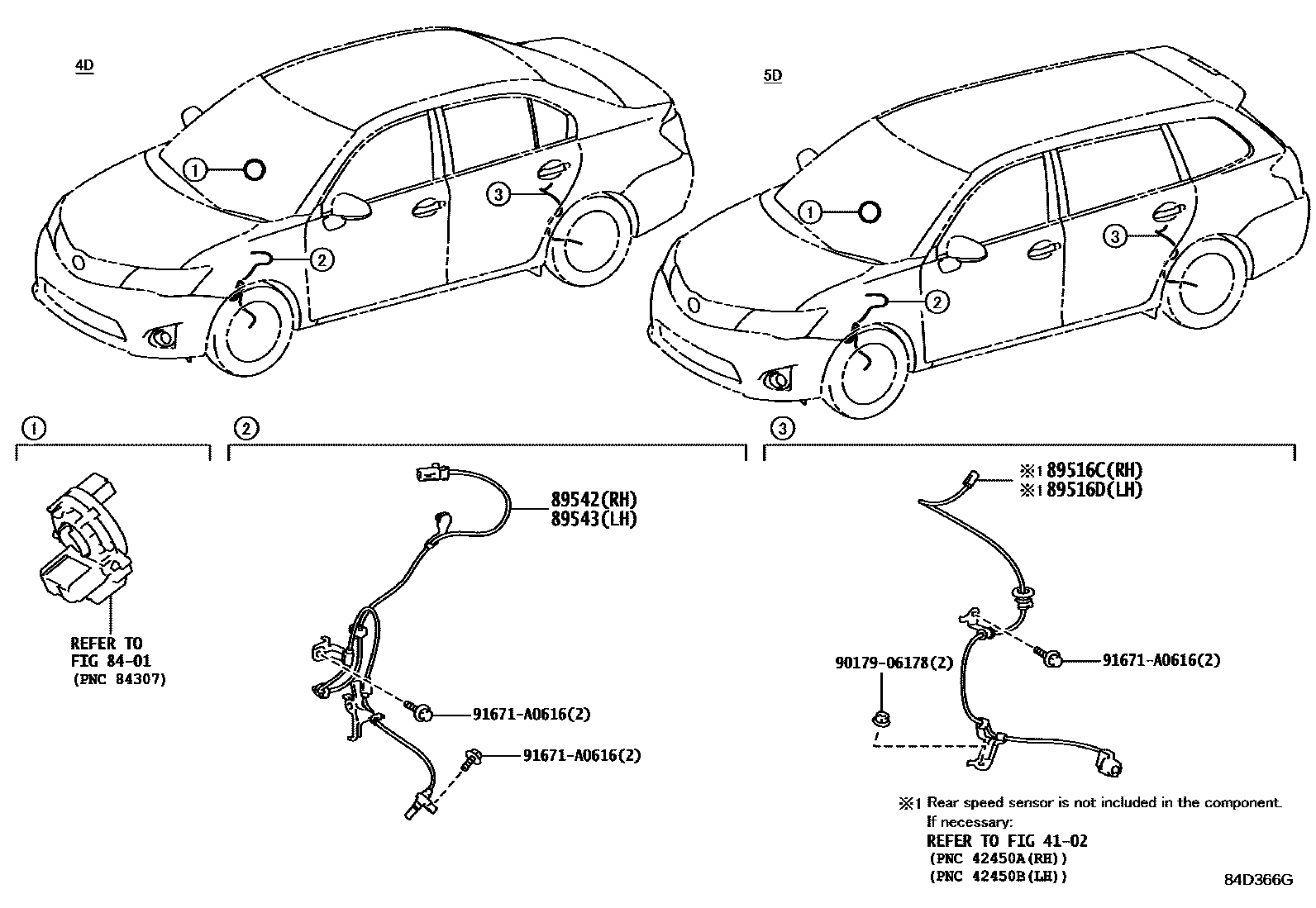

Toyota COROLLA/AXIO — ABS & VSC

4102

8401

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-52130iNZE161201204-201503

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-52140iNZE161201204-201503

89542SENSOR, SPEED, FRONT RH

main89542-52100iNZE161201204-201503

89543SENSOR, SPEED, FRONT LH

main89543-52100iNZE161201204-201503

9017906178

main90179-06178

91671A0616

main91671-A0616

8 parts on this diagram · 1 diagram in section
