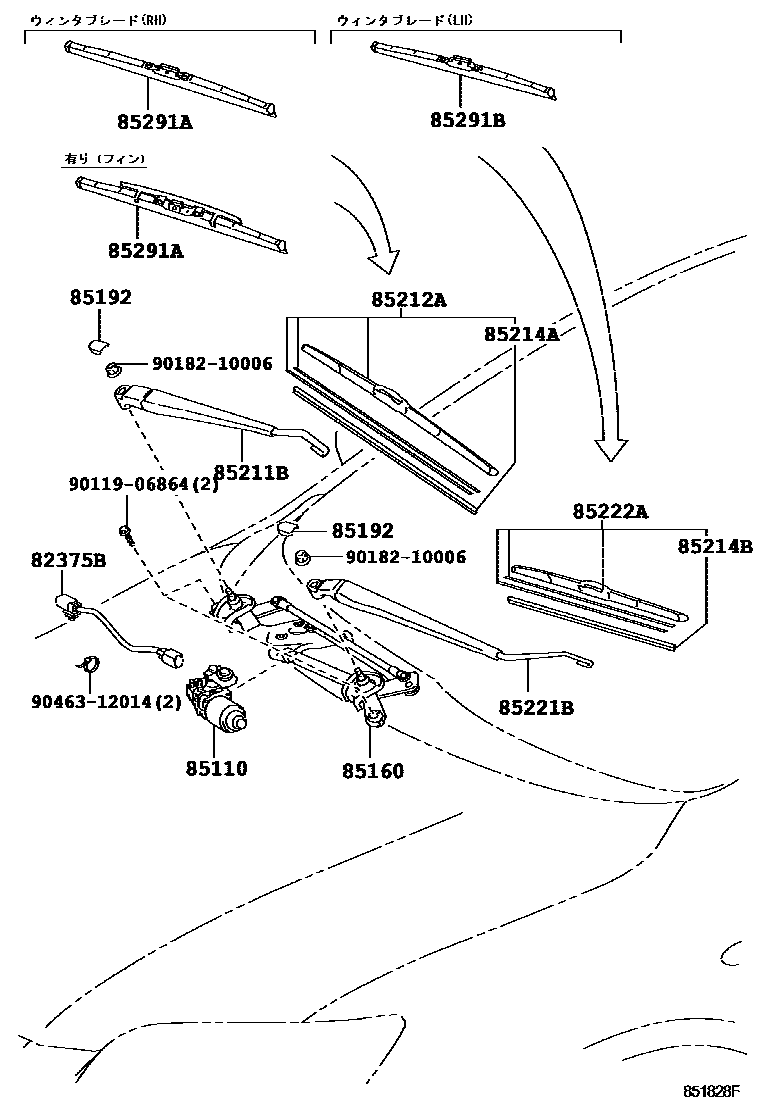

Toyota COROLLA AXIO/FIELDER — WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-12310i200810-200905

main82375-12311i200906

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12A40supersedes 85110-12A50i200810

main85110-12A70supersedes 85110-12A50i200609-200801

main85110-12B00supersedes 85110-12A50i200802-200810

85160LINK ASSY, WINDSHIELD WIPER

main85150-12A60i200609-200810

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i200609-200810

85211BARM, FRONT WIPER, RH

main85211-12550i200609-200810

85212ABLADE, FR WIPER, RH

main85212-12490i200609-200810

85214ARUBBER, WIPER, RH

main85214-68020i200609-200810

85214BRUBBER, WIPER, LH

main85214-68030i200609-200810

85221BARM, FRONT WIPER, LH

main85221-12490i200609-200810

85222ABLADE, FR WIPER, LH

main85222-12860i200609-200810

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-12090i200710-200810

main85291-44070i200609-200709

main85291-44090i200609-200709

main85291-72010i200710-200810

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-28120i200609-200810

9011906864

main90119-06864

9018210006

main90182-10006

9046312014

main90463-12014

15 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COROLLA AXIO/FIELDER

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA AXIO/FIELDER. Key components include: WIRE, WIPER MOTOR, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
