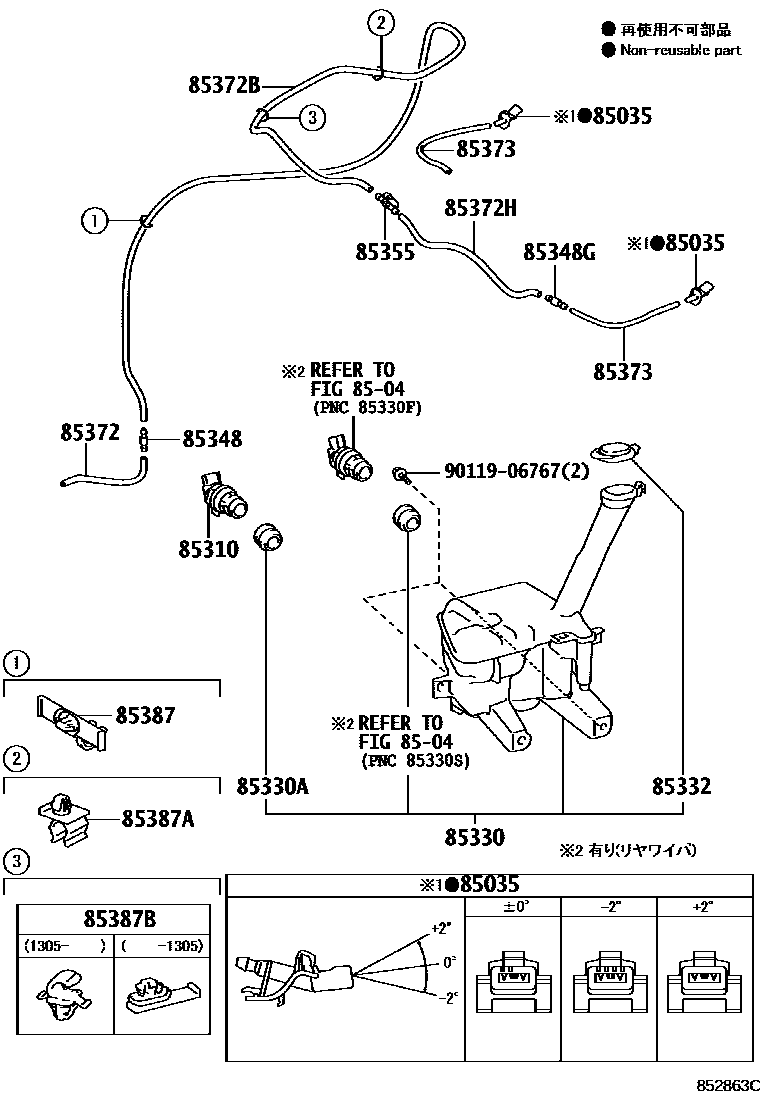

Toyota COROLLA AXIO/FIELDER — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2i201503-201710

main85381-12410×2i201204-201503

main85381-12420×2i201503-201710

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201204-201503

85330JAR ASSY, WINDSHIELD WASHER

main85315-52400i201710

main85315-52420supersedes 85315-52400i201204-201503

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201204-201503

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i201710-201908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201204-201503

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i201204-201503

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201204-201503

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201204-201503

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33589i201204-201305

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i201204-201503

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201204-201503

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-35750i201204-201503

85387ACLAMP, WASHER, NO.2

main85371-32020i201204-201503

85387BCLAMP, WASHER, NO.3

main82711-52090i201204-201305

main85371-12040i201305-201503

9011906767

main90119-06767

17 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA AXIO/FIELDER

This section contains 17 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA AXIO/FIELDER. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
