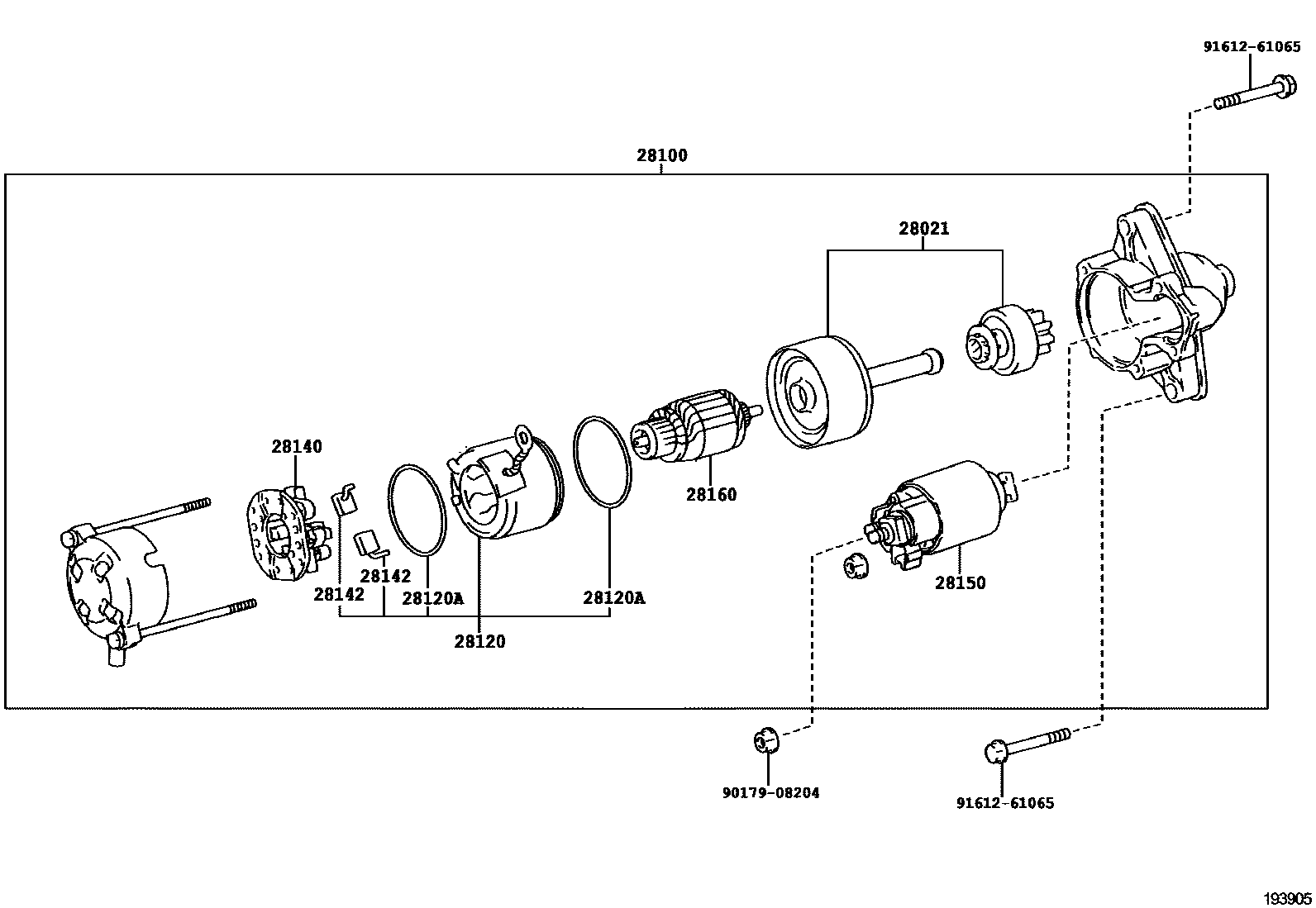

Toyota COROLLA AXIO/FIELDER — STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
28100STARTER ASSY
28120YOKE ASSY, STARTER
28120ARING, O(FOR STARTER YOKE)
28140HOLDER ASSY, STARTER BRUSH
28142BRUSH, STARTER
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
9017908204
main90179-08204
9161261065
main91612-61065
10 parts on this diagram · 8 diagrams in section
STARTER for Toyota COROLLA AXIO/FIELDER
This section contains 26 genuine Toyota parts for the STARTER system of the Toyota COROLLA AXIO/FIELDER. Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, PIN, STARTER DRIVE LEVER SET, YOKE ASSY, STARTER.
