Toyota COROLLA AXIO/FIELDER — SIDE MOULDING

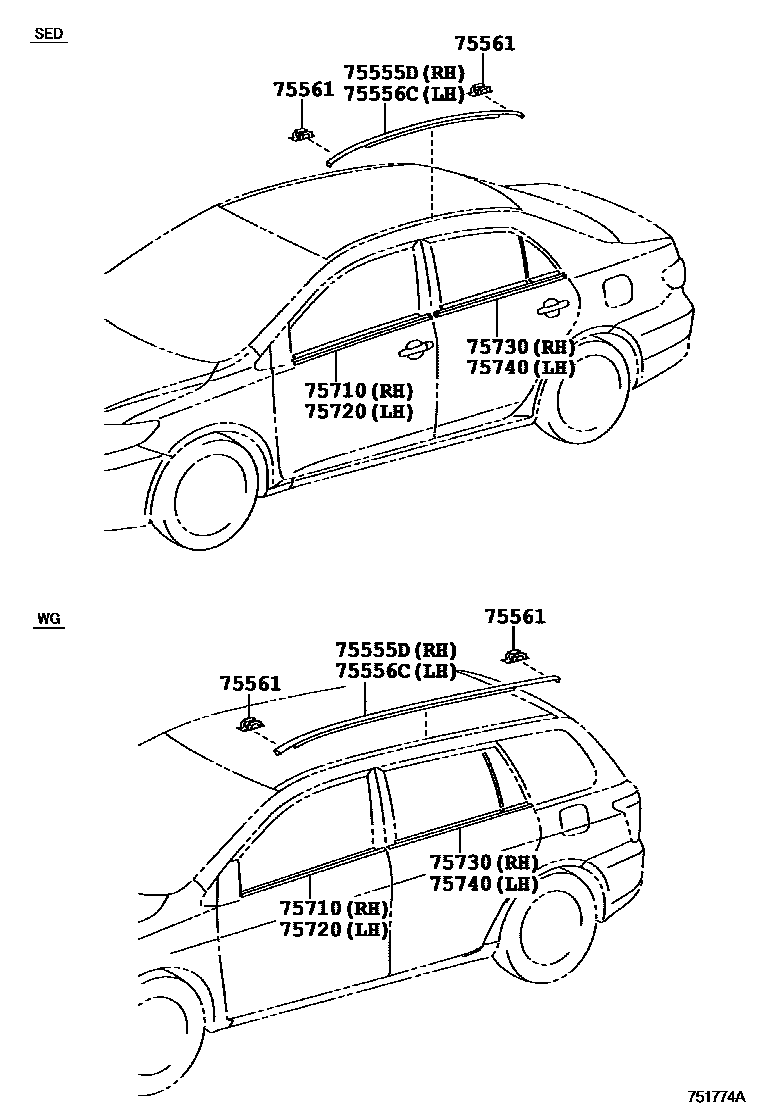

Parts diagram

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-12150i200609-200810

main75555-13030i200609-200810

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-12160i200810

main75556-13030i200810

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52040×4i200810

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12800i200609-200810

main75710-12810i200609-200810

main75710-12840i200810

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12800i200609-200810

main75720-12810i200609-200810

main75720-12840i200810

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-12320i200810

main75730-12330i200609-200810

main75730-12370i200810

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-12410i200609-200810

main75740-12420i200609-200810

main75740-12450i200810

7 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota COROLLA AXIO/FIELDER

This section contains 7 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA AXIO/FIELDER. Key components include: MOULDING, ROOF DRIP SIDE FINISH, CENTER RH, MOULDING, ROOF DRIP SIDE FINISH, CENTER LH, CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1, MOULDING ASSY, FRONT DOOR BELT, RH, MOULDING ASSY, FRONT DOOR BELT, LH.
