Toyota COROLLA AXIO/FIELDER — SIDE MEMBER

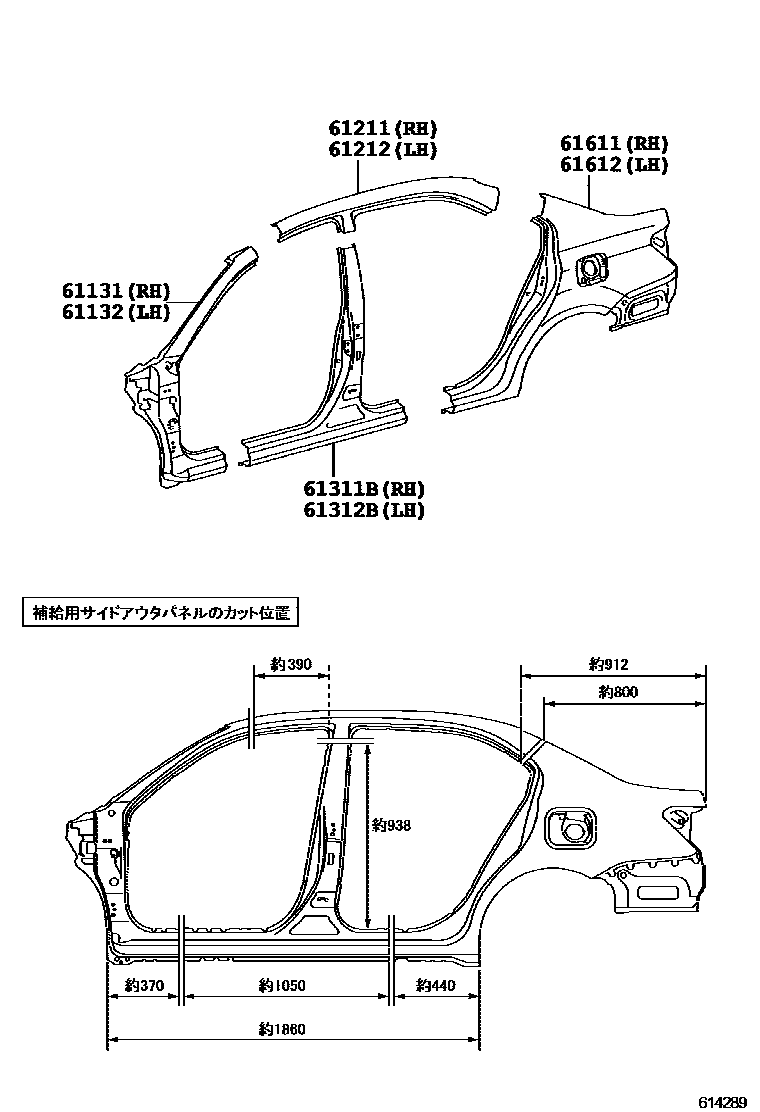

Parts diagram

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12800i201710

main61131-13110i201503-201710

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12780i201204-201503

main61132-13110i201503-201710

61211RAIL, ROOF SIDE, OUTER RH

main61213-12030i201503-201710

main61213-13020i201710

61212RAIL, ROOF SIDE, OUTER LH

main61214-12030i201710

main61214-13020i201503-201710

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12480i201710-201908

main61311-13080i201503-201710

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12520i201204-201503

main61312-13080i201212-201503

61611PANEL, QUARTER, RH

main61601-12B20i201204-201503

main61601-13700i201503-201710

main61601-12B30i201710-201908

main61601-13710i201503-201710

61612PANEL, QUARTER, LH

main61602-12B20i201710-201908

main61602-13760i201204-201503

main61602-12B30i201609-201610

main61602-13770i201503-201710

8 parts on this diagram · 6 diagrams in section

SIDE MEMBER for Toyota COROLLA AXIO/FIELDER

This section contains 61 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA AXIO/FIELDER. Key components include: HOLE PLUG, PROTECTOR, QUARTER PANEL, FRONT RH, PROTECTOR, QUARTER PANEL, FRONT LH, REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH.
