Toyota COROLLA AXIO/FIELDER — SIDE MEMBER

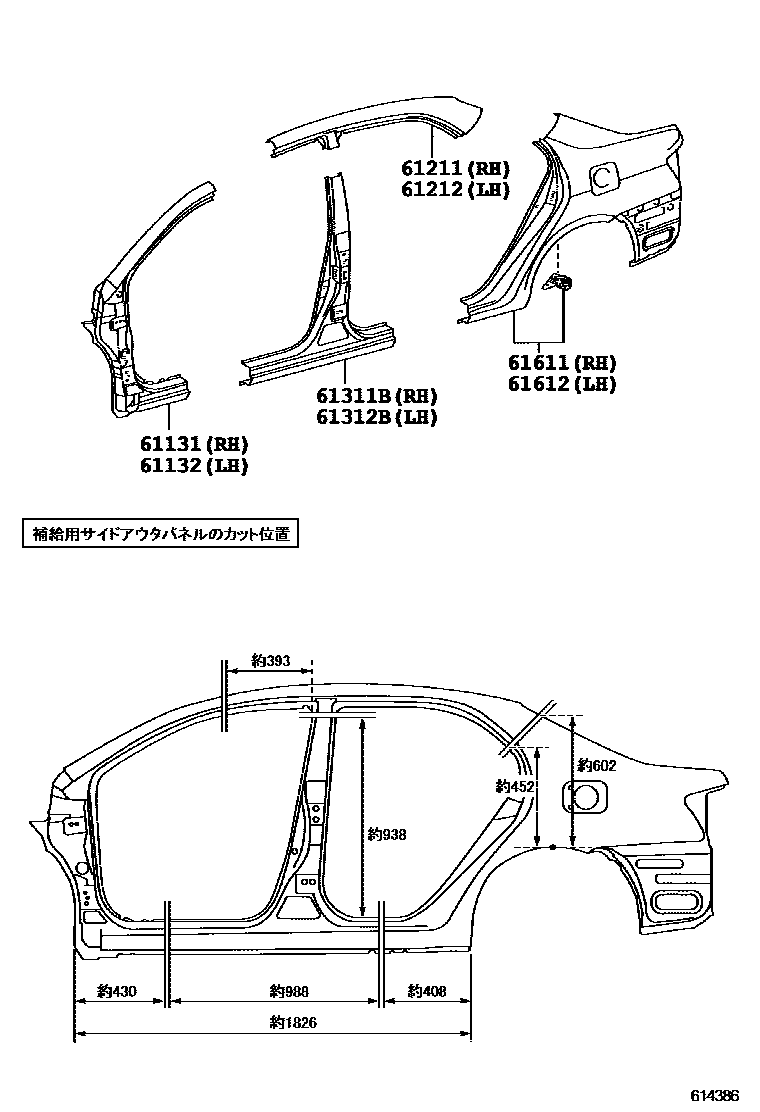

Parts diagram

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12750i200609-200810

main61131-13100i201005

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12730i200609-200810

main61132-13100i200609-200810

61211RAIL, ROOF SIDE, OUTER RH

main61211-12500i200609-200810

main61211-13110i200810

61212RAIL, ROOF SIDE, OUTER LH

main61212-12500i200609-200810

main61212-13110i200810

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12430i200609-200810

main61311-13070i201005

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12470i200609-200810

main61312-13070i200810

61611PANEL, QUARTER, RH

main61601-12A30i200810

main61601-13680i201005

61612PANEL, QUARTER, LH

main61602-12A30i200810

main61602-13740supersedes 61602-13750i200810

8 parts on this diagram · 6 diagrams in section

SIDE MEMBER for Toyota COROLLA AXIO/FIELDER

This section contains 85 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA AXIO/FIELDER. Key components include: COWL PANEL & WINDSHIELD GLASS, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH, HOLE PLUG, PROTECTOR, QUARTER PANEL, RH.
