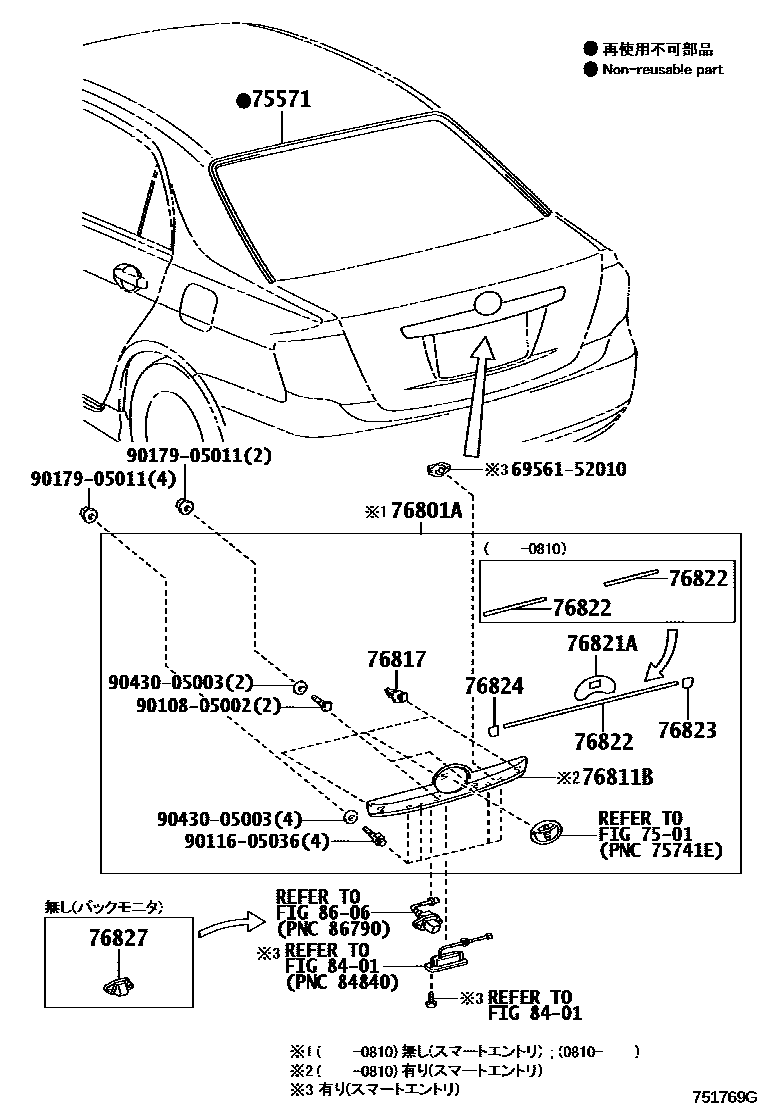

Toyota COROLLA AXIO/FIELDER — REAR MOULDING
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACK,202
RED M.M.,3R3
COPPER ME.,4T4
BRONZE M.M.,4T3
GOLD M.M.,5A5
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
BLUE ME.,8T7
LT.BLUE M.M.,8S1
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BEIGE M. M.,4Q2
LT.GREEN ME.,6U6
DK.BLUE MC.,8S6
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
DK.GRAY MC.,1E0
BLACK MC.,209
DK RED MC,3Q7
BEIGE ME.,4T8
DK.BLUE MC.,8S6
76811BGARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BEIGE M. M.,4Q2
LT.GREEN ME.,6U6
DK.BLUE MC.,8S6
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76827RETAINER, BACK DOOR GARNISH, NO.2
8401SWITCH & RELAY & COMPUTER
8606CAMERA & REAR MONITOR DISPLAY
6956152010RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
main69561-52010
9010805002
main90108-05002
9011605036
main90116-05036
9017905011
main90179-05011
9043005003
main90430-05003
18 parts on this diagram · 3 diagrams in section
REAR MOULDING for Toyota COROLLA AXIO/FIELDER
This section contains 23 genuine Toyota parts for the REAR MOULDING system of the Toyota COROLLA AXIO/FIELDER. Key components include: EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), FRAME SUB-ASSY, REAR LICENSE PLATE, MOULDING, BACK WINDOW, OUTSIDE UPPER, GARNISH SUB-ASSY, BACK DOOR, OUTSIDE, GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE.
