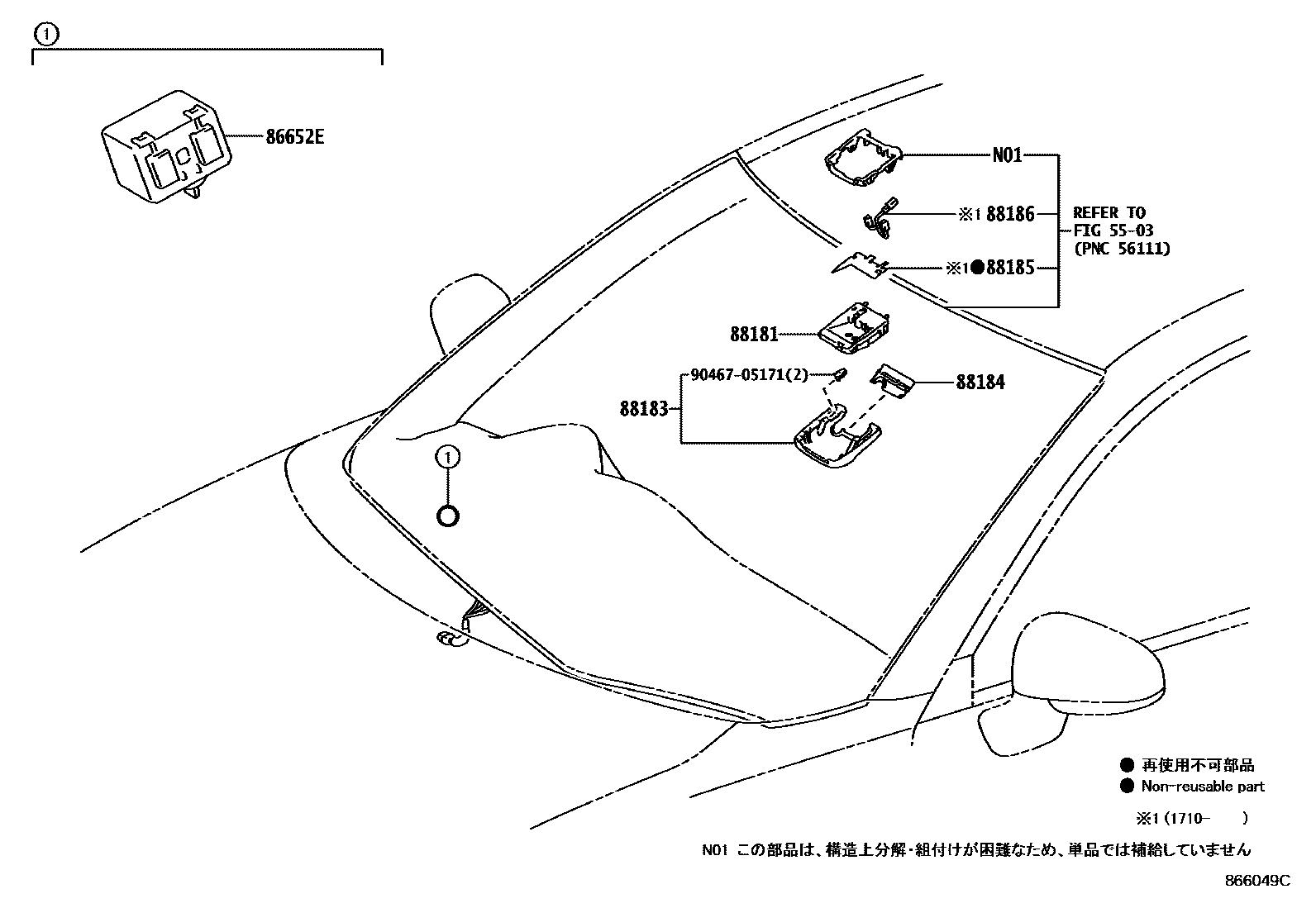

Toyota COROLLA AXIO/FIELDER — PRE-COLLISION SYSTEM

5503

86652EBUZZER, PRE-COLLISION CITY

main86652-50010iNKE165,NRE16#,NZE16#,ZRE162201503-201710

88181SENSOR, PRE-COLLISION CITY

main88181-12010iNKE165,NRE161,NZE16#..SED,WG202208

main88181-12040iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201710-201908

main88181-0W020iNKE165,NRE16#,NZE16#,ZRE162201503-201612

main88181-12030iNKE165,NRE16#,NZE16#,ZRE162201612-201710

88183COVER, PRE-COLLISION CITY

main88183-12030iNKE165,NRE161,NZE16#..SED,WG202208

main88183-12010iNKE165,NRE16#,NZE16#,ZRE162201503-201710

88184COVER, PRE-COLLISION CITY, 2ND

main88184-12010iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201710-202403

88185HEATER, PRE-COLLISION CITY

main88185-28010iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201710

88186WIRE, PRE-COLLISION CITY HEATER

main88186-12020iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S201710

9046705171

main90467-05171

8 parts on this diagram · 1 diagram in section
