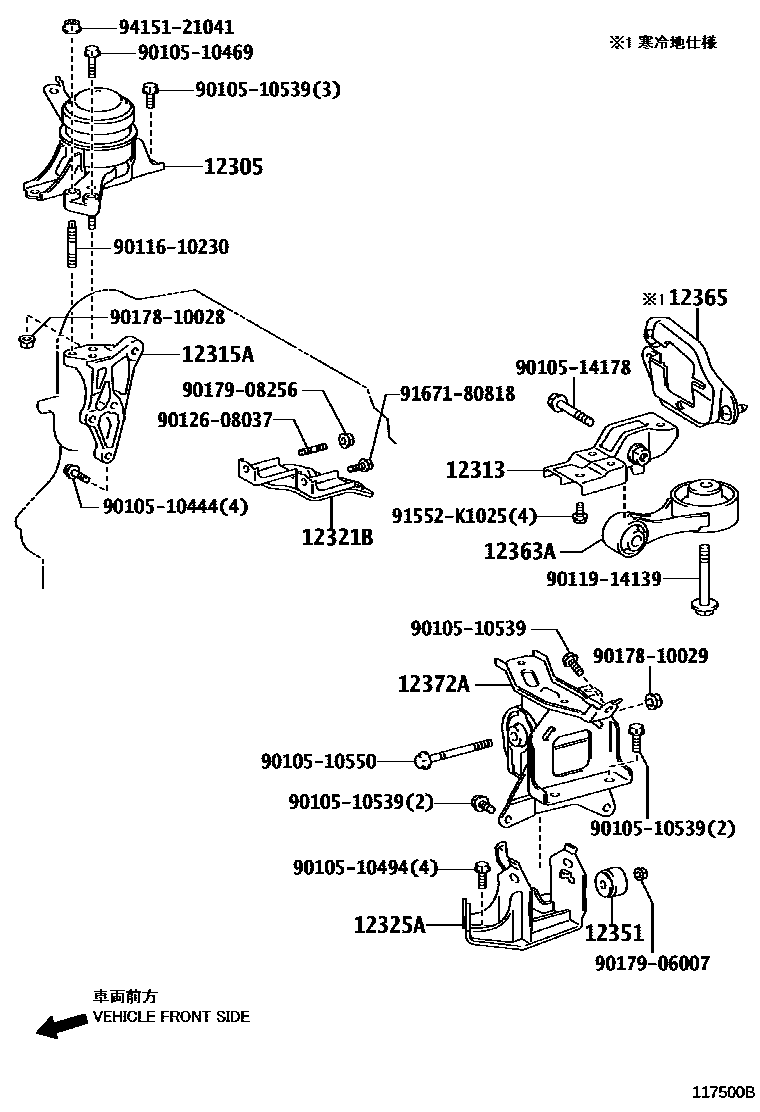

Toyota COROLLA AXIO/FIELDER — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12363AROD, ENGINE MOVING CONTROL
12365COVER, ENGINE MOVING CONTROL ROD
main12365-40010i1NZFE,2NRFKE..NRE161,NZE16#..G;1NZFXE,1NRFE..NKE165,NRE160..HBDG,X; 2ZRFAE..ZRE162201710-201908
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510444
main90105-10444
9010510469
main90105-10469
9010510494
main90105-10494
9010510539
main90105-10539
9010510550
main90105-10550
9010514178
main90105-14178
9011610230
main90116-10230
9011914139
main90119-14139
9012608037
main90126-08037
9017810028
main90178-10028
9017810029
main90178-10029
9017906007
main90179-06007
9017908256
main90179-08256
91552K1025
main91552-K1025
9167180818
main91671-80818
9415121041
main94151-21041
25 parts on this diagram · 6 diagrams in section
MOUNTING for Toyota COROLLA AXIO/FIELDER
This section contains 47 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA AXIO/FIELDER. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, INSULATOR SUB-ASSY, ENGINE MOUNTING, LH, BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, RH.
