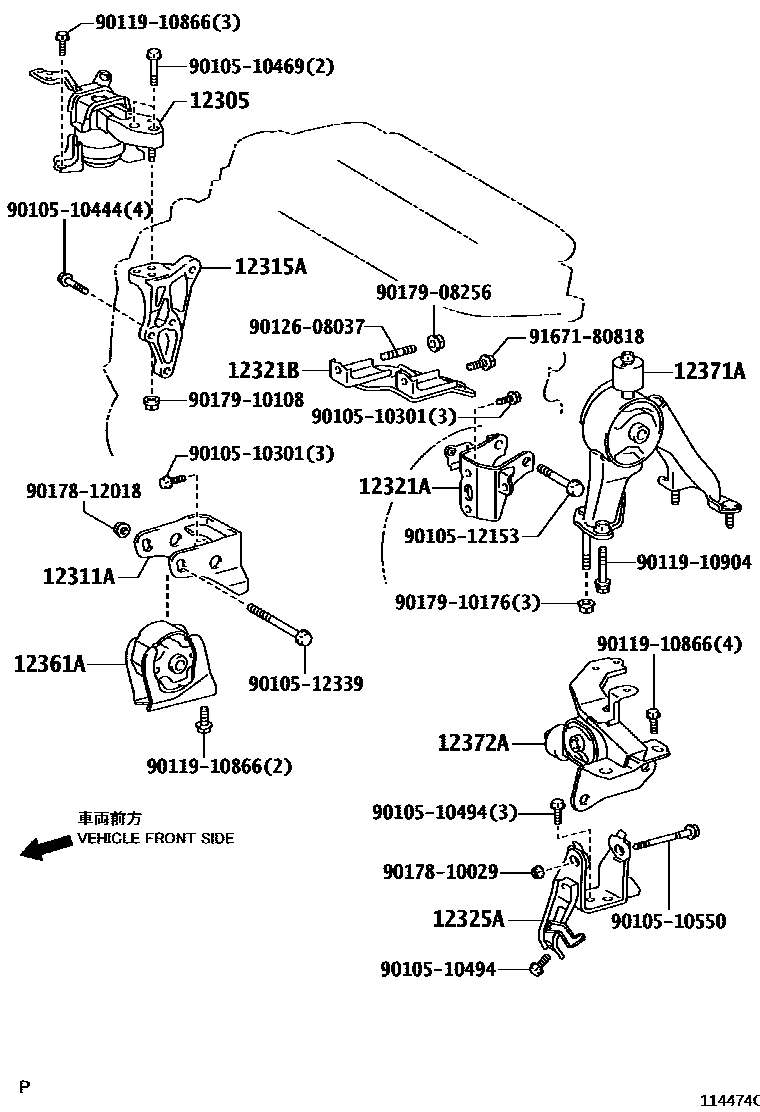

Toyota COROLLA AXIO/FIELDER — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510301
main90105-10301
9010510444
main90105-10444
9010510469
main90105-10469
9010510494
main90105-10494
9010510550
main90105-10550
9010512153
main90105-12153
9010512339
main90105-12339
9011910866
main90119-10866
9011910904
main90119-10904
9012608037
main90126-08037
9017810029
main90178-10029
9017812018
main90178-12018
9017908256
main90179-08256
9017910108
main90179-10108
9017910176
main90179-10176
9167180818
main91671-80818
25 parts on this diagram · 4 diagrams in section
MOUNTING for Toyota COROLLA AXIO/FIELDER
This section contains 39 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA AXIO/FIELDER. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), INSULATOR SUB-ASSY, DRIVE SHAFT HEAT.
