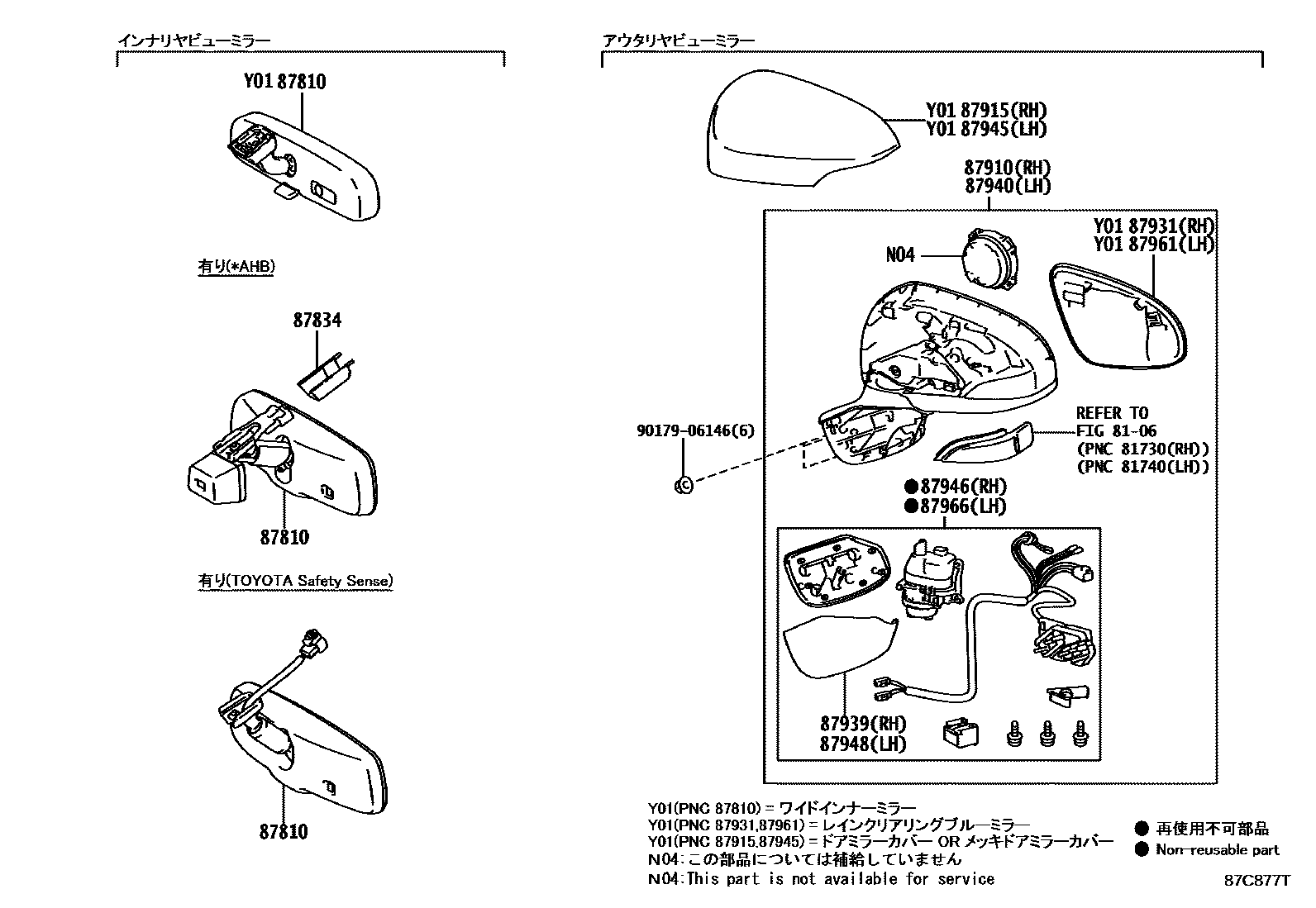

Toyota COROLLA AXIO/FIELDER — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-04010iNKE165,NZE16#..5D..(G,HBDG); NKE165,NZE16#..5D;NKE165,NZE16#..4D..(G,HBDG); NRE160; NZE16#,ZRE162..LXL,S201204-201503
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-12J90supersedes 87910-12J80iNKE165,NRE160,NZE16#..4D..(HBD,X); NKE165,NZE16#,ZRE162..G,HBDG,S; NKE165,NZE16#..5D..(HBD,X); NRE160201204-201503
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
MELLOW SILVER ME.,1J5
BLACK MC.,209
BLACKISH AGEHA GF.,221
BLACKISH RED MC.,3R0
SUPER RED 5,3P0
COOL BORDEAUX GF.,3T9
RED MC.,3T3
BRONZE M.M.,4T3
ORANGE ME.,4R8
VINTAGE BROWN PEARL CS.,4X4
DK.BLUE MC.,8S6
BLUE ME.,8T7
BLUE ME.,8N0
DK.BLUE M.M.,8W7
DK.VIOLET M.M.,9AF
AVANT-GARDE BRONZE ME.,4V8
87931OUTER MIRROR, RH
main87931-12J90supersedes 87931-52D70iNKE165,NRE160,NZE16#..4D..(HBD,X); NKE165,NZE16#,ZRE162..G,HBDG,LXL,S; NKE165,NZE16#..5D..(HBD,X); NRE160201204-201503
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-12J90supersedes 87940-12J80iNKE165,NRE160,NZE16#..4D..(HBD,X); NKE165,NZE16#,ZRE162..G,HBDG,S; NKE165,NZE16#..5D..(HBD,X); NRE160201204-201503
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
MELLOW SILVER ME.,1J5
BLACK MC.,209
BLACKISH AGEHA GF.,221
BLACKISH RED MC.,3R0
SUPER RED 5,3P0
COOL BORDEAUX GF.,3T9
RED MC.,3T3
BRONZE M.M.,4T3
ORANGE ME.,4R8
VINTAGE BROWN PEARL CS.,4X4
DK.BLUE MC.,8S6
BLUE ME.,8T7
BLUE ME.,8N0
DK.BLUE M.M.,8W7
DK.VIOLET M.M.,9AF
AVANT-GARDE BRONZE ME.,4V8
87946RETRACTOR, OUTER MIRROR, RH
main87946-12J90supersedes 87946-12J80iNKE165,NRE160,NZE16#..4D..(HBD,X); NKE165,NZE16#,ZRE162..G,HBDG,S; NKE165,NZE16#..5D..(HBD,X); NRE160201204-201503
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
main87961-12J90supersedes 87961-52D50iNKE165,NRE160,NZE16#..4D..(HBD,X); NKE165,NZE16#,ZRE162..G,HBDG,LXL,S; NKE165,NZE16#..5D..(HBD,X); NRE160201204-201503
87966RETRACTOR, OUTER MIRROR, LH
main87966-12J90supersedes 87966-12J80iNKE165,NRE160,NZE16#..4D..(HBD,X); NKE165,NZE16#,ZRE162..G,HBDG,S; NKE165,NZE16#..5D..(HBD,X); NRE160201204-201503
9017906146
main90179-06146
14 parts on this diagram · 2 diagrams in section
MIRROR for Toyota COROLLA AXIO/FIELDER
This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota COROLLA AXIO/FIELDER. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY INNER REAR VIEW, NO.2, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
