Toyota COROLLA AXIO/FIELDER — MIRROR

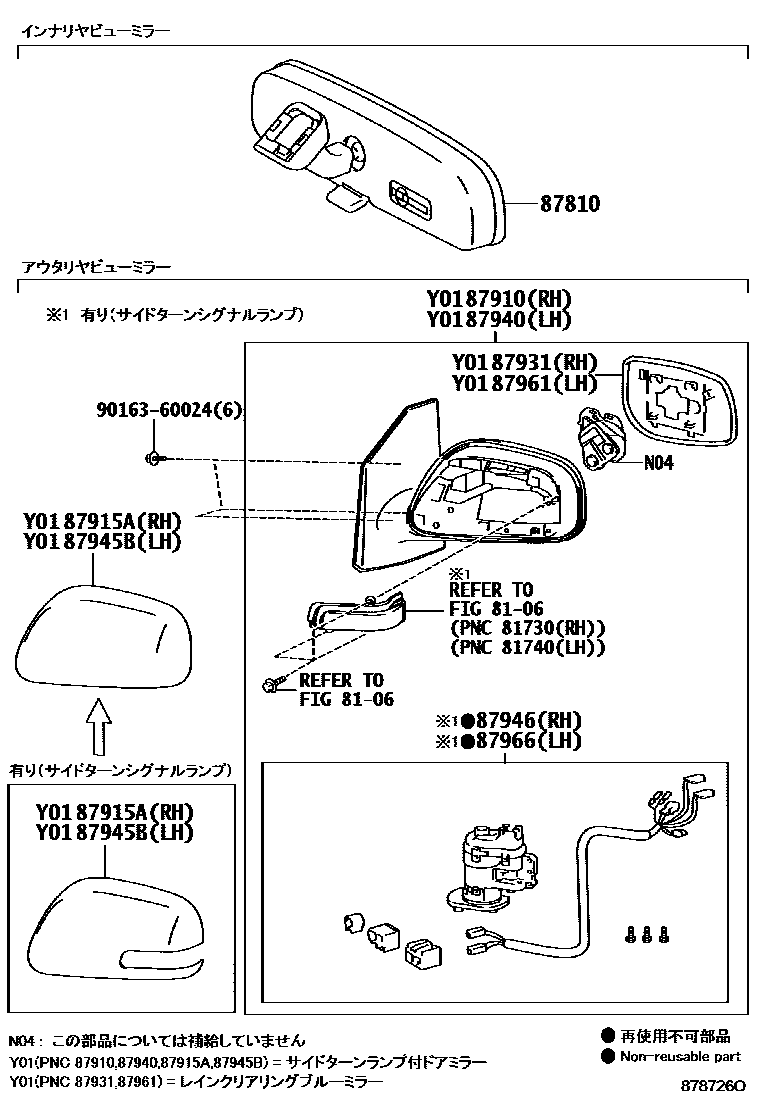

Parts diagram

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-52040i200609-200701

main87810-52041i200701-200810

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-12B90i200810-201204

main87910-12B80supersedes 87910-12C00i200810-200910

87915ACOVER, OUTER MIRROR, RH

main87915-12070-A0i200609-200810

main87915-12070-A1i200910-201204

main87915-12070-B0i200609-200810

main87915-12070-B1i200609-200810

main87915-12070-C0i200910-201204

main87915-12070-D0supersedes 87915-33010-D0i200810-201204

main87915-12070-D5i200910-201204

main87915-12070-E0i200609-200810

main87915-12070-E1i200609-200810

main87915-12070-E3supersedes 87915-33010-E2i200810-201204

main87915-12070-E4i200910-201204

main87915-12070-F0supersedes 87915-33010-F0i200810-201204

main87915-12070-G0i200609-200810

main87915-12070-J0supersedes 87915-33010-J3i200910-201204

main87915-12070-J1i200609-200810

main87915-12070-J6i201106-201204

main87915-12070-J7supersedes 87915-33010-J6i200810-201204

main87915-12080-A1i200609-200810

main87915-12090-C1i201005-201204

main87915-33010-A0i200810-200910

main87915-33010-A1i200810-200910

main87915-33010-B1i200609-200810

main87915-33010-B3i200810-200910

main87915-33010-B4i200910-201204

main87915-33010-C1i200810-200910

main87915-33010-D4i200810-201204

main87915-33010-E0i200609-200810

main87915-33010-E3i200810-200910

main87915-33010-G1i200609-200810

main87915-33010-J3i200609-200810

main87915-33010-J8i200804-200810

main87915-12050i200810-201204

main87915-12070-J8i201106-201204

87931OUTER MIRROR, RH

main87931-12B90i200910

main87931-12B80i200810

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12B90i200609-200810

main87940-12C30supersedes 87940-12C00i200810-200910

87945BCOVER, OUTER MIRROR, LH

main87945-12070-A0i200609-200810

main87945-12070-A1i200910-201204

main87945-12070-B0i200810-201204

main87945-12070-B1i200609-200810

main87945-12070-C0i200910-201204

main87945-12070-D0supersedes 87945-33010-D0i200609-200810

main87945-12070-D5i200810-201204

main87945-12070-E0i200609-200810

main87945-12070-E1i200609-200810

main87945-12070-E3supersedes 87945-33010-E2i200810-201204

main87945-12070-E4i200810-201204

main87945-12070-F0supersedes 87945-33010-F0i200810-201204

main87945-12070-G0i200609-200810

main87945-12070-J0supersedes 87945-33010-J3i200609-200810

main87945-12070-J1i200609-200810

main87945-12070-J6i201106-201204

main87945-12070-J7supersedes 87945-33010-J6i200810-201204

main87945-12080-A1i200609-200810

main87945-12090-C1i201005-201204

main87945-33010-A0i200810-200910

main87945-33010-A1i200810-201204

main87945-33010-B1i200609-200810

main87945-33010-B3i200609-200810

main87945-33010-B4i200910-201204

main87945-33010-C1i200810-201204

main87945-33010-D4i200810-201204

main87945-33010-E0i200609-200810

main87945-33010-E3i200810-201204

main87945-33010-G1i200609-200810

main87945-33010-J3i200609-200810

main87945-33010-J8i200804-200810

main87945-12050i200910-201204

main87945-12070-J8i201106-201204

87946RETRACTOR, OUTER MIRROR, RH

main87946-12B90i200609-200810

87961MIRROR OUTER, LH

main87961-12B90i200910

main87961-12C30supersedes 87961-12C00i200810

87966RETRACTOR, OUTER MIRROR, LH

main87966-12B90i200910-201204

9016360024

main90163-60024

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA AXIO/FIELDER

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota COROLLA AXIO/FIELDER. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
