Toyota COROLLA AXIO/FIELDER — METER

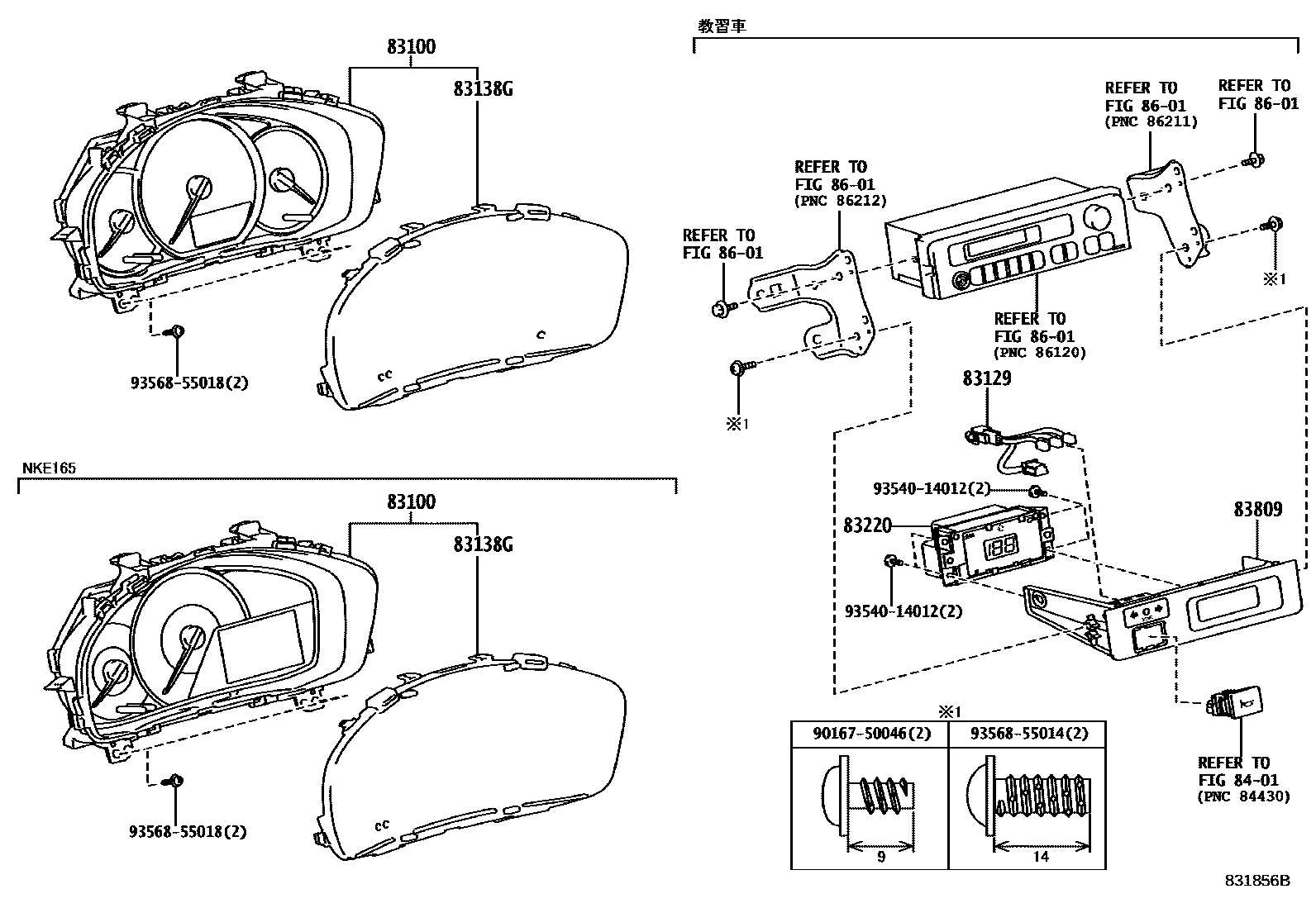

Parts diagram

83100METER ASSY, COMBINATION

main83800-12W50i201204-201307

main83800-12W60i201308-201503

main83800-12W70i201204-201307

main83800-12W71i201308-201503

main83800-12W80i201204-201307

main83800-12W81i201308-201503

main83800-12W90i201204-201308

main83800-12W91i201309-201503

main83800-12Y10i201307-201503

main83800-12Y20i201307-201503

main83800-12Z00i201503-201710

main83800-12Z20i201503-201710

main83800-12Z30i201503-201710

main83800-12Z40i201503-201710

main83800-12Z50i201503-201710

main83800-1AC00i202403

main83800-1AC40i202403

main83800-1AL00i201710-201909

main83800-1AL10i201710-201909

main83800-1AL20i201710-201908

main83800-1AL50i201710-201909

main83800-1AL60i201710-201909

main83800-1AL61i201910-202009

main83800-1AL70i201710-201909

main83800-1AL71i201910-202009

main83800-1AS40i202403

main83800-1AS50i202403

main83800-1AT00i201909

main83800-1AT10i201909-202403

main83800-1AV20i202009-202109

main83800-1AV21i202109-202403

main83800-1AV30i202009-202109

main83800-1AV31i202109-202403

main83800-12X00supersedes 83800-12X11i201212-201307

main83800-12X01supersedes 83800-12X11i201308-201503

main83800-1AB70i201604-201710

main83800-1AB80i201604-201710

main83800-1AL30i201710-201908

main83800-1AL40supersedes 83800-12X11i201710-201908

main83800-1AT20i202009-202109

main83800-1AT21i202208-202403

main83800-1AT30i201909-202009

main83800-1AT31i202109-202208

main83800-1AT40i201909-202009

83129WIRE, METER

main82144-12110i202009

83138GGLASS, COMBINATION METER

main83852-12W50i201204-201503

main83852-12W90i201710-201908

main83852-12X10i201204-201503

main83852-12Y10i201307-201503

83220SPEEDOMETER ASSY

main83220-43110i201802-202009

83809METER SUB-ASSY, COMBINATION

main83809-12020i201802-202009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

9016750046

main90167-50046

9354014012

main93540-14012

9356855014

main93568-55014

9356855018

main93568-55018

11 parts on this diagram · 1 diagram in section

METER for Toyota COROLLA AXIO/FIELDER

This section contains 11 genuine Toyota parts for the METER system of the Toyota COROLLA AXIO/FIELDER. Key components include: METER ASSY, COMBINATION, WIRE, METER, GLASS, COMBINATION METER, SPEEDOMETER ASSY, METER SUB-ASSY, COMBINATION.
