Toyota COROLLA AXIO/FIELDER — METER

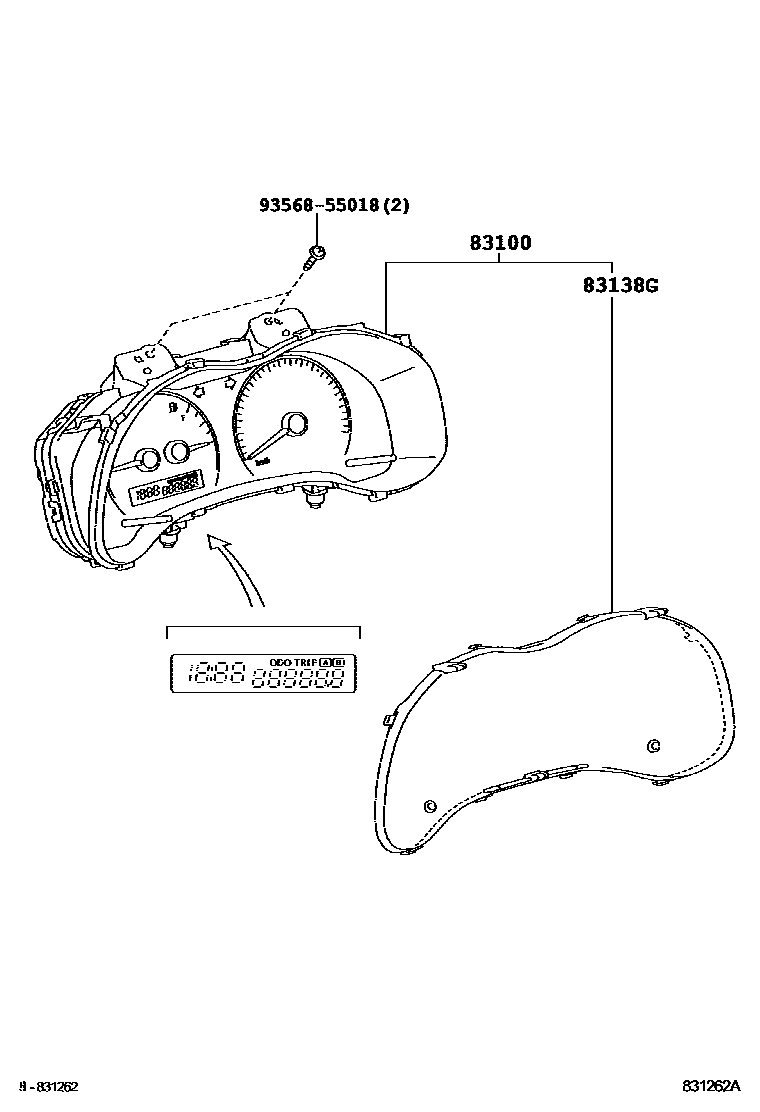

Parts diagram

83100METER ASSY, COMBINATION

main83800-12F60supersedes 83800-12M60i200609-200810

main83800-12F61i200810-201003

main83800-12F70supersedes 83800-12M70i200609-200810

main83800-12F71i200810-201003

main83800-12G00i200609-200810

main83800-12G01i200810-201004

main83800-12M30i201004

main83800-12M40i201004

main83800-12M50i201004

main83800-12F50i200609-200810

main83800-12F51i200810-201004

main83800-12M20i201004

83138GGLASS, COMBINATION METER

main83852-12F50i200810

main83852-12F60i200609-200810

9356855018

main93568-55018

3 parts on this diagram · 2 diagrams in section

METER for Toyota COROLLA AXIO/FIELDER

This section contains 3 genuine Toyota parts for the METER system of the Toyota COROLLA AXIO/FIELDER. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
