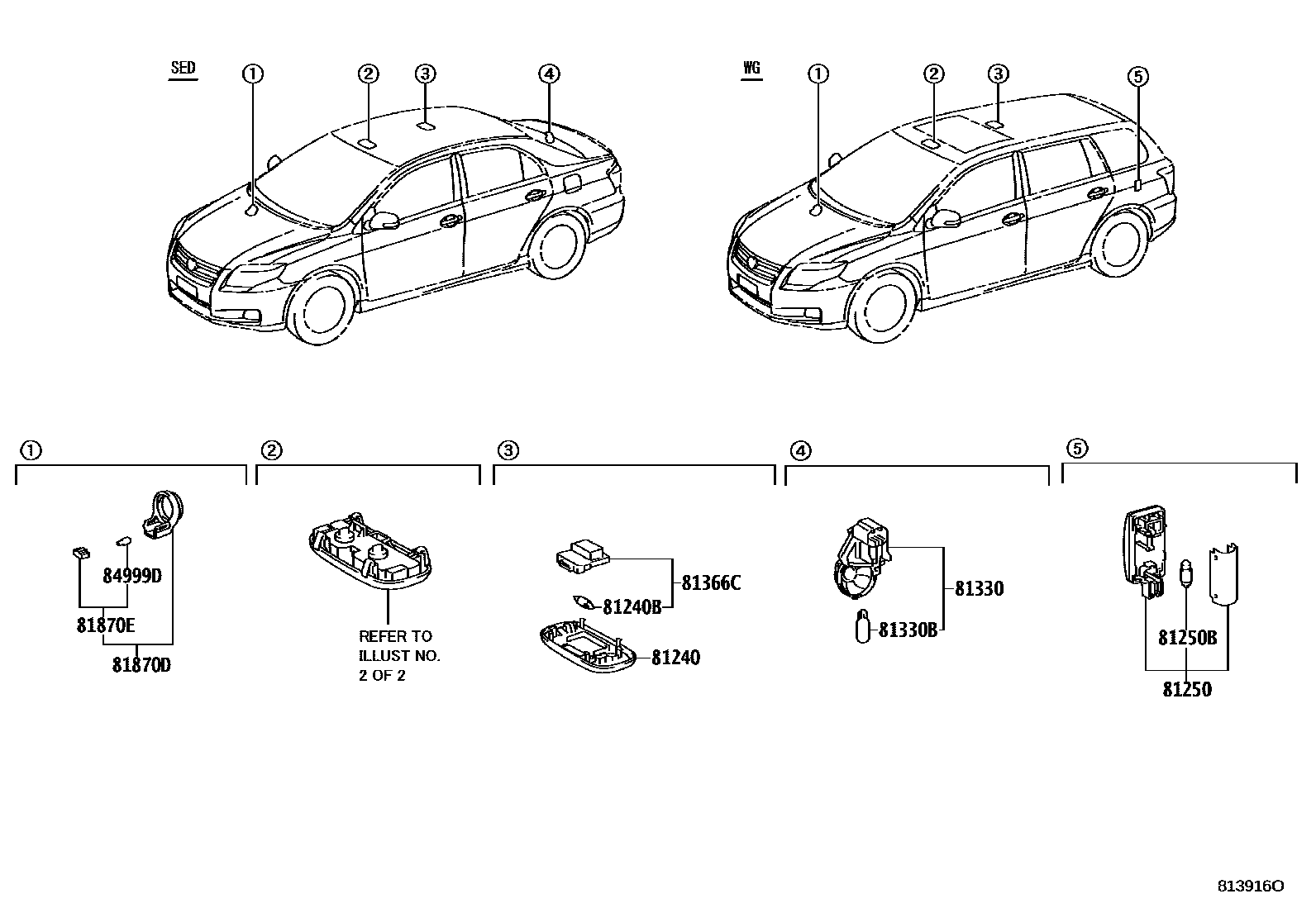

Toyota COROLLA AXIO/FIELDER — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1i200810-201204

LT.GRAY,TRIM1#

main81240-52040-E0i200609-200810

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200609-200810

81250LAMP ASSY, ROOM, NO.2

main81250-48010i200609-200810

81250BBULB, ROOM LAMP, NO.2

main99132-13050i200609-200810

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020i200810

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i200609-200810

81366CBASE, ROOM LAMP SWITCH

main81366-68010i200810-201204

81870DLAMP ASSY, KEY CYLINDER

main81870-42020i200609-200810

81870EBULB, KEY CYLINDER LAMP

main90010-01030i200609-200810

84999DSOCKET, KEY CYLINDER LAMP

main84999-10250i200609-200810

10 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota COROLLA AXIO/FIELDER

This section contains 17 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA AXIO/FIELDER. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2, LAMP ASSY, MAP.
