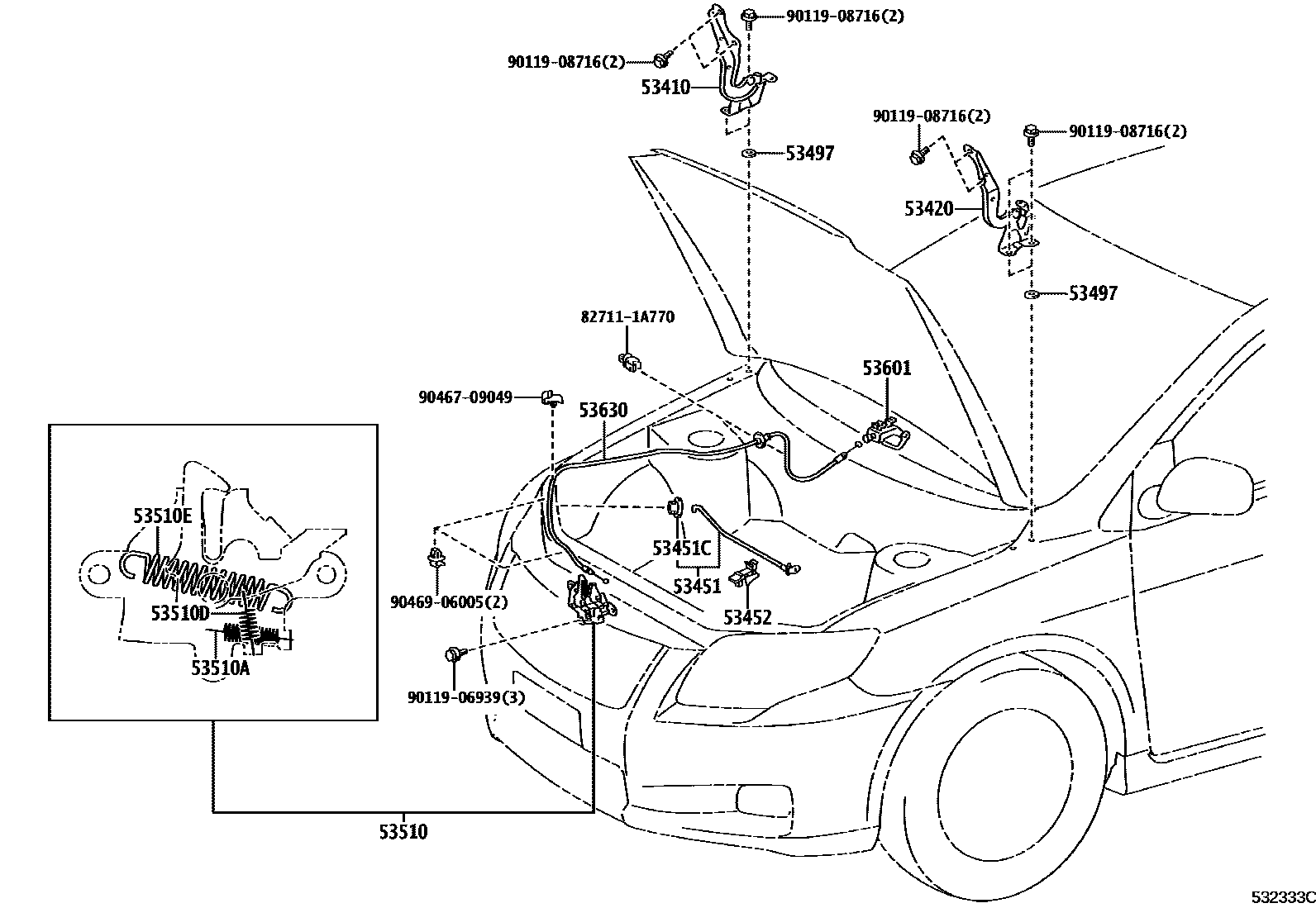

Toyota COROLLA AXIO/FIELDER — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12550i200609-200810

53420HINGE ASSY, HOOD, LH

main53420-12520i200609-200810

53451ROD, HOOD SUPPORT

main53440-12090i200609-200810

53451CCLIP, HOOD SUPPORT ROD

main53454-52010i200609-200810

53452HOLDER, HOOD STAY

main53452-12080i200609-200810

53497PAD, HOOD HINGE, NO.1

main53497-42010×4i200609-200810

53510LOCK ASSY, HOOD

main53510-12A10i200609-200810

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055i200609-200810

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063i200609-200810

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067i200609-200810

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3i200609-200810

DK.GRAY,TRIM1#; DK.GRAY,TRIM12

main53601-52010-B9i200609-200810

GRAY,TRIM1#; GRAY,TRIM13

main53601-52010-E4i200810-201204

GREGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12590i200609-200810

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906939

main90119-06939

9011908716

main90119-08716

9046709049

main90467-09049

9046906005

main90469-06005

17 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota COROLLA AXIO/FIELDER

This section contains 17 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota COROLLA AXIO/FIELDER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, CLIP, HOOD SUPPORT ROD, HOLDER, HOOD STAY.
