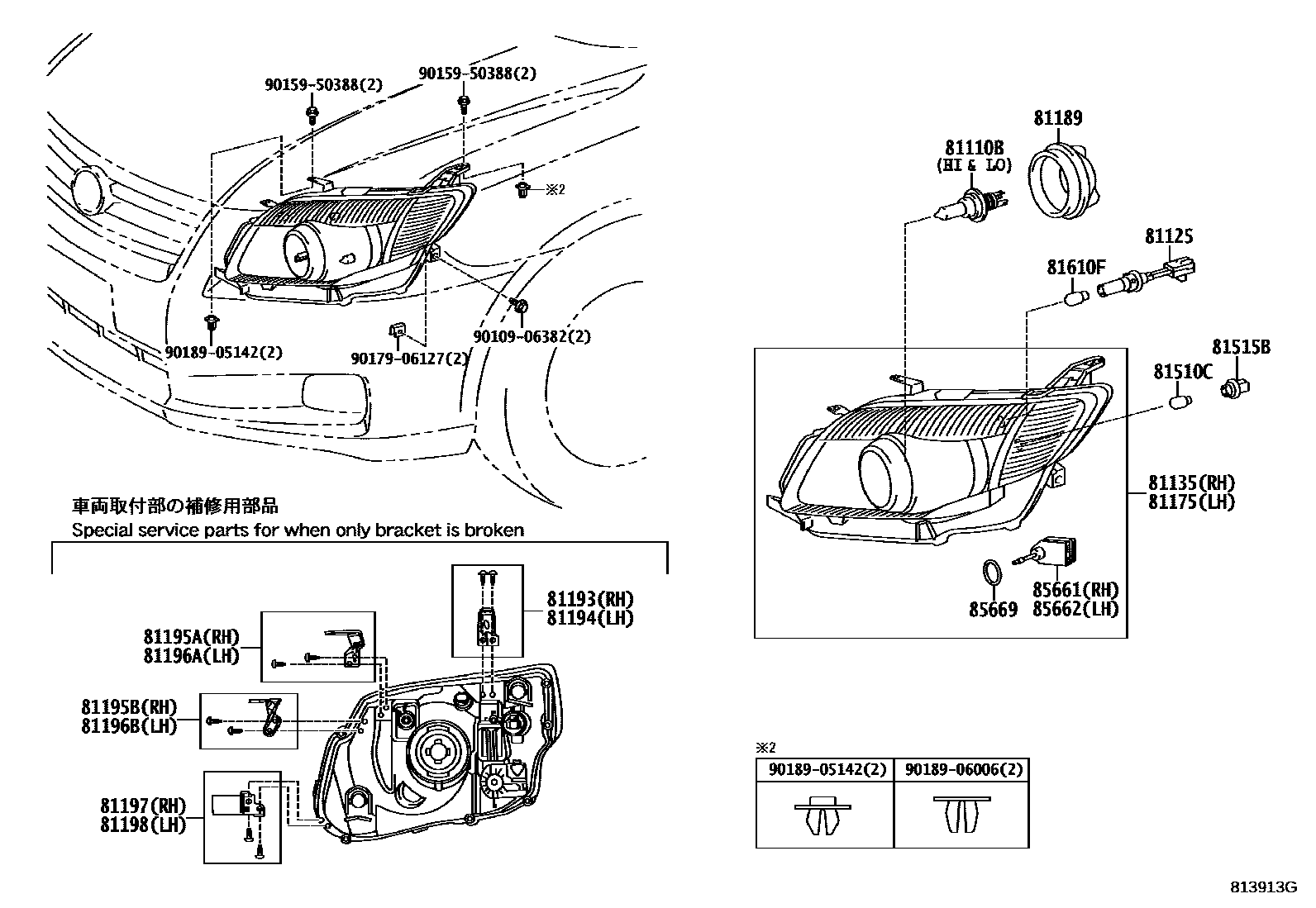

Toyota COROLLA AXIO/FIELDER — HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
81125CORD, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81175UNIT ASSY, HEADLAMP, LH
81189COVER, HEADLAMP
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81196BRETAINER, LH HEADLAMP PROTECTOR, LOWER RH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9010906382
main90109-06382
9015950388
main90159-50388
9017906127
main90179-06127
9018905142
main90189-05142
9018906006
main90189-06006
24 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota COROLLA AXIO/FIELDER
This section contains 33 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA AXIO/FIELDER. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), BULB, DISCHARGE HEADLAMP.
