Toyota COROLLA AXIO/FIELDER — FUEL INJECTION SYSTEM

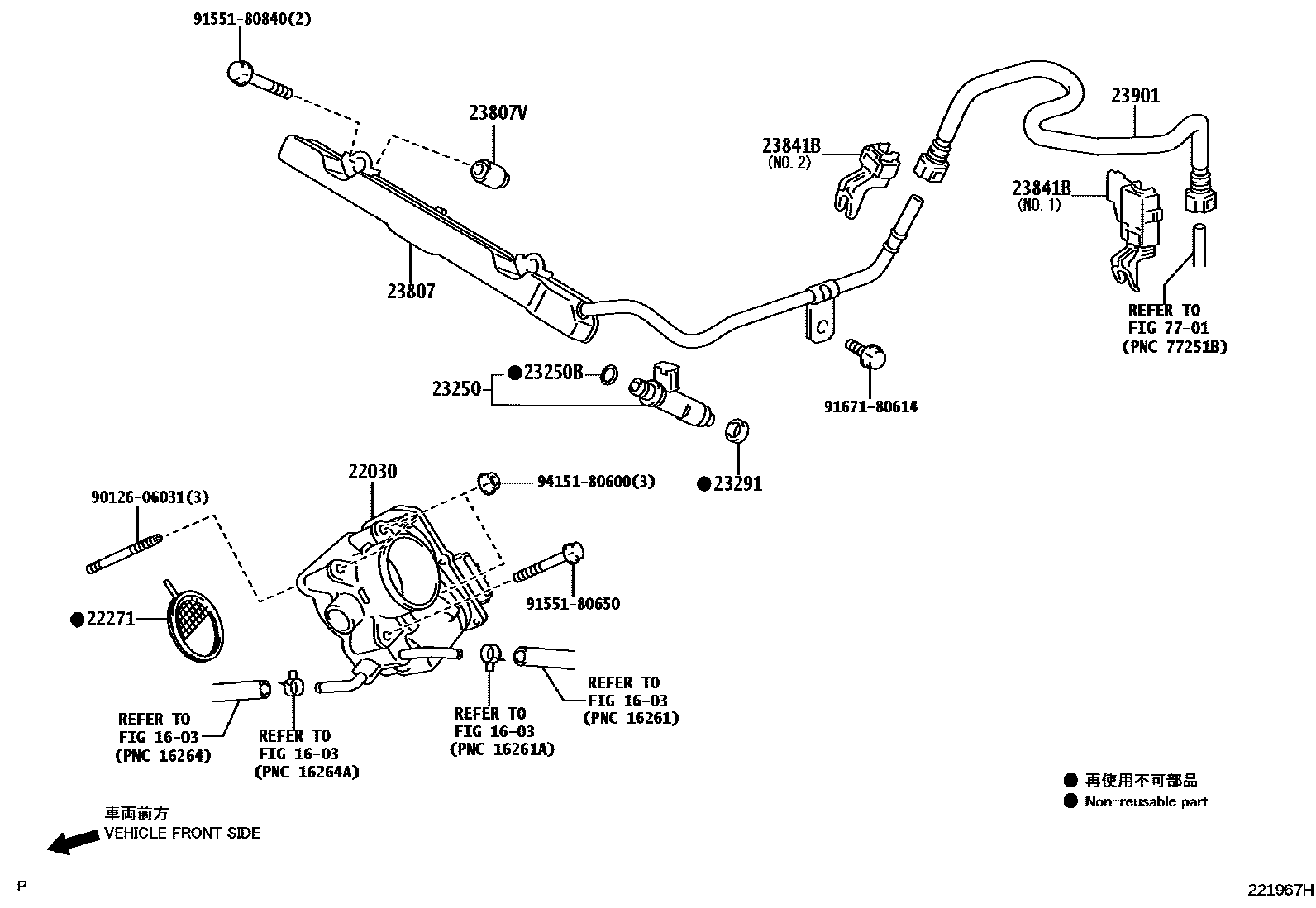

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i200810

22271GASKET, THROTTLE BODY

main22271-21060i200609-200810

main22271-75031i200810

23250INJECTOR ASSY, FUEL

main23209-21040×4i200609-200810

main23209-39145×4i200609-200810

main23209-39146×4i200902

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i200609-200810

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i201107

main23291-28020×4i200902-201001

main23291-41010×4i200609-200810

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21030i200609-200810

main23814-37050i200609-200810

main23814-37051i201108

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i200609-200810

main23891-37010×2i200609-200810

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i200609-200810

main23841-21050i200705-200810

main23841-28010i200609-200704

main23841-36010i201012-201204

23901TUBE SUB-ASSY, FUEL

main23901-21170i200609-200810

main23901-37010i200810-201204

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

16 parts on this diagram · 3 diagrams in section

FUEL INJECTION SYSTEM for Toyota COROLLA AXIO/FIELDER

This section contains 28 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota COROLLA AXIO/FIELDER. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY, CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT.
