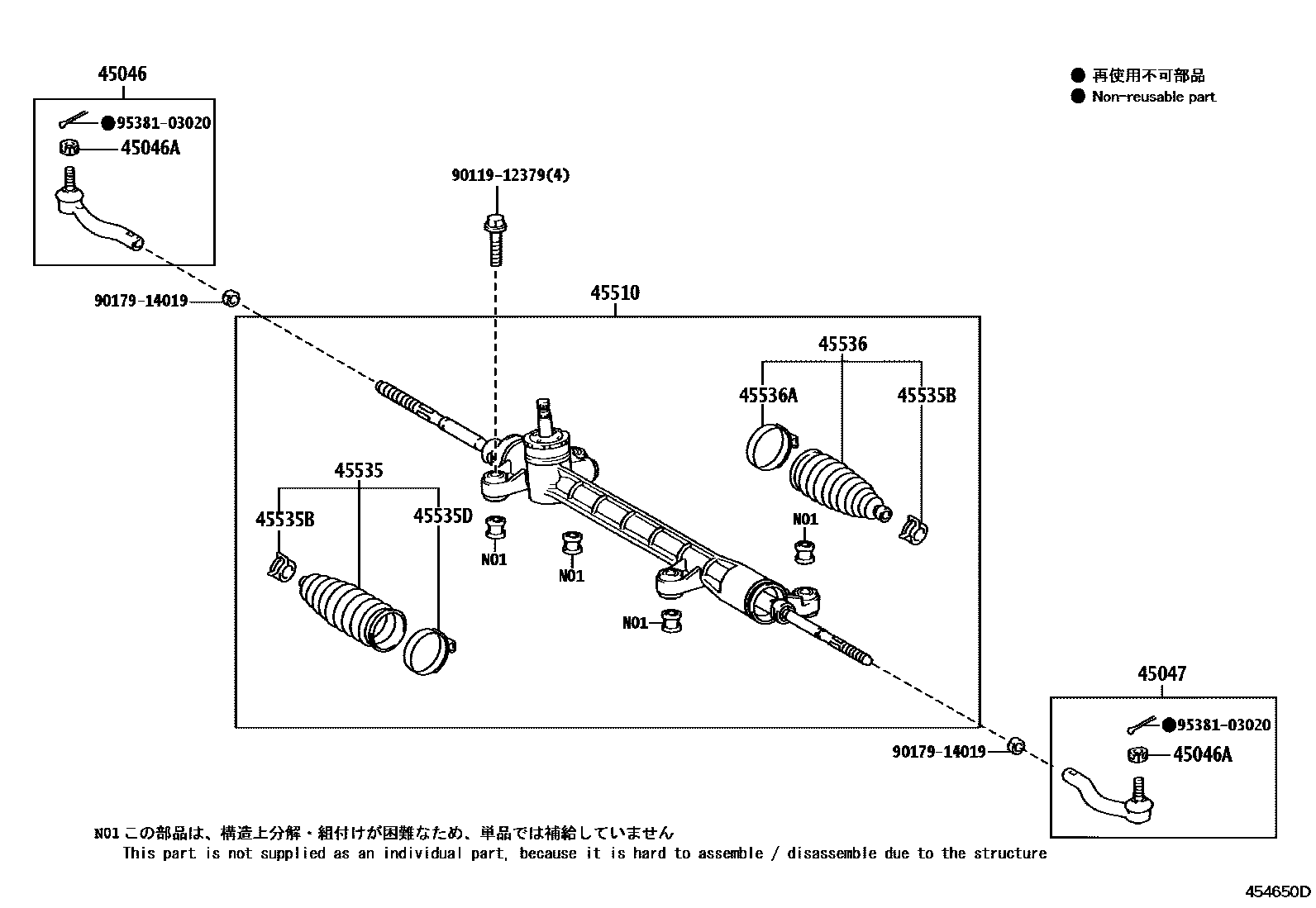

Toyota COROLLA AXIO/FIELDER — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-19265i200609-200810

main45046-59065i200810

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i200609-200810

45047END SUB-ASSY, TIE ROD, LH

main45046-59065i200810

main45047-19115i200810-201004

45510GEAR ASSY, STEERING

main45510-12410i200810-201005

main45510-12420i201005

main45510-12430i200609-200810

45535BOOT, STEERING RACK, NO.1

main45535-59025i200609-200810

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2i200609-200810

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010i200609-200810

45536BOOT, STEERING RACK, NO.2

main45535-59025i200609-200810

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010i200609-200810

9011912379

main90119-12379

9017914019

main90179-14019

9538103020

main95381-03020

12 parts on this diagram · 2 diagrams in section

FRONT STEERING GEAR & LINK for Toyota COROLLA AXIO/FIELDER

This section contains 14 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA AXIO/FIELDER. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
