Toyota COROLLA AXIO/FIELDER — FRONT FENDER APRON & DASH PANEL

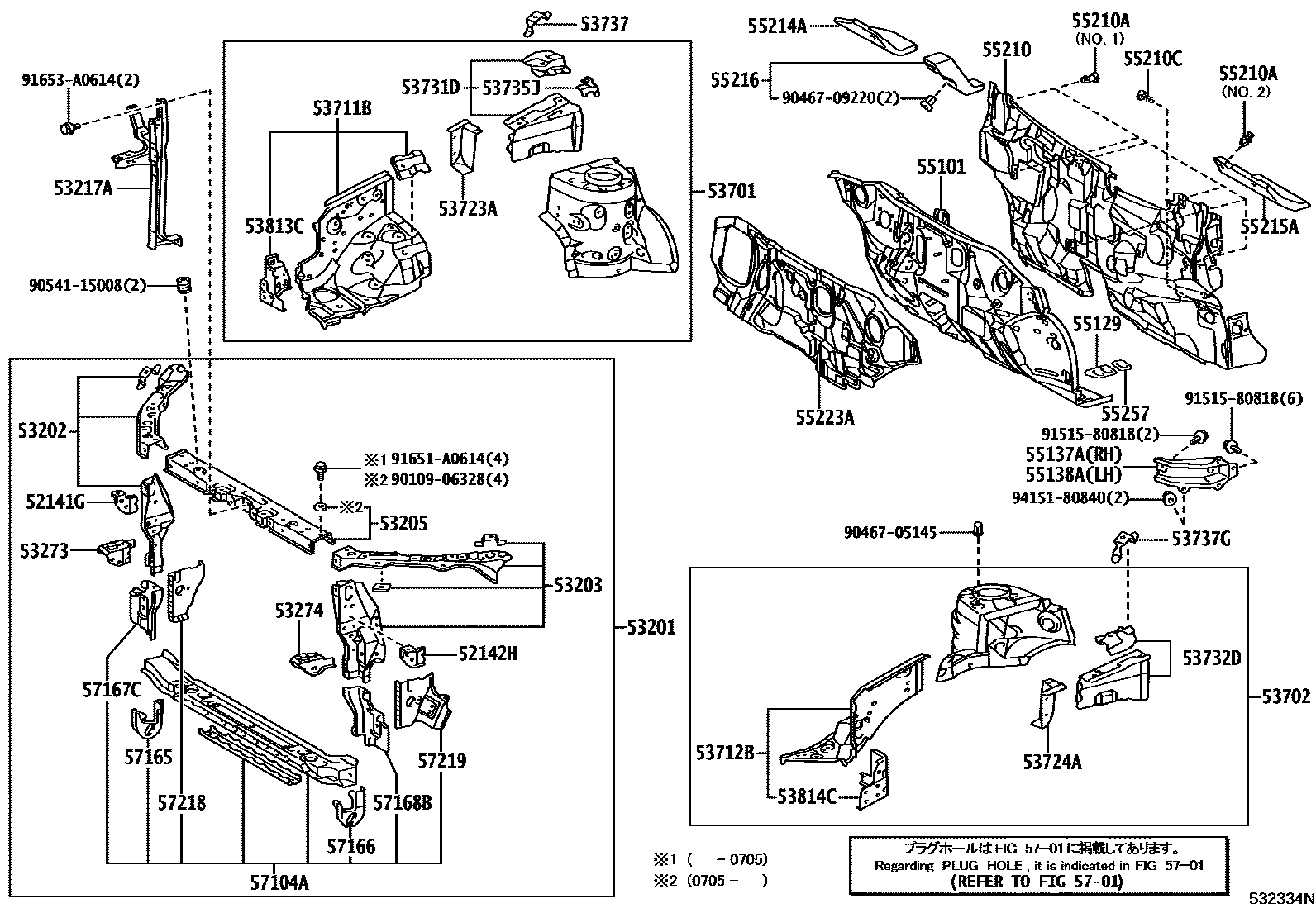

Parts diagram
52141GSTAY, FRONT BUMPER, RH
main52141-12540i200609-200810
52142HSTAY, FRONT BUMPER, LH
main52142-12460i200609-200810
53201SUPPORT SUB-ASSY, RADIATOR
main53201-12B20i200609-201204
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-12510i200609-200810
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-12460i200609-200810
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-12290i200609-200705
sub53205-12291
main53205-12291i200705-200810
53217ABRACE, HOOD LOCK SUPPORT
main53208-12530i200609-201204
main53208-13070i200810-201204
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
main53273-12120i200609-200810
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
main53274-12120i200609-200810
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-12995i200609-200810
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-12992i200609-200810
53711BAPRON, FRONT FENDER, FRONT RH
main53711-12908i200609-200810
53712BAPRON, FRONT FENDER, FRONT LH
main53712-12906i200609-200810
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
main53723-12080i200609-200810
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
main53724-12070i200609-201204
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-12903i200609-200810
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-12901i200609-200810
53735JPATCH, FRONT FENDER APRON, NO.5
main53735-12080i200609-200810
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
main53737-12090i200609-200810
53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH
main53737-12090i200609-201204
53813CEXTENSION, FRONT FENDER, RH
main53813-12120i200609-200810
53814CEXTENSION, FRONT FENDER, LH
main53814-12070i200609-201204
55101PANEL SUB-ASSY, DASH
main55101-12C60i200609-201204
main55101-12C70i200609-201204
main55101-12C90i200609-201204
main55101-13350i200609-201204
main55101-13360i200609-201204
main55101-13430i200609-201204
55129COVER, DASH PANEL HOLE
main55129-32030i200609-200810
main55139-32010i200609-200810
55137ABRACE, DASH TO FRAME, RH
main55137-12060i200609-200810
55138ABRACE, DASH TO FRAME, LH
main55138-12030i200609-200810
55210INSULATOR ASSY, DASH PANEL
main55210-12570i200609-200807
sub55210-12620
main55210-12620i200808-200810
55210ACLIP
main90467-11122i200609-200810
main90467-11127i200609-200810
55210CCLIP
main90467-08186-C0i200609-201204
BLACK
sub90467-08186
55214APAD, DASH PANEL INSULATOR, NO.2
main55214-12030i200609-200810
55215APAD, DASH PANEL INSULATOR, NO.3
main55215-12120i200609-200810
55216PAD, DASH PANEL INSULATOR, NO.4
main55216-12010i200609-200810
main55216-12020i200609-200810
55223AINSULATOR, DASH PANEL, OUTER
main55223-12180i200609-200810
55257COVER, DASH PANEL OPENING
main55257-32010i200609-200810
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-12280i200609-200810
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
main57165-12070i200609-200810
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
main57166-12020i200609-200810
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
main57167-12130i200609-200810
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
main57168-12130i200609-200810
57218GUSSET, FRONT SIDE MEMBER, NO.1
main57218-12030i200609-200810
57219GUSSET, FRONT SIDE MEMBER, NO.2
main57219-12030i200609-200810
9010906328
main90109-06328
9046705145
main90467-05145
9046709220
main90467-09220
9054115008
main90541-15008
9151580818
main91515-80818
91651A0614
main91651-A0614
91653A0614
main91653-A0614
9415180840
main94151-80840

50 parts on this diagram · 1 diagram in section
